Acura Truck
>>
2002
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Oxygen Sensor
Oxygen Sensor

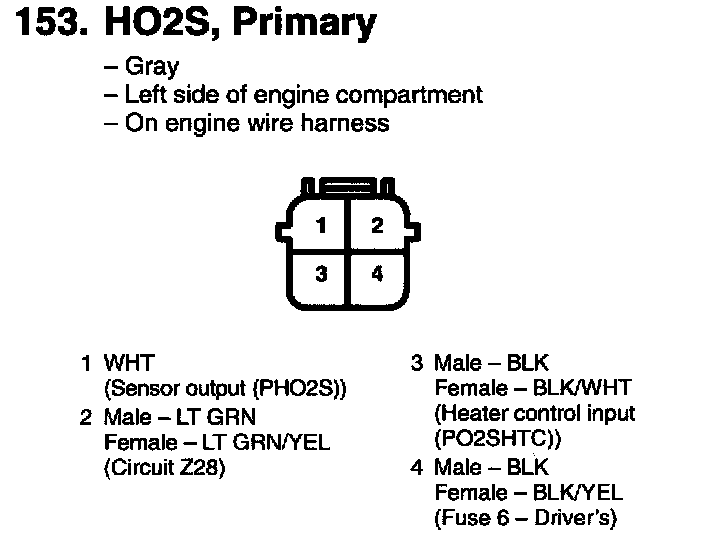

153. HO2S, Primary:

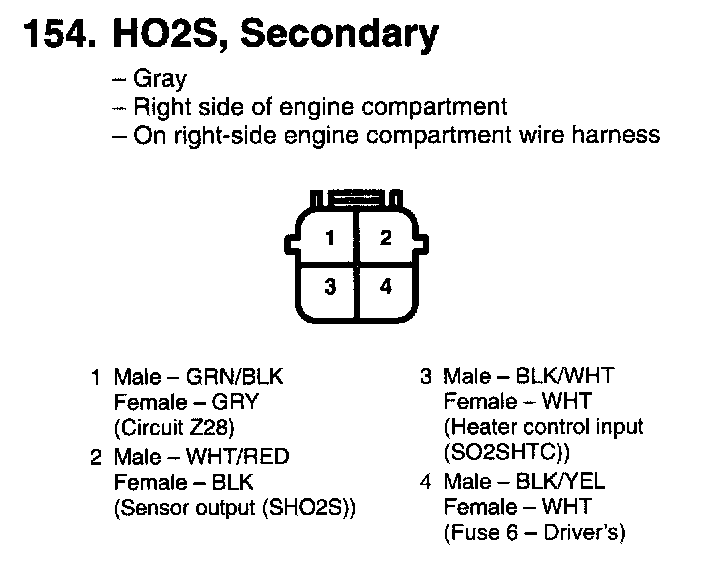

154. HO2S, Secondary:
