Acura Truck
>>
2003
>>
MDX V6-3471cc 3.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signal Lamp
Turn Signal Lamp

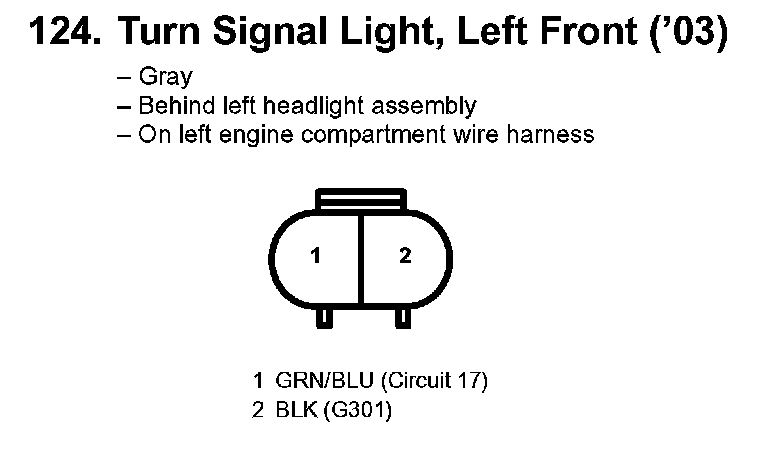

124. Turn Signal Light, Left Front:

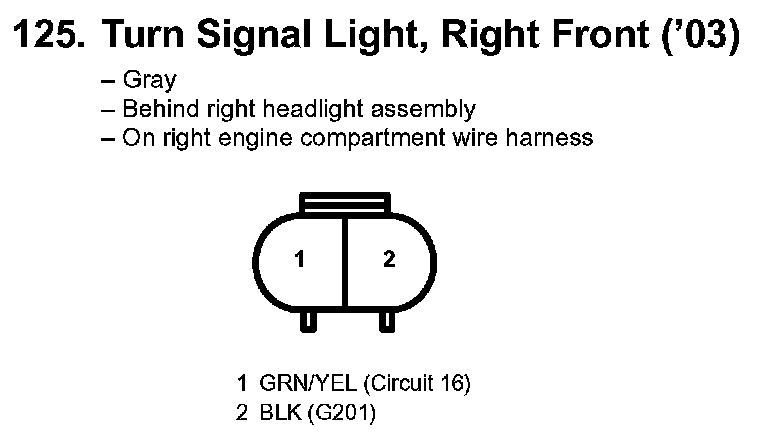

125. Turn Signal Light, Right Front:
