Component Tests and General Diagnostics

Cruise Control Input Test

1. Connect the Honda Diagnostic System (HDS) to the Data Link Connector (DLC).
2. Turn the ignition switch ON (II).

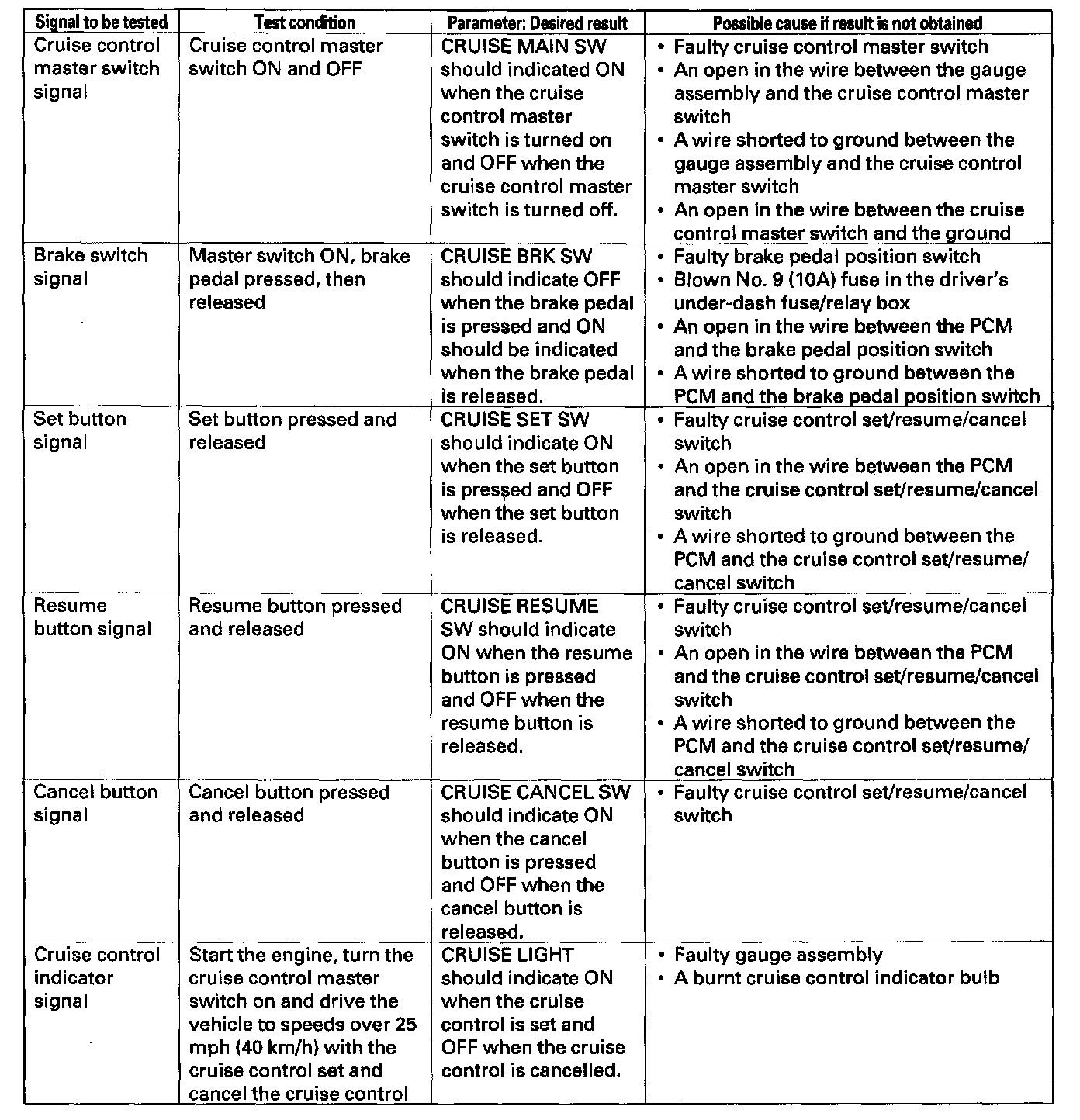

3. Perform the given tests while monitoring parameters in the PGM-FI DATA LIST.
