Right Front Damper Subharness
Right Front Damper Subharness

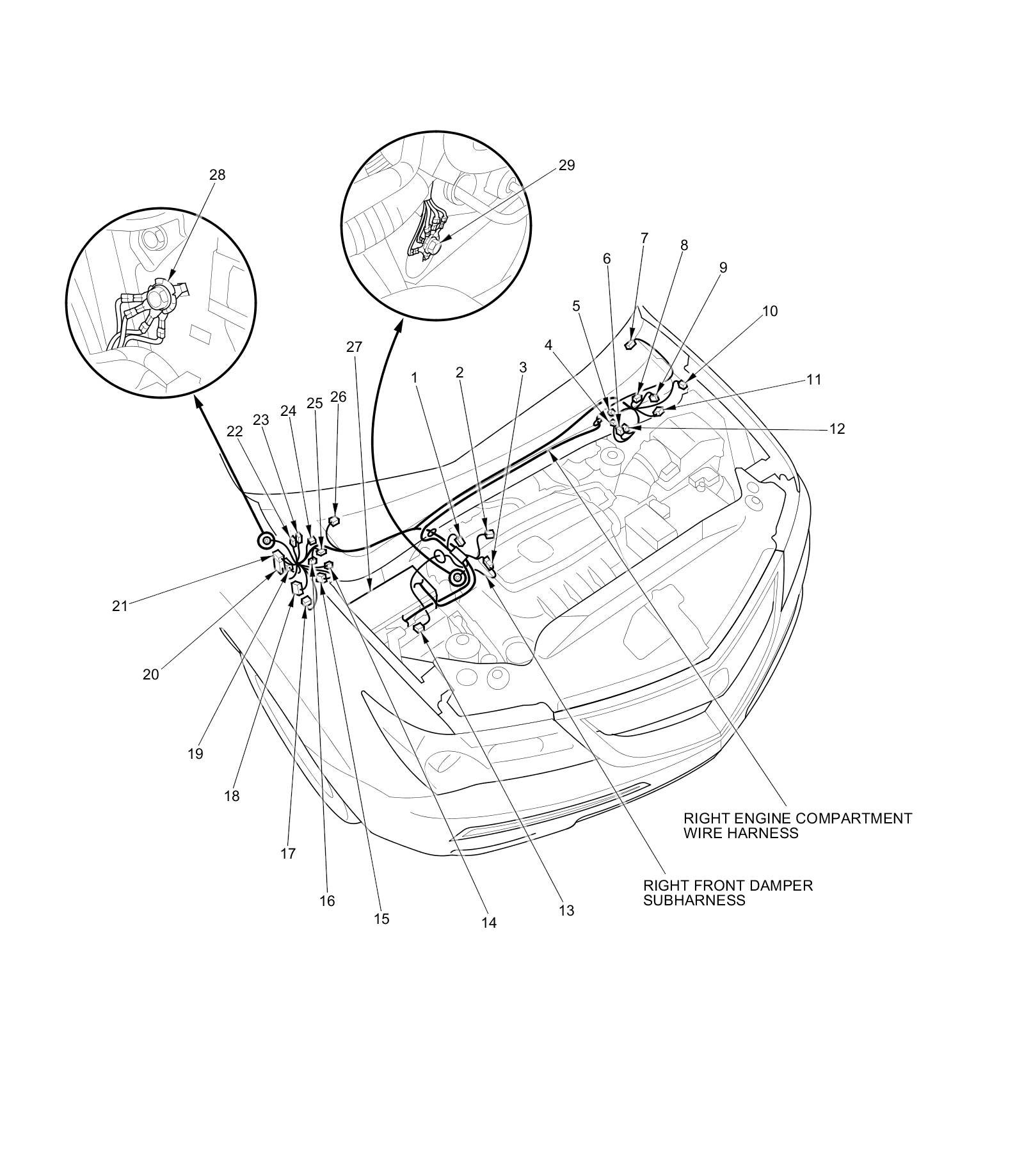

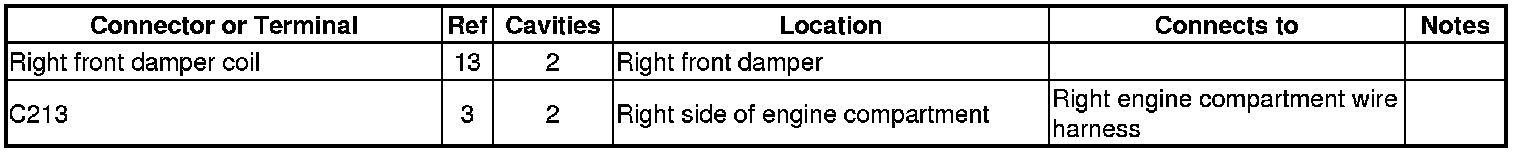

Connector and Harness Locations
Right Front Damper Subharness (With active damper system)
