Torque Specifications

Torque Specifications

NOTE
*Refer to the precautions and procedures for the bolts/nuts not indicated here.
*1: Parts to be tightened in particular orders.
*2: Follow the procedures closely for torque, sequence, and special steps.


Engine Electrical






Engine Mechanical

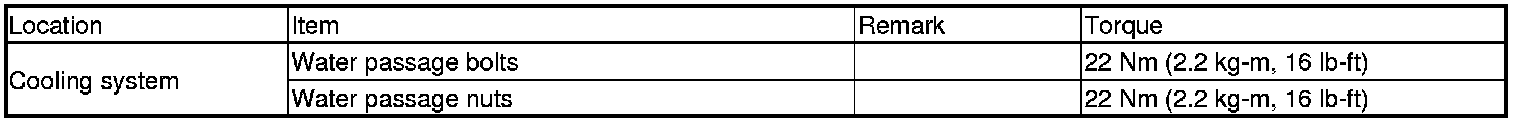

Engine Cooling






Fuel and Emissions

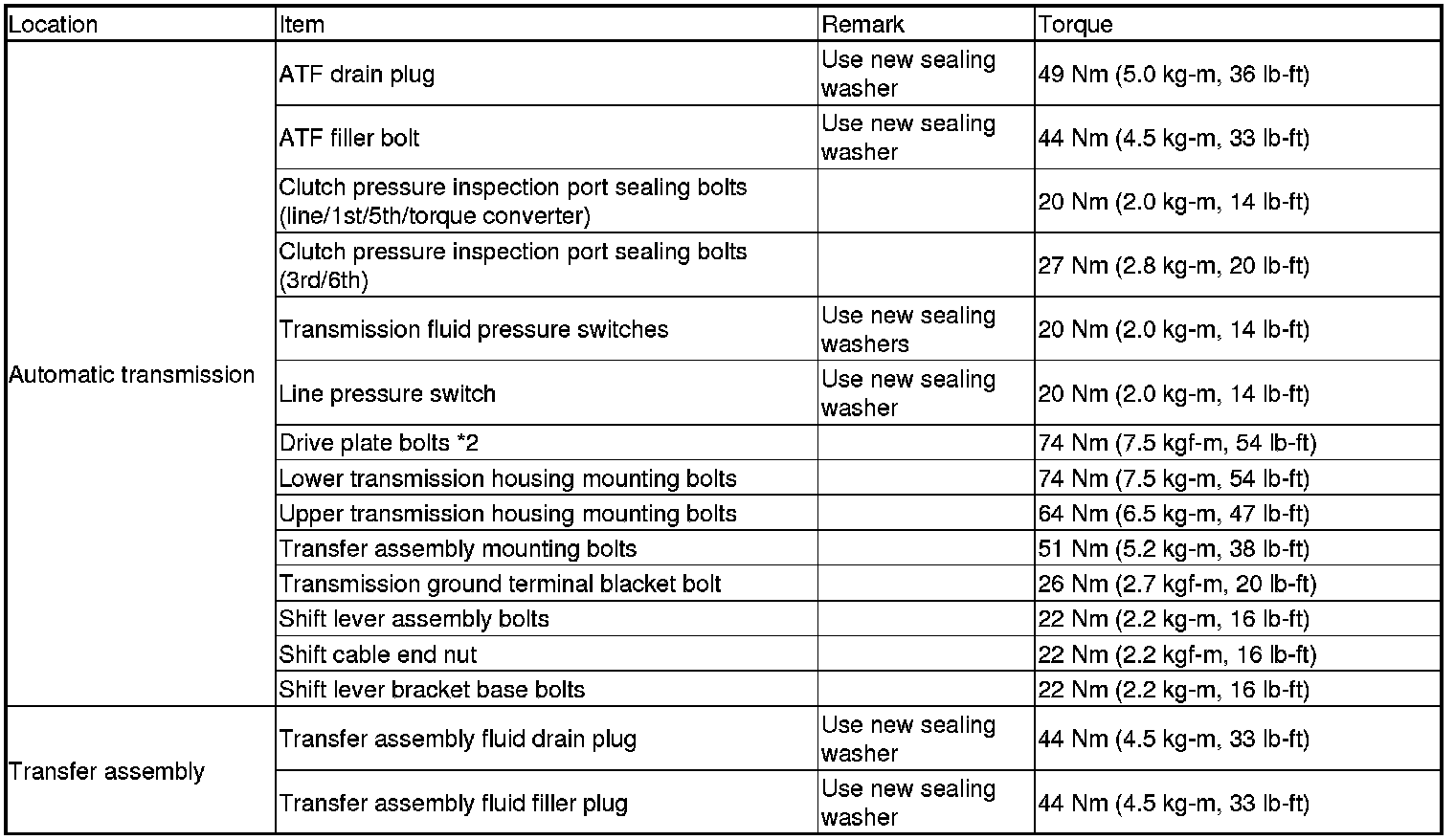

Automatic Transmission

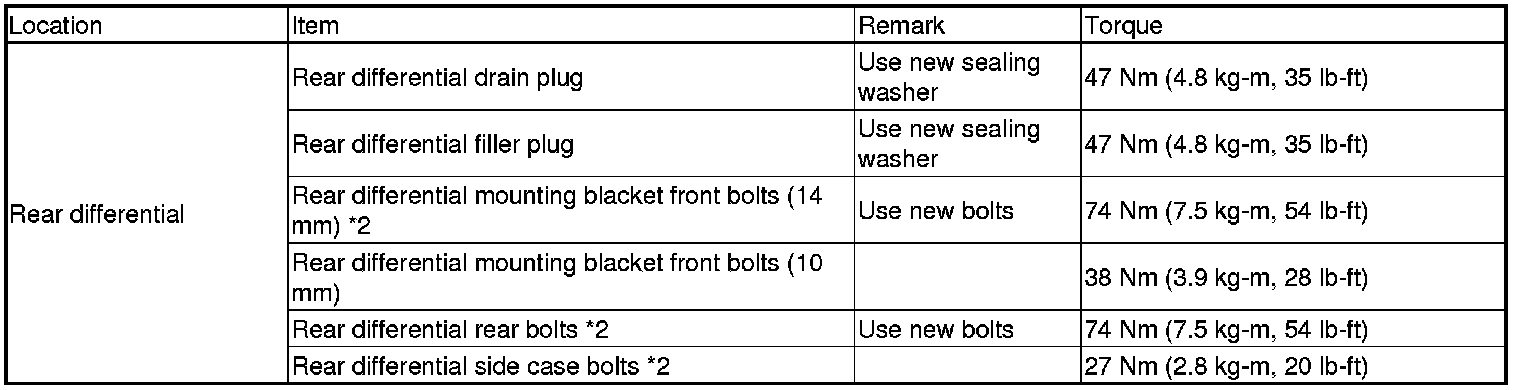

Rear Differential

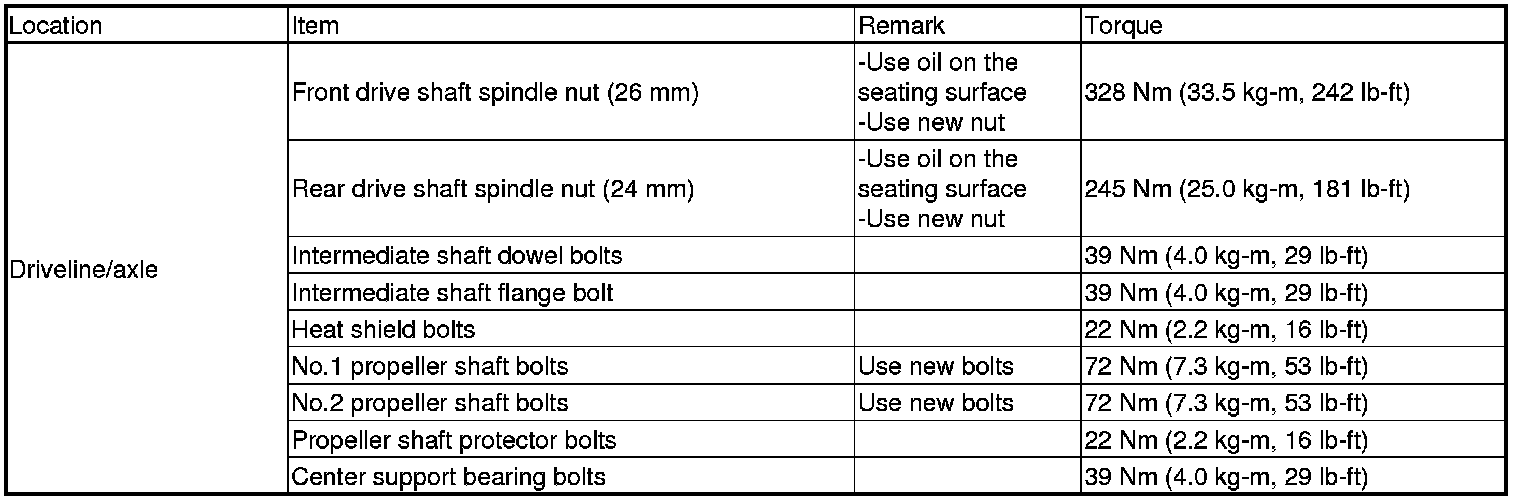

Driveline/Axle






Steering






Suspension

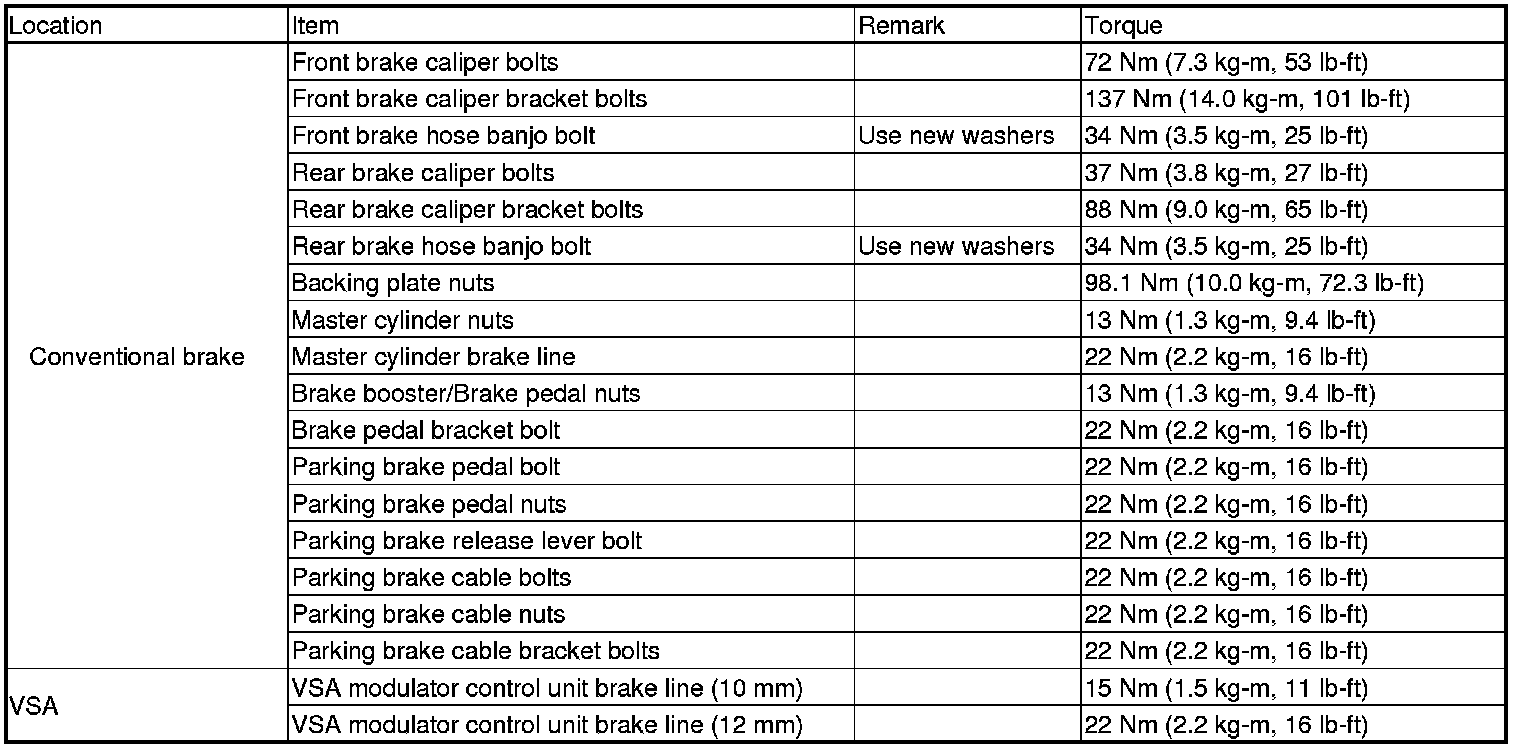

Brakes






Body

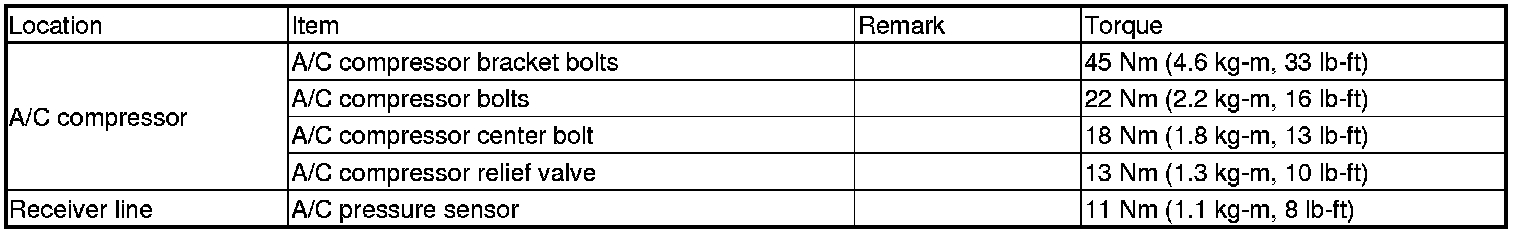

Heating, Ventilation, and Air Conditioning






Body Electrical






Driving Support
