Differential Vent Box: Service and Repair

Rear Differential Breather Box and Hose Replacement

1. Remove the cargo rear trim panel Interior Trim Removal/Installation - Cargo Area.

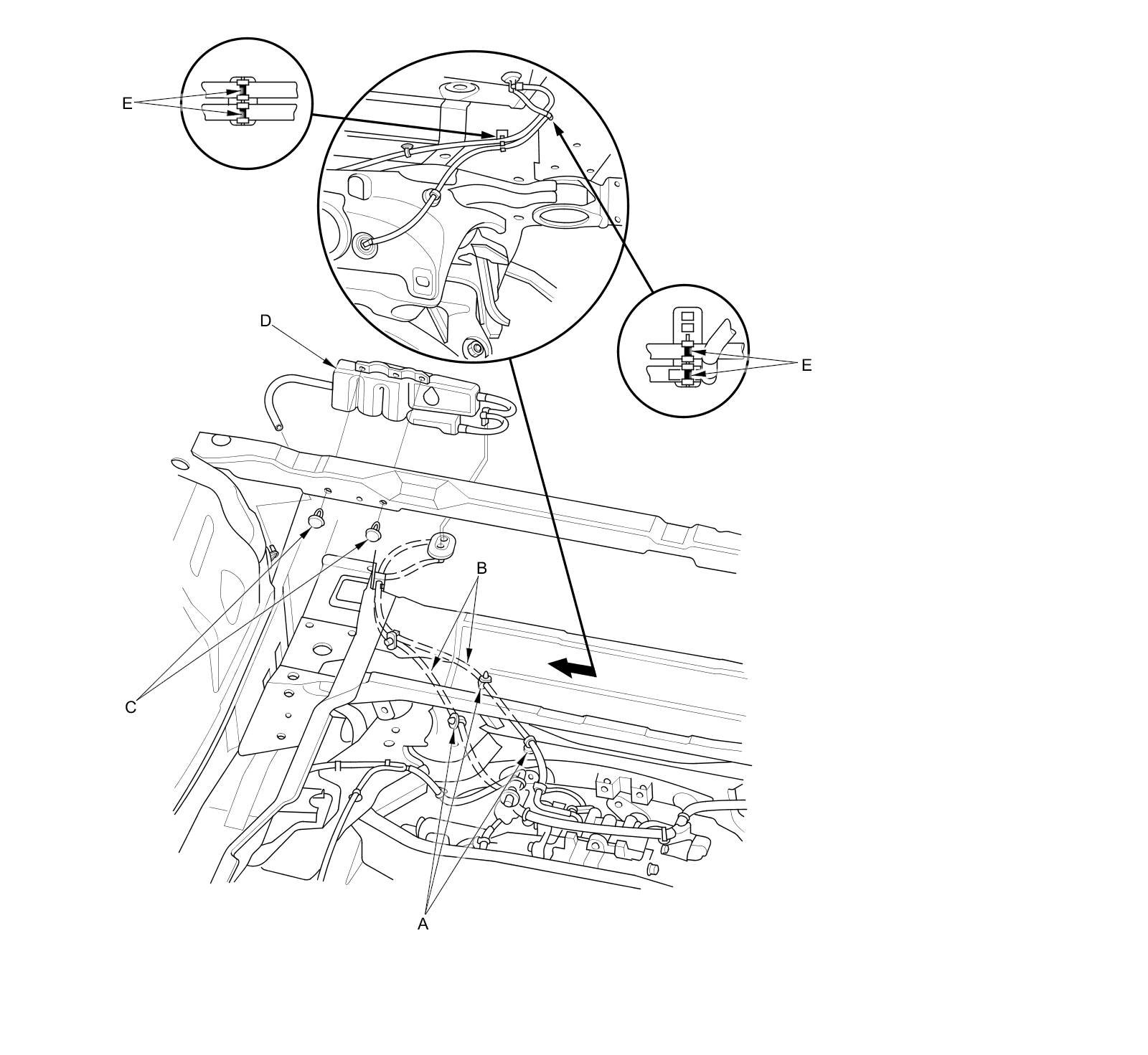

2. Remove the breather hose clips (A), then disconnect the breather hoses (B).





3. Remove the breather box clips (C) and the breather box (D).

4. Install the breather box, then connect the breather hoses and the breather hose clips.

5. Align the point marks (E) on the breather hoses as shown.

6. Make sure that all the hoses are properly routed, clipped into place, and not pinched.

7. Install the cargo rear trim panel Interior Trim Removal/Installation - Cargo Area.
