Headlamp Switch

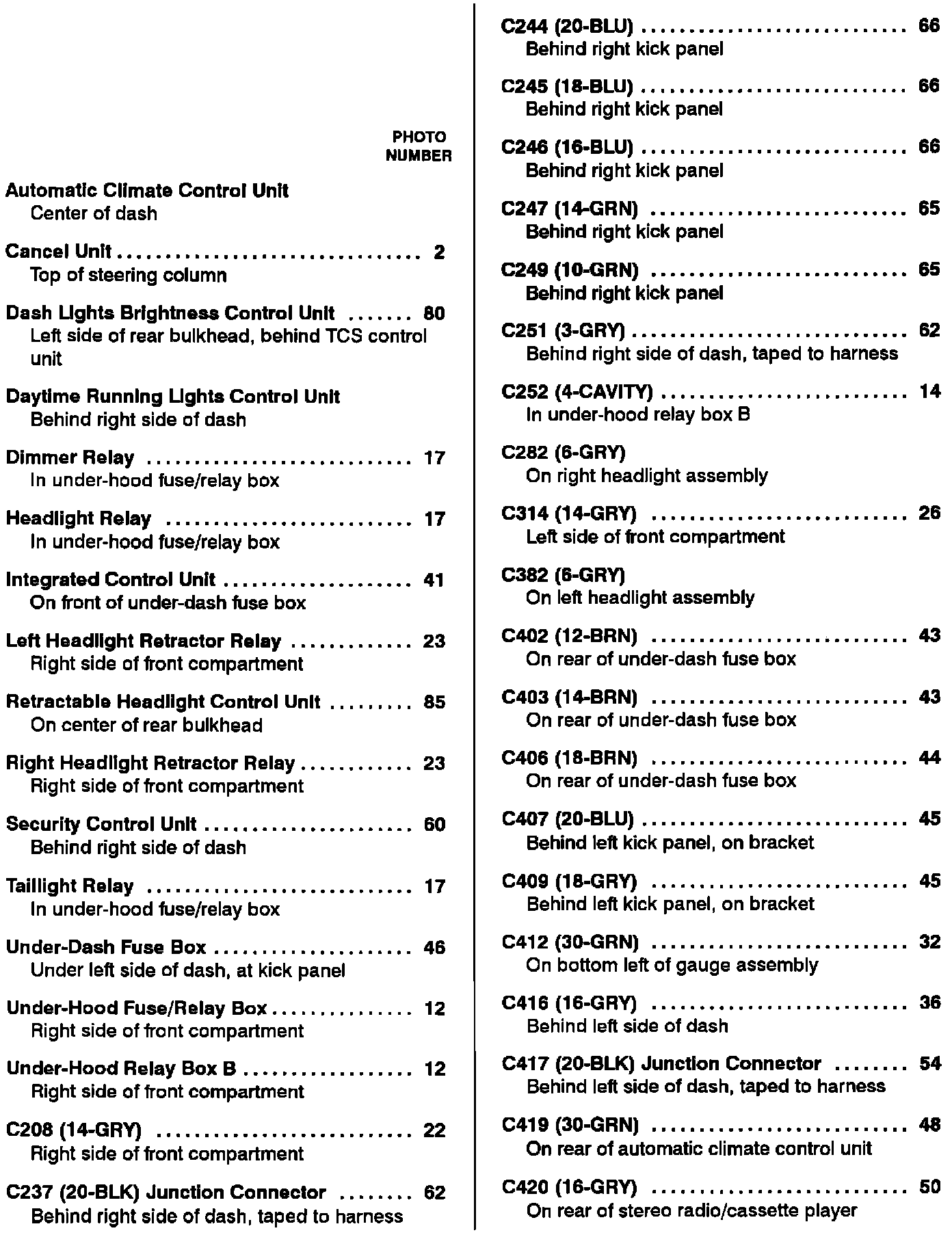

Headlight Switch: Component Location Index:

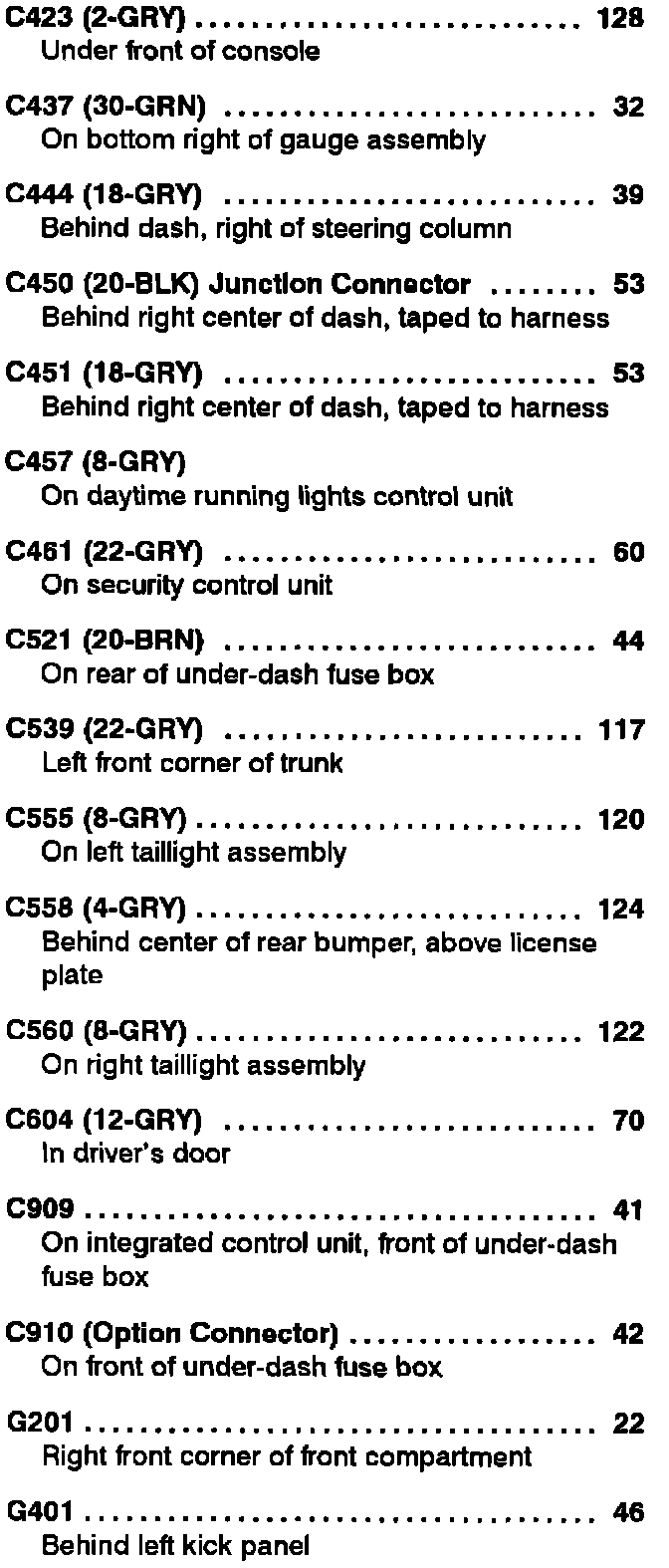

Headlight Switch: Component Location Index:
