Ground Distribution

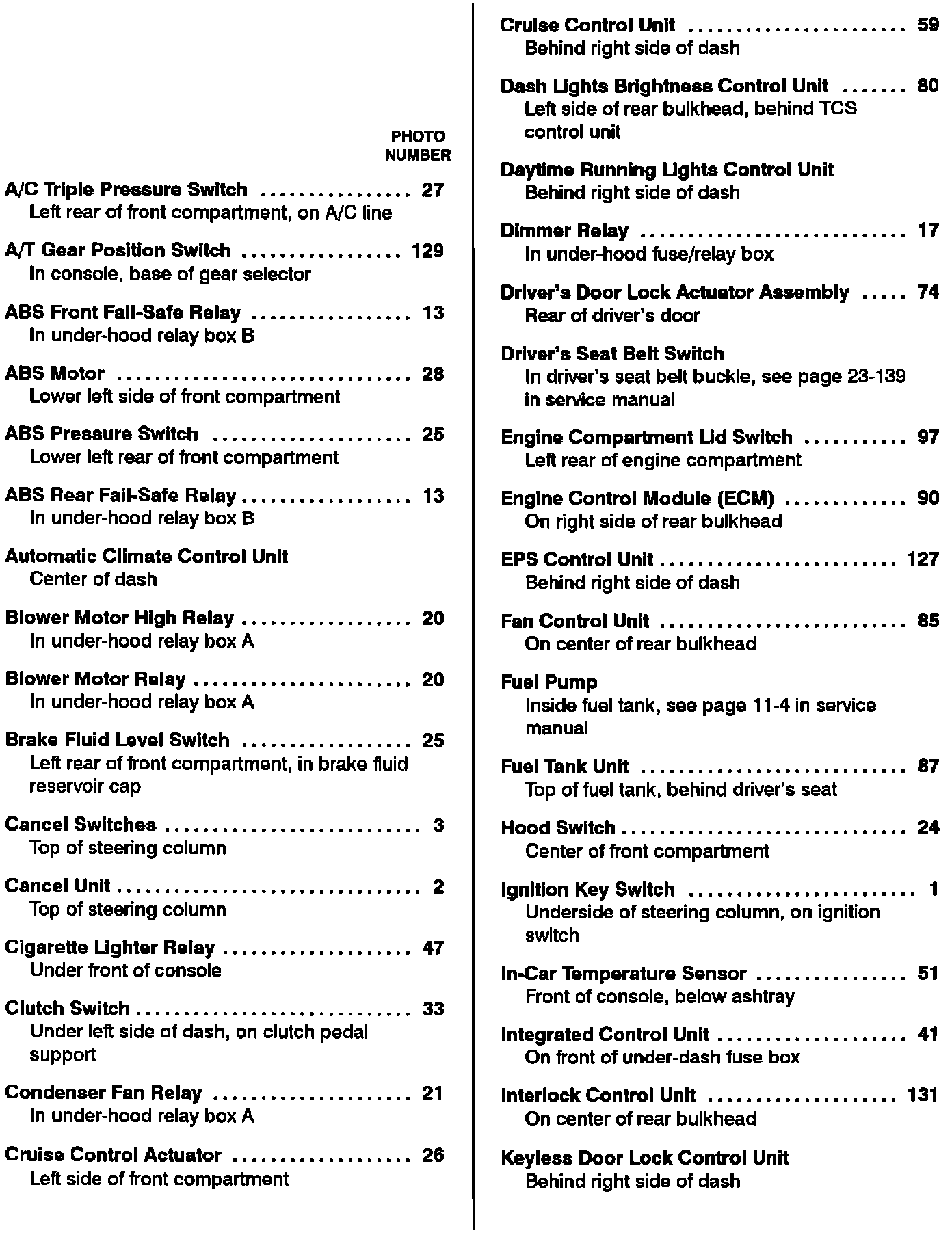

Ground Distribution: Component Location Index:

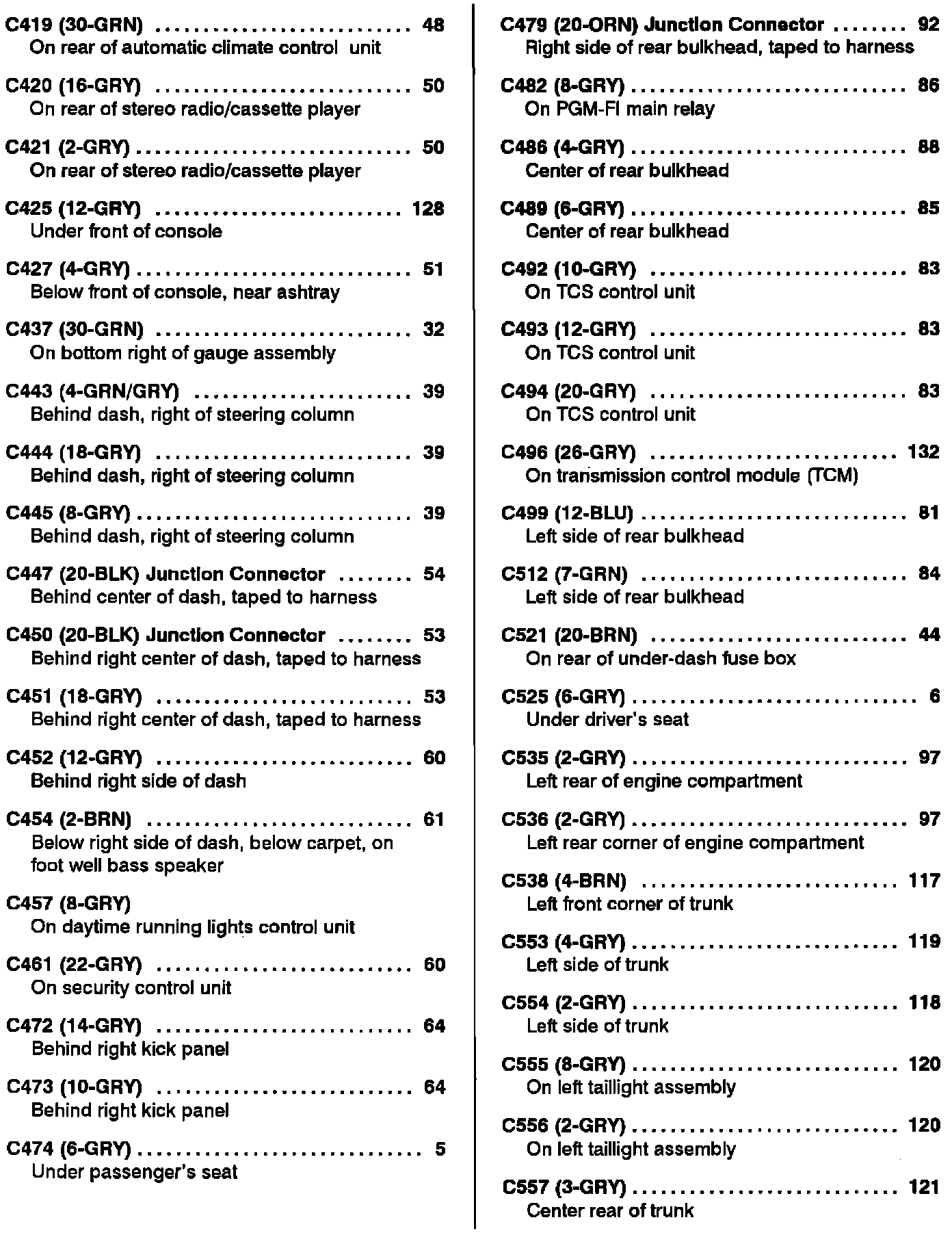

Ground Distribution: Component Location Index:

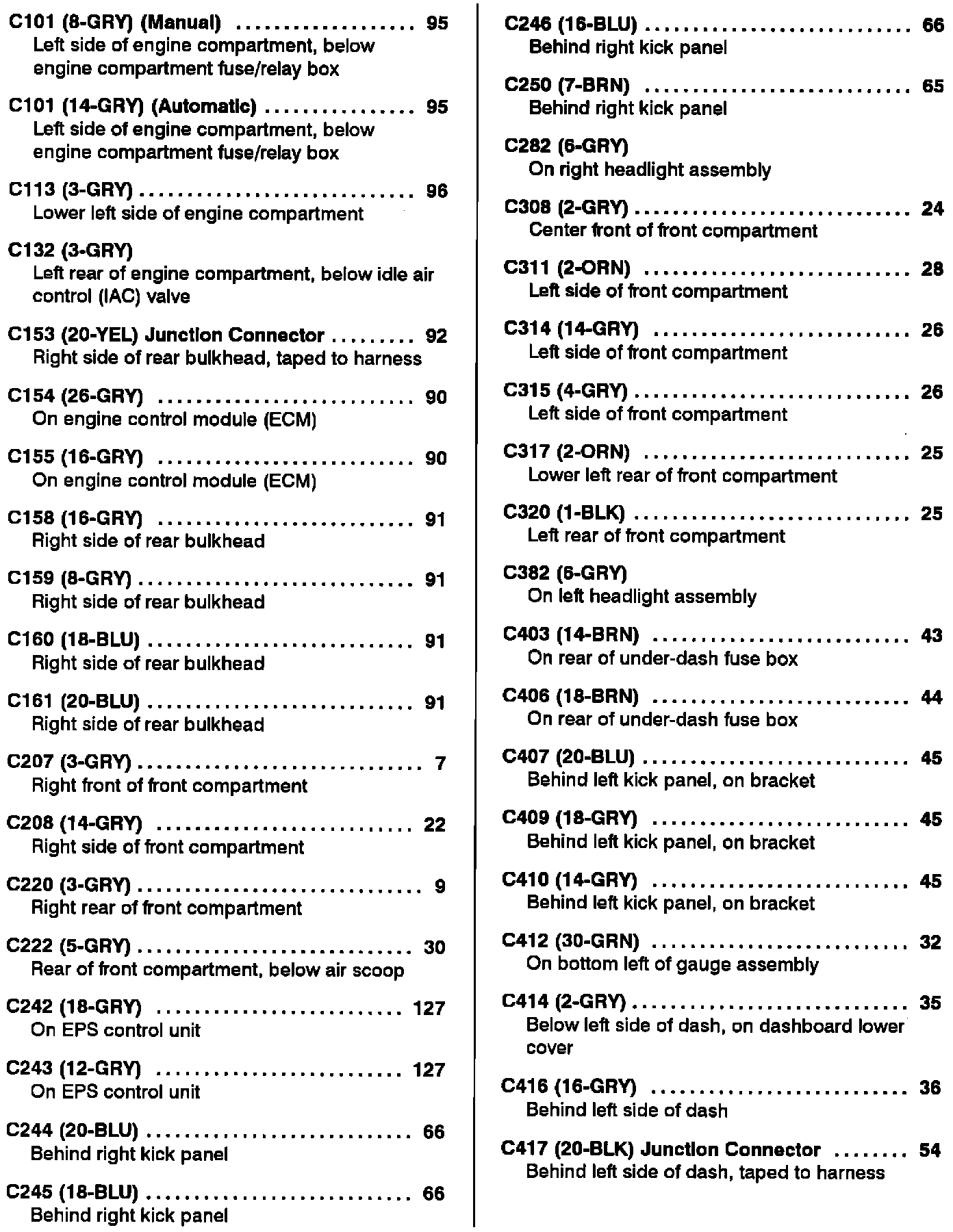

Ground Distribution: Component Location Index:

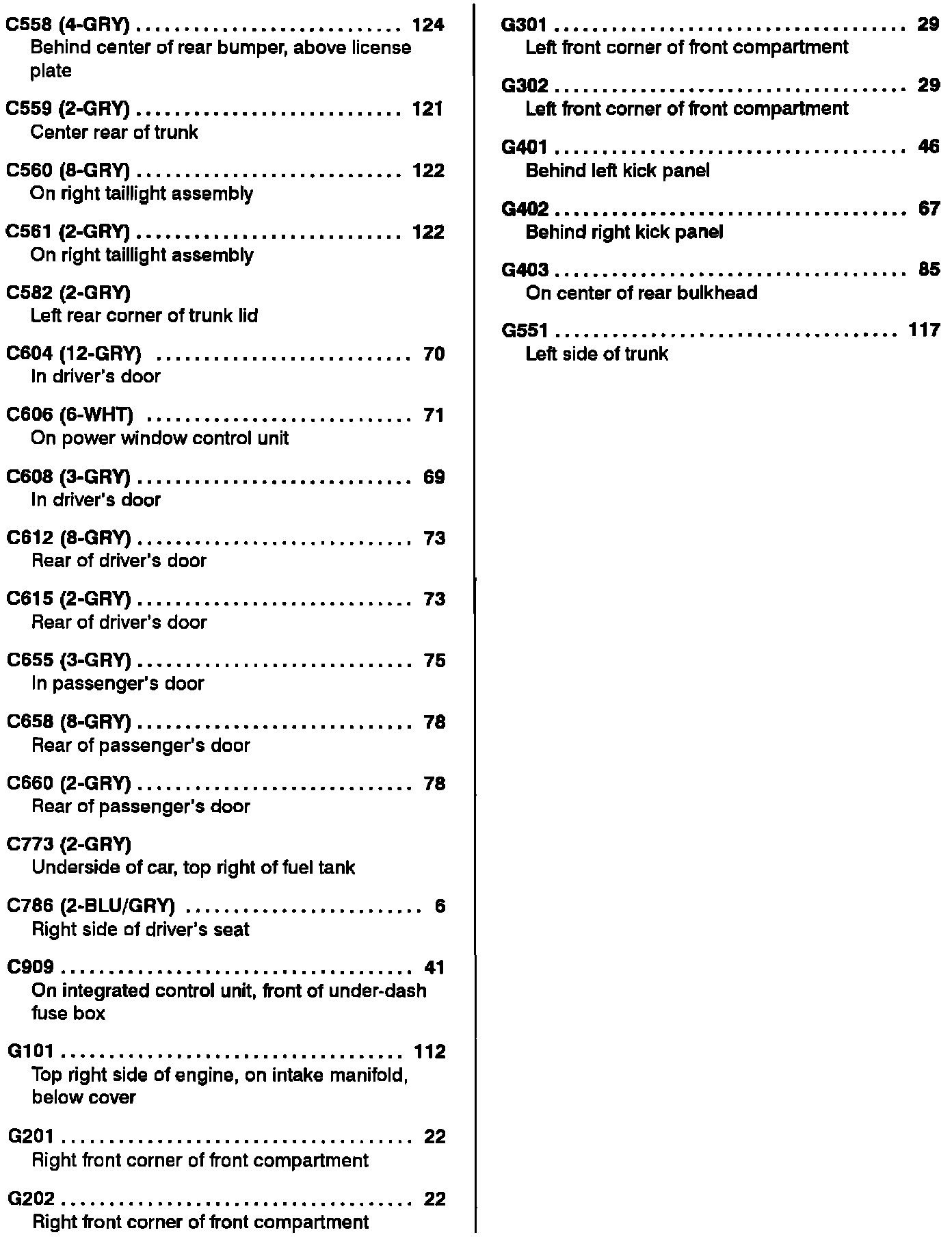

Ground Distribution: Component Location Index:



Ground Distribution: Component Location Index:
