Front

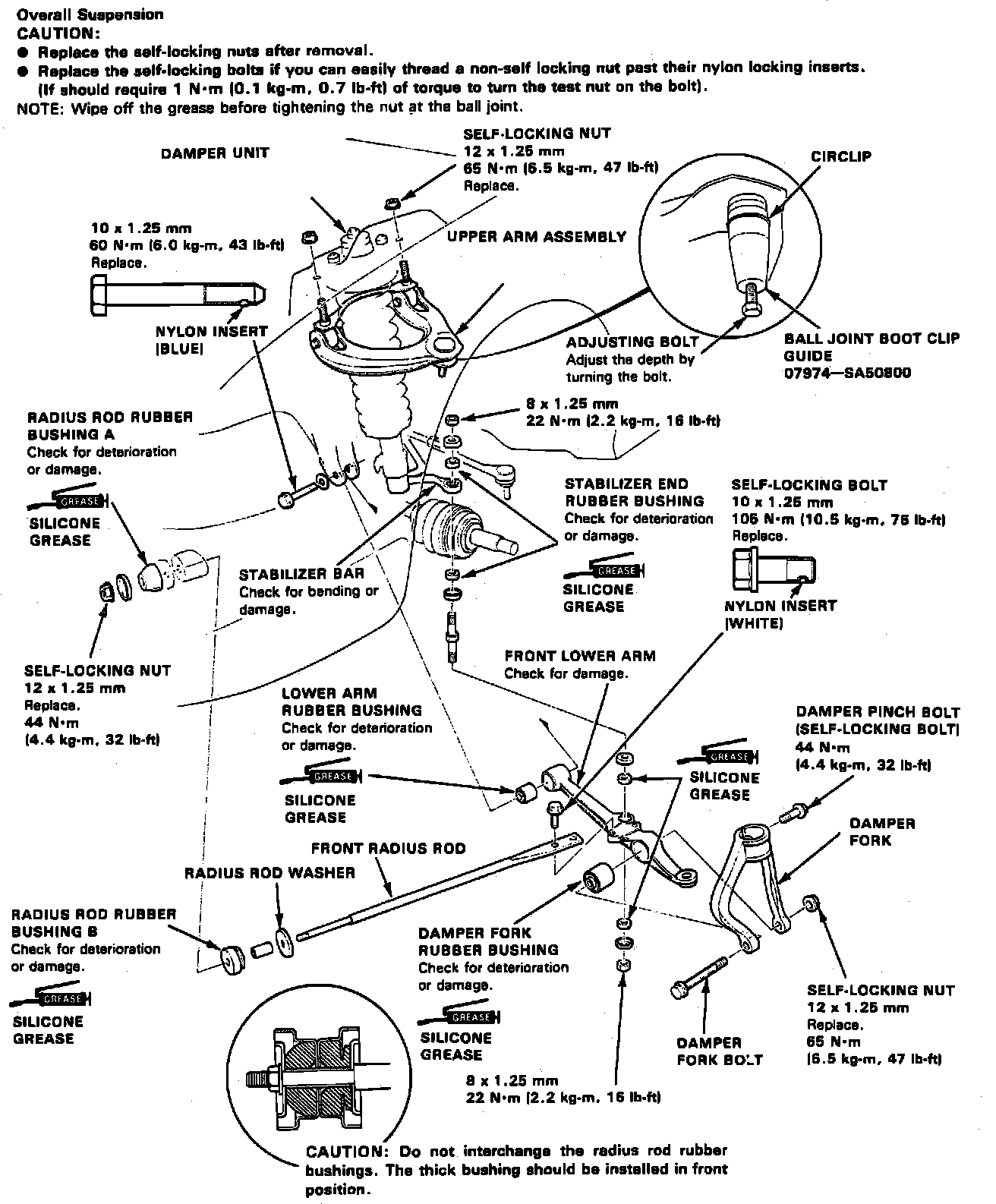

Fig. 22 Exploded View Of Front Suspension Components:





Refer to Fig. 22 for stabilizer bar replacement.
