Engine Compartment Fuse/Relay Box

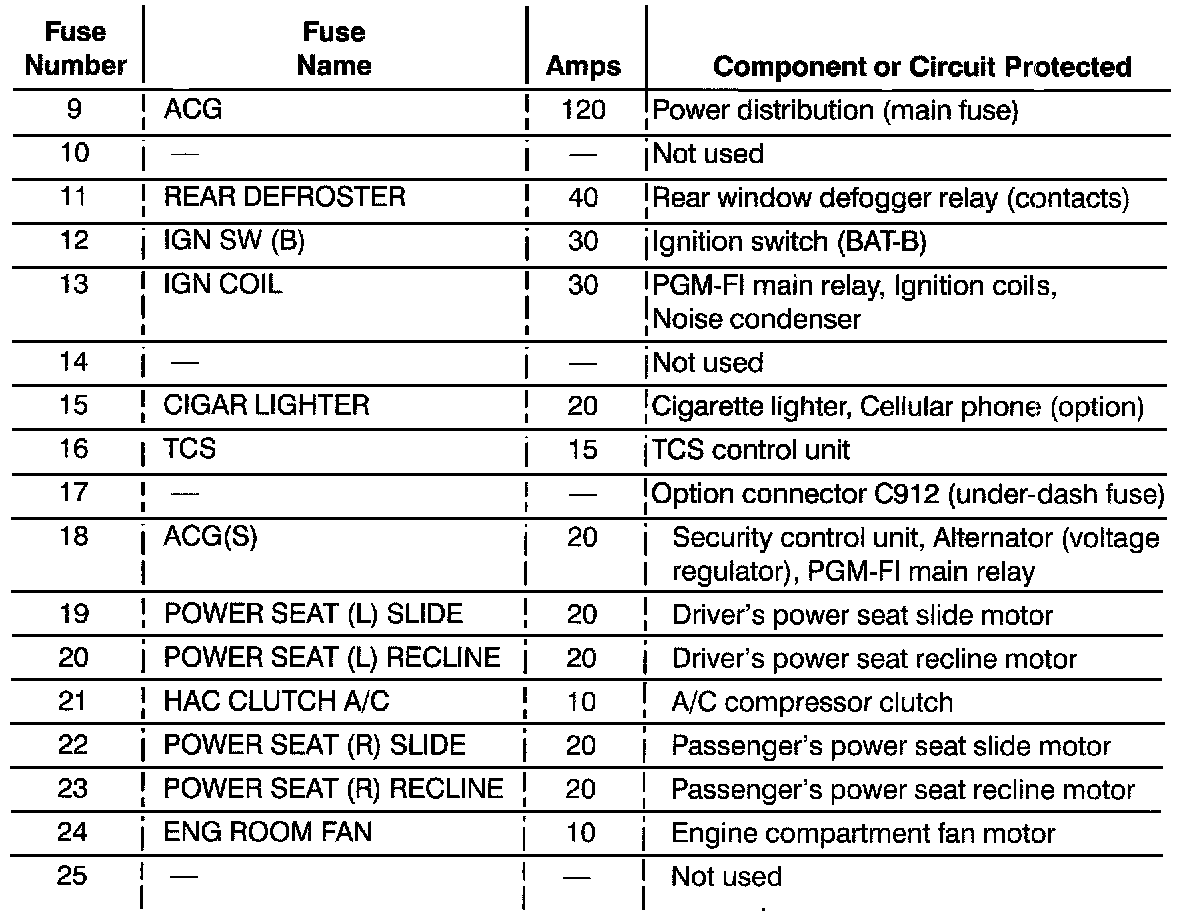

Fuse/Relay Information - Engine Compartment Fuse/Relay Box:

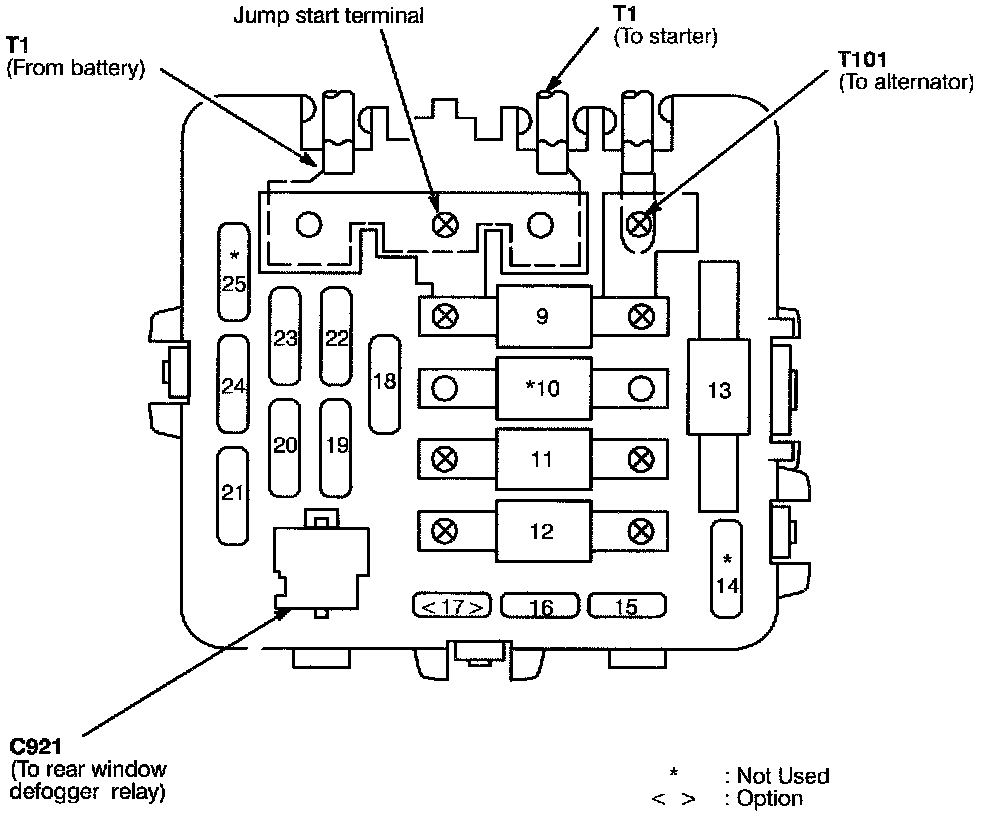

Fuse/Relay Information - Engine Compartment Fuse/Relay Box:
