System Connectors - Engine Compartment

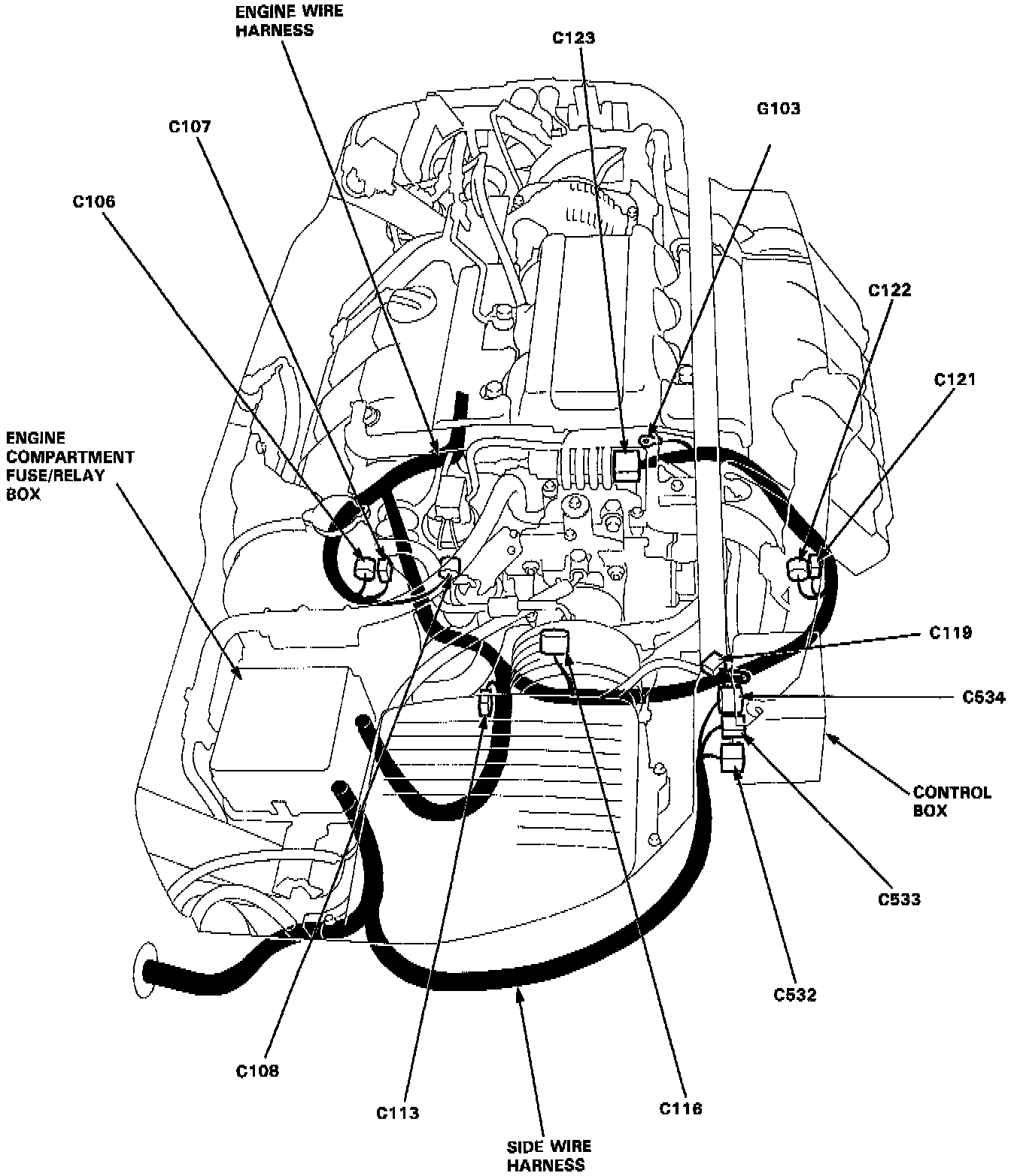

Engine compartment view, left.

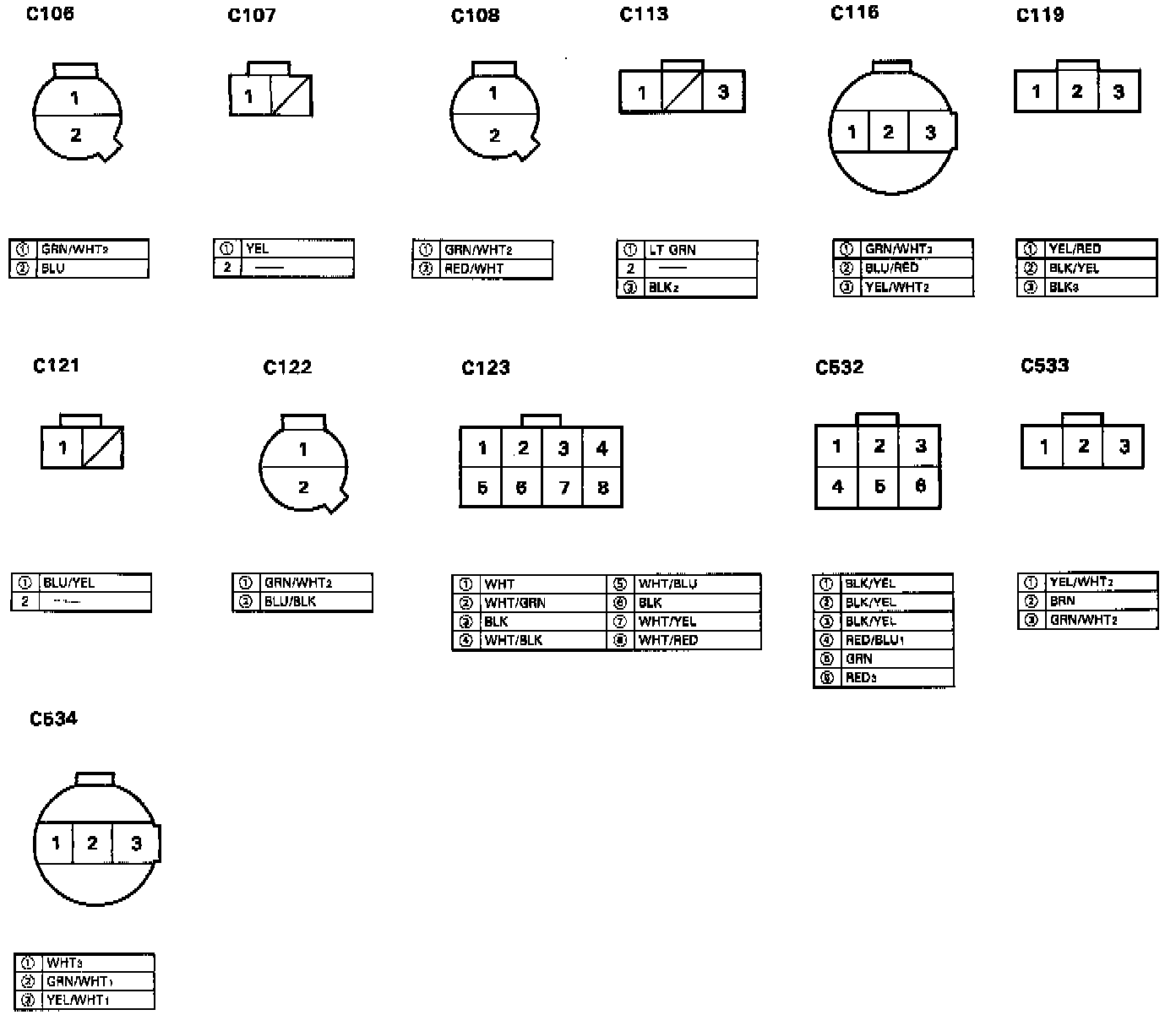

Connector views.





Engine compartment view, right.

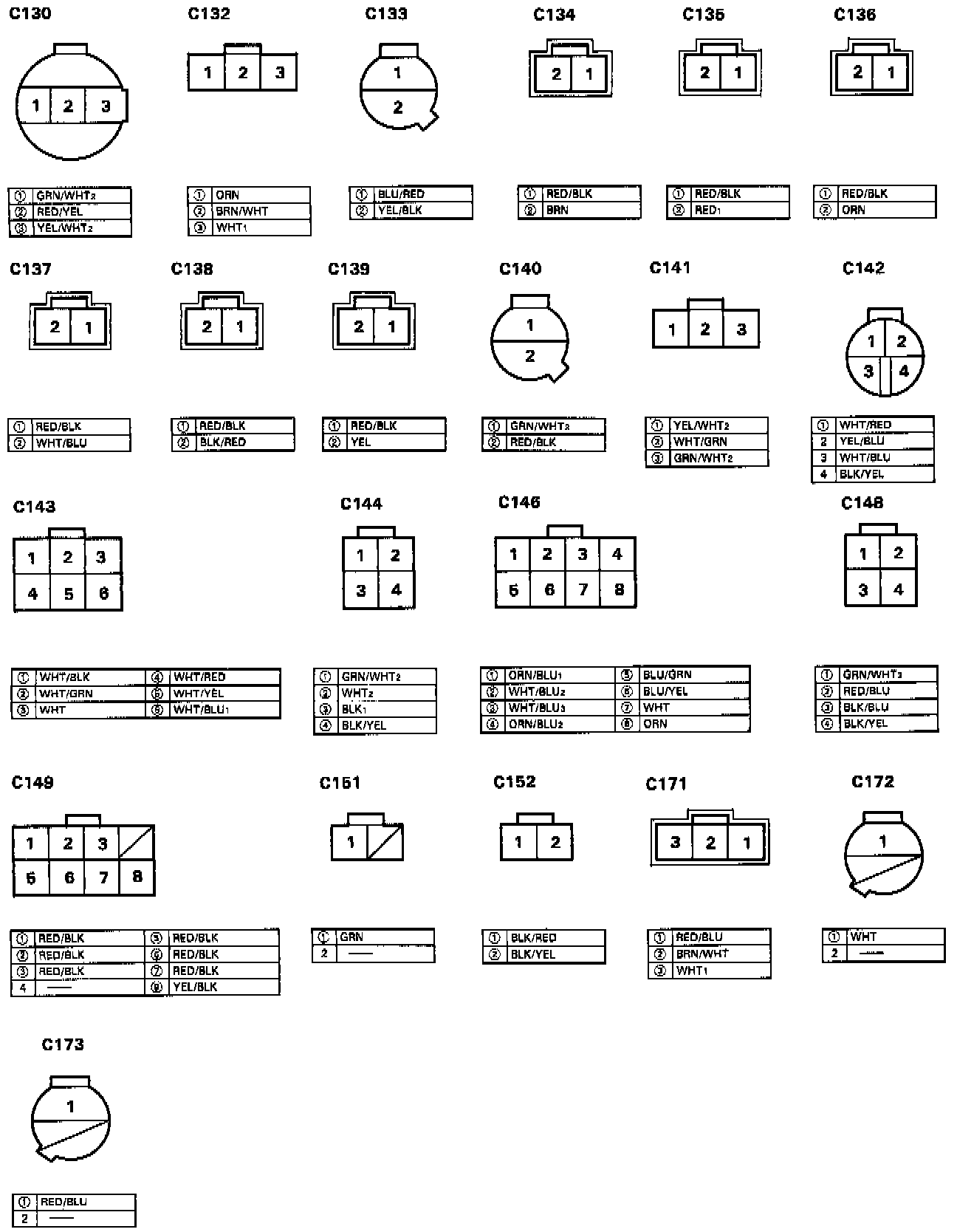

Connector views.

NOTE:
- Several different wires have the same color. They have been given a number suffix to distinguish them (for example YEL/BLK1 and YEL/BLK2 are not the same.
- Circled terminal numbers are Related to the PGM-FI System.
