Antilock Brakes / Traction Control Systems
>>
System Diagram
>>
26 Pin
26 Pin

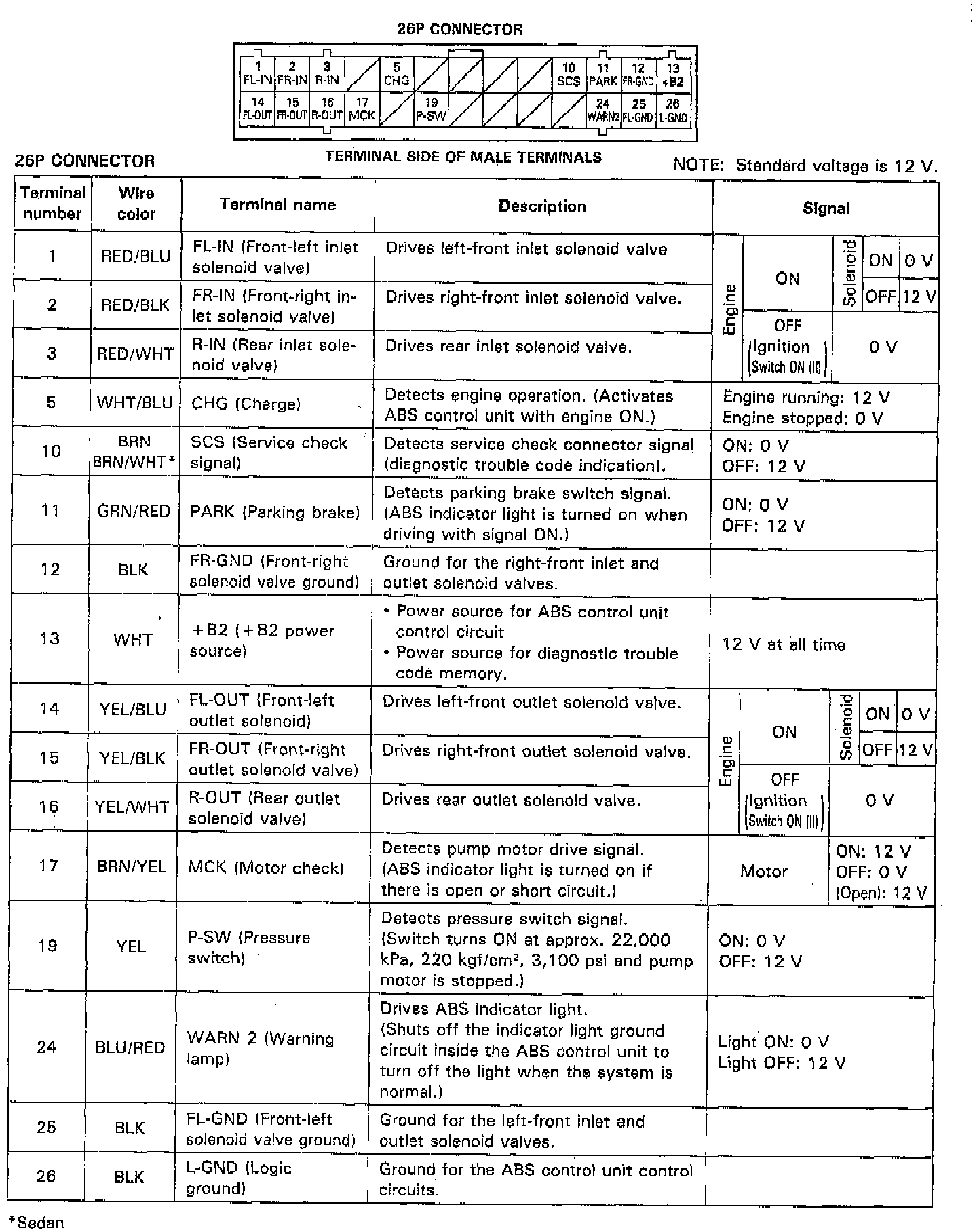

ABS Control Unit Terminal Arrangement: 26P Connector:
