Fluid Line/Hose: Service and Repair

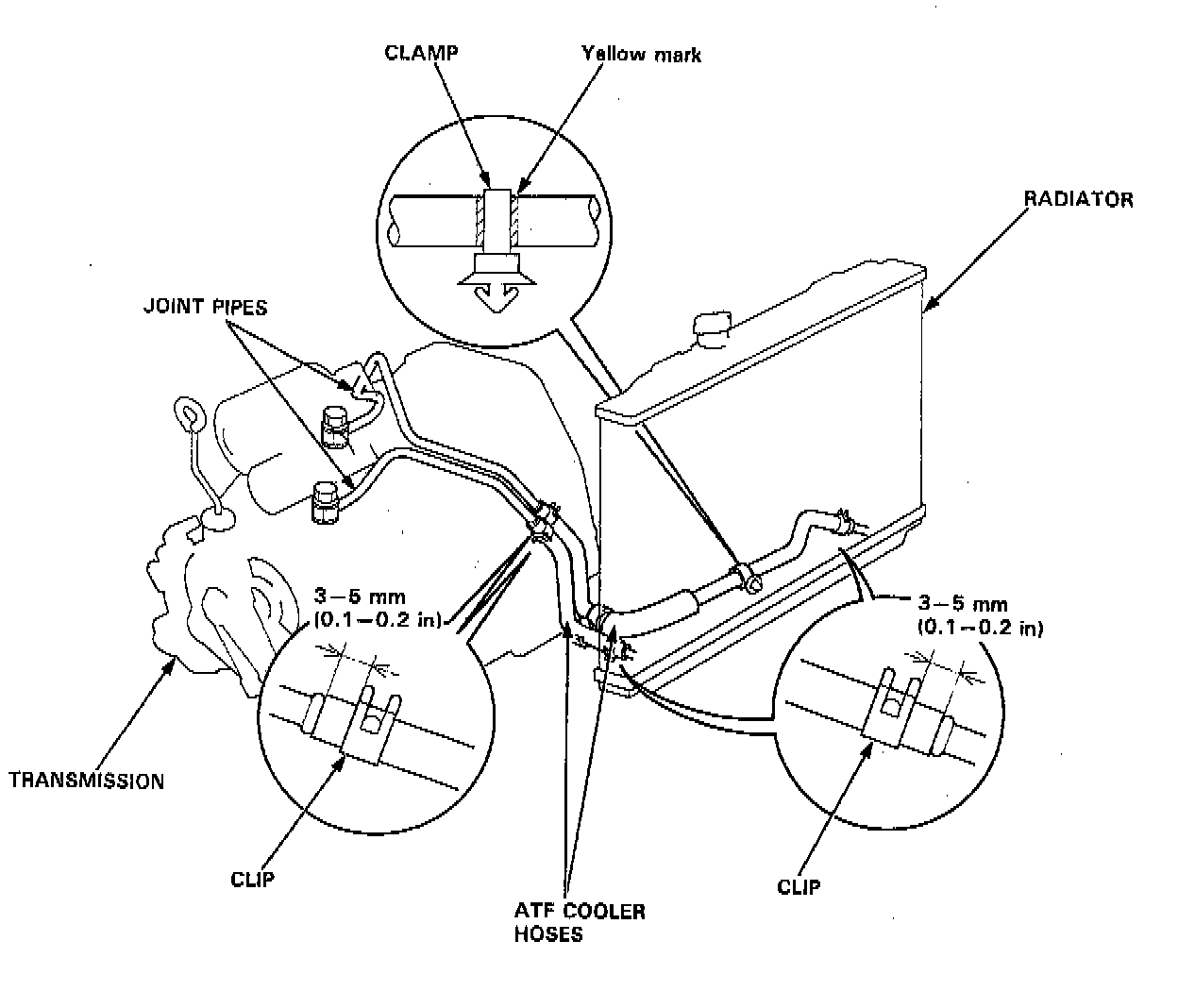

1. Connect the ATF cooler hoses to the joint pipes and ATF cooler, and secure them with the clips as shown.
2. Clamp the ATF cooler hose at the yellow mark as shown.
