Hatchback

Glass Adjustment

NOTE:
- Place the vehicle on a firm, level surface when adjusting the glass.
- Check the weatherstrips and glass run channel for damage or deterioration, and replace them if necessary.

1. Remove the door panel, and peel off the plastic cover.

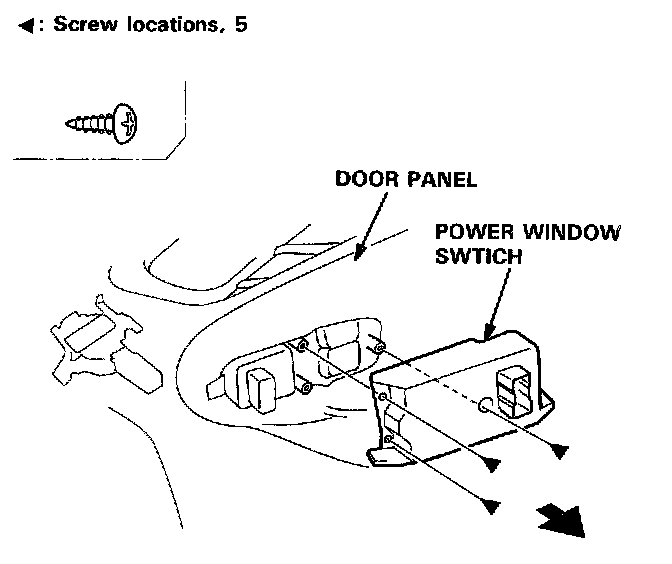

2. Remove the power window switch from the door panel.
3. Connect the power window switch to the door harness.

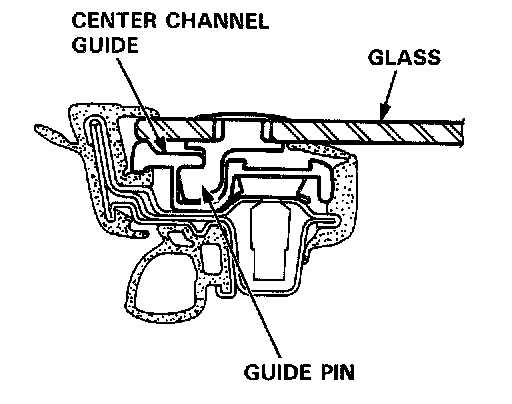

4. Make sure the guide pin is installed in the center channel guide properly.
5. Raise the glass as far up as possible, and hold it against the glass run channel.

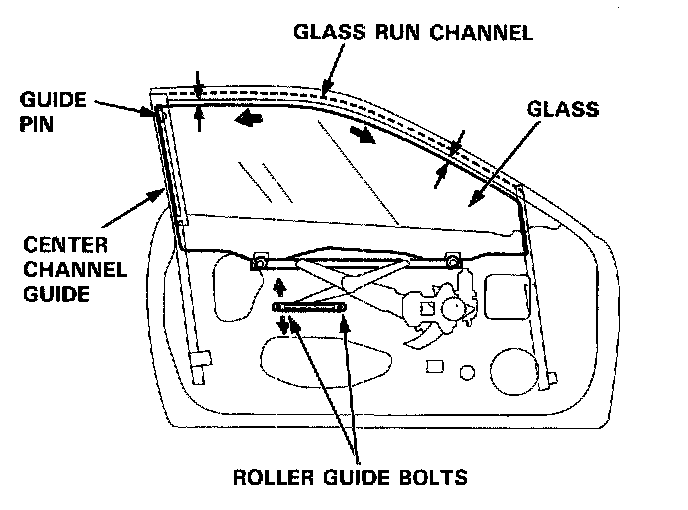

6. Loosen the roller guide bolts, and adjust the glass so it is parallel with the glass run channel.
7. Tighten the roller guide bolts.
8. Check that the glass moves smoothly.




9. If necessary, adjust the front and center channels.

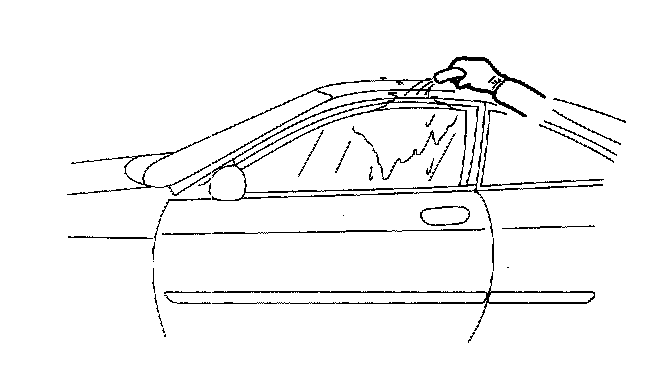

10. Raise the glass fully and check for gaps.
11. Check the glass operation.

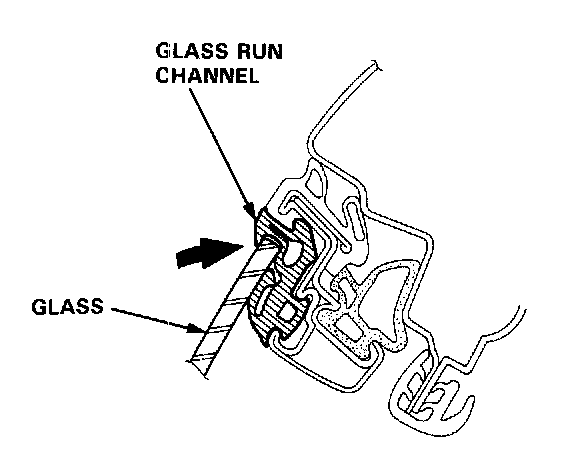

NOTE: Check that the glass contacts the glass run channel evenly.

12. Check for water leaks.






NOTE: Do not use high-pressure water.

13. Route the door harness and connectors, and fasten them to the door.
14. Disconnect the power window switch from the door harness, then install the power window switch in the door panel.
15. Attach the plastic cover, then install the door panel.
