Transmission Shift Position Indicator Lamp: Service and Repair

Indicator Bulb Replacement
SRS components are located in this area. Review the SRS component locations, precautions and procedures in SRS before performing repairs or service.
1. Remove the gauge assembly.
2. Disassemble the gauge assembly.

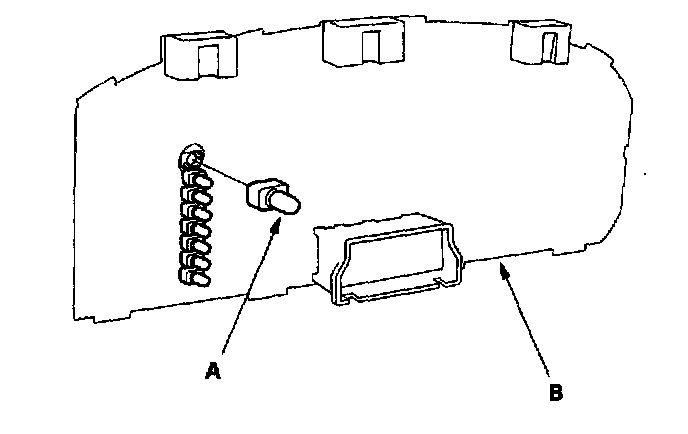

3. Replace the bulbs (A) in the gauge assembly (B).
