Indicator Input Test

Test
SRS components are located in this area. Review the SRS component locations, precautions and procedures in SRS before performing repairs or service.
1. Remove the gauge assembly from the dashboard, then disconnect the A (30P) and C (14P) connectors from the gauge assembly.
2. Inspect the connectors and connector terminals to be sure they are making good contact.
3. If the terminals are bent, loose, or corroded, repair them as necessary, and recheck the system.

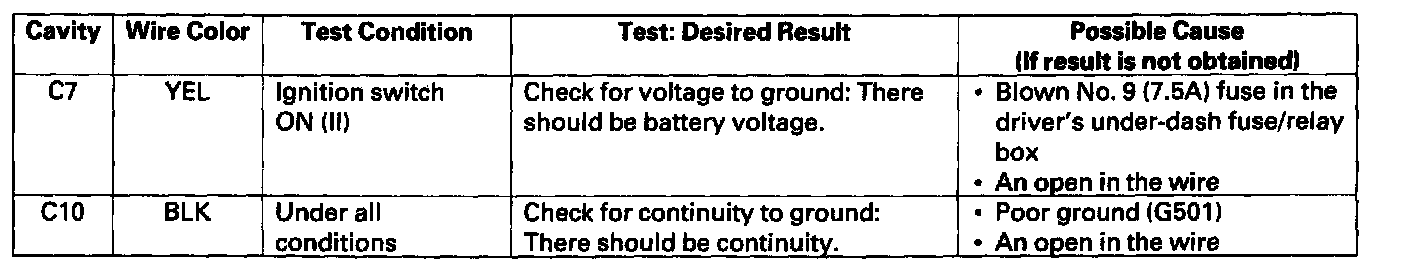

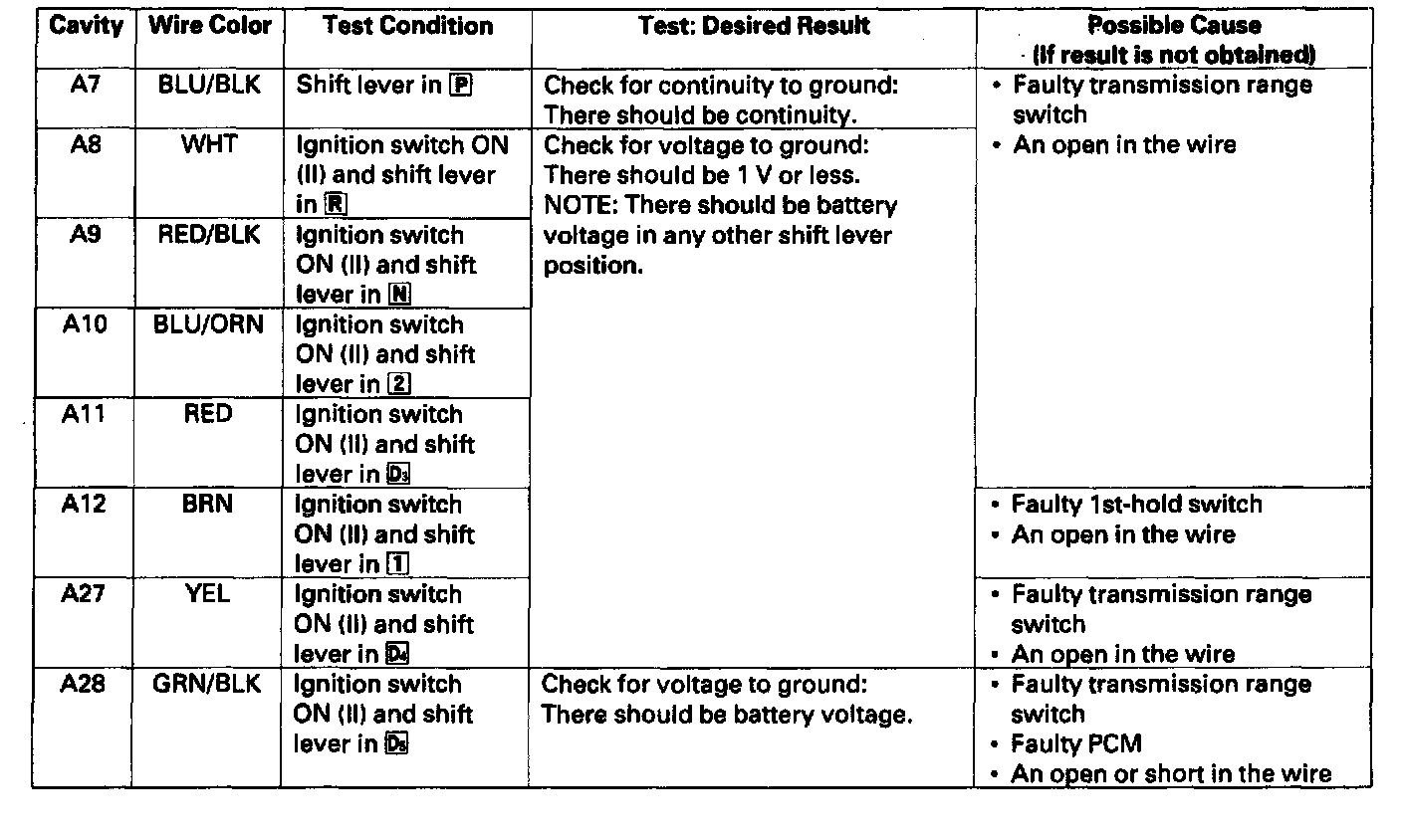

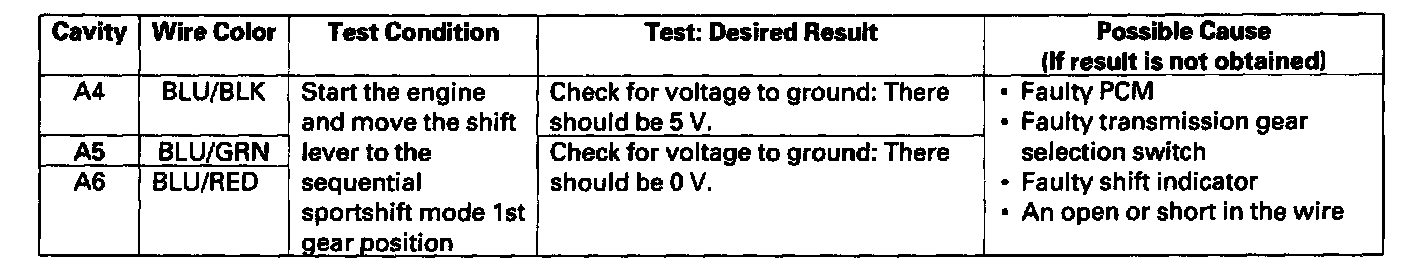

4. Perform the following input test at the gauge assembly A (30P) and C (14P) connectors.





GAUGE ASSEMBLY CONNECTORS








Wire side of female terminals





5. Connect the A (30P) and C (14P) connectors to the gauge assembly, then perform the following input test.
6. If all the input tests prove OK, but the indicator is faulty, replace the printed circuit board.
