Turn Signal Bulb: Service and Repair

Bulb Replacement

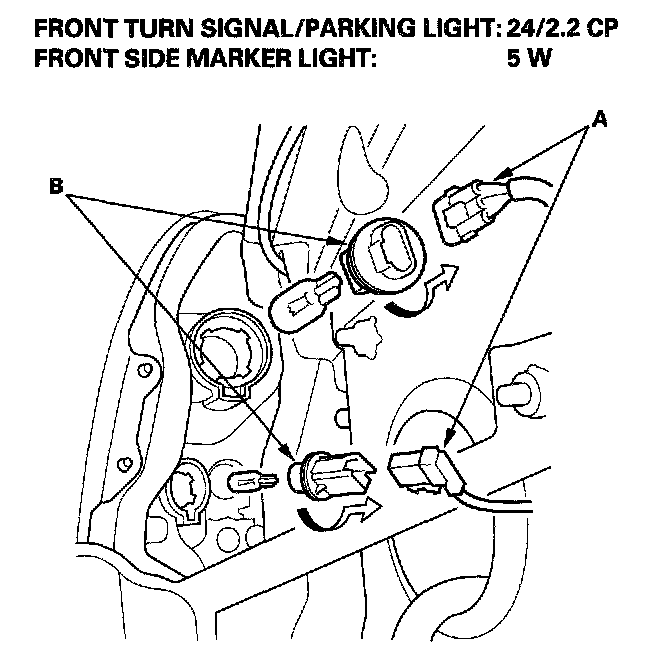

Front Turn Signal/ Parking Lights:
Front Side Marker Light:

1. Remove the inner fender.




2. Disconnect the connectors (A) from the lights.
3. Turn the bulb socket (B) 45° counterclockwise to remove them from the housing.
4. Install the new bulb(s) in the reverse order of removal.
