Windshield Washer Reservoir: Service and Repair

Washer Reservoir Replacement

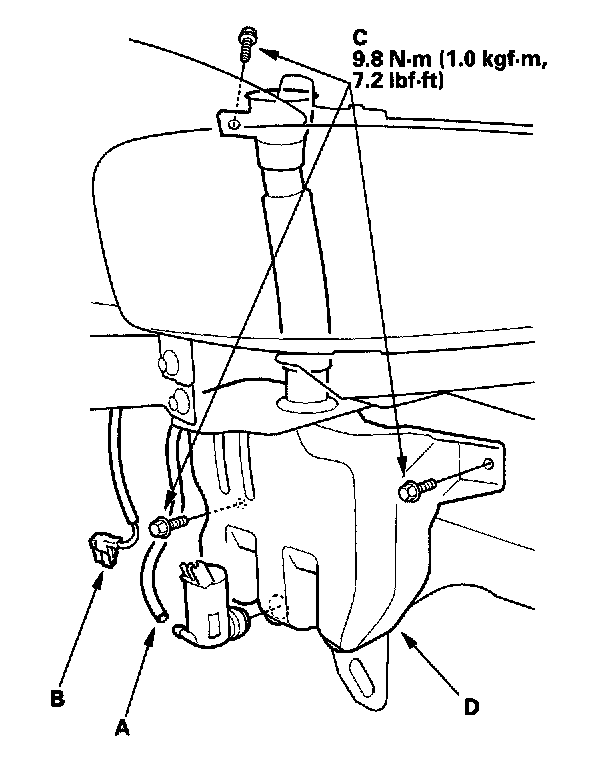

1. Pull away the right inner fender.




2. Disconnect the washer tube (A) and washer motor connector (B).
3. Remove the three bolts (C) and the washer reservoir (D).
4. Install in the reverse order of removal. Check the washer motor operation.
