Hydraulic Assembly: Service and Repair

VSA Control Unit Replacement
1. Remove the passenger's kick panel.

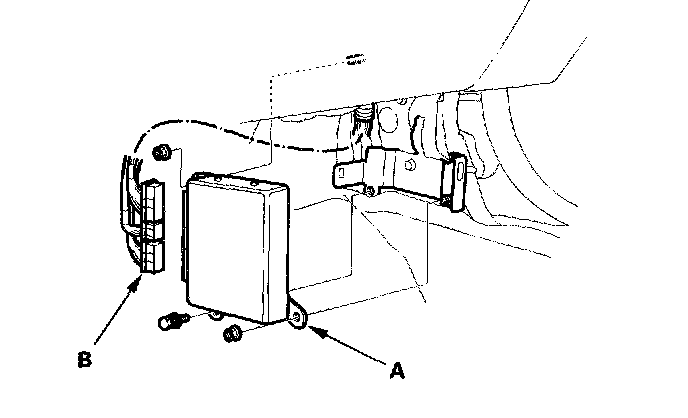

2. Remove the VSA control unit (A).
3. Disconnect the VSA control unit connectors (B).
4. Install the VSA control unit in the reverse order of removal.
5. Perform the neutral position memorization.
