Adjusting

^ remove instrument cluster but do not remove electrical connectors

^ select appropriate correction factor with three sliding switches on right side of instrument cluster





Note

Correction factor is set at 0% when all three sliding switches are OFF.

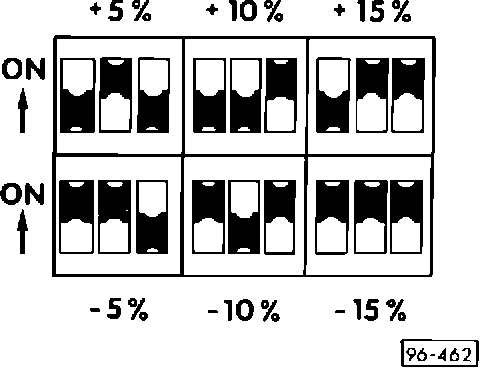

^ set switches as shown for appropriate correction factor
