Correction Factor, Checking/Adjusting

Fuel consumption correction factor, checking/adjusting

Checking

Note

If a discrepancy of more than 5% exists between actual fuel consumption and consumption calculated by the computer, the consumption display can be adjusted within a range of +/- 15% by using the adjustment on the instrument cluster.





^ switch ignition OFF
^ press and hold RESET button
^ switch ignition ON
^ release RESET button

^ press lower function selector switch and hold down

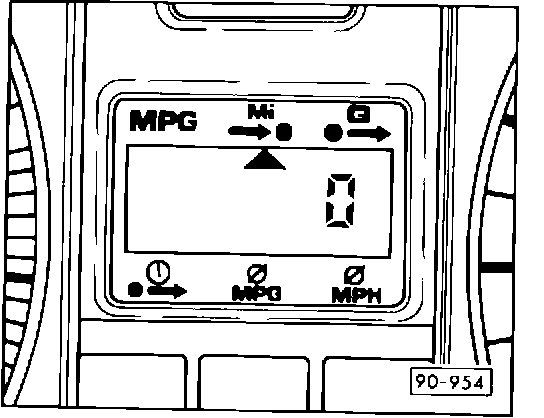

^ display shows current setting of fuel consumption correction factor


Note

The correction range lies between - 15% and + 15%. The plus sign is omitted when positive values are displayed.
