Transmission Identification

The 5-speed automatic transmission 01V is installed in the Audi A8 in combination with the 3.7 liter V-8 cylinder engine.

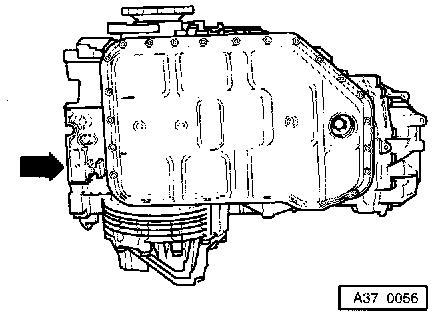

The identification plate (arrow) is located in front of the oil pan on the bottom of the transmission.

NOTE: An identical identification plate, on the side of the transmission housing, is not accessible when the transmission is installed.

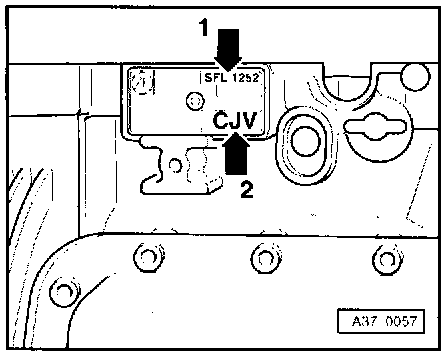

Transmission Code Letters (arrow -2-) And Serial Number (arrow -1-)

NOTE: The code letters of the transmission are also listed on the vehicle data plates.

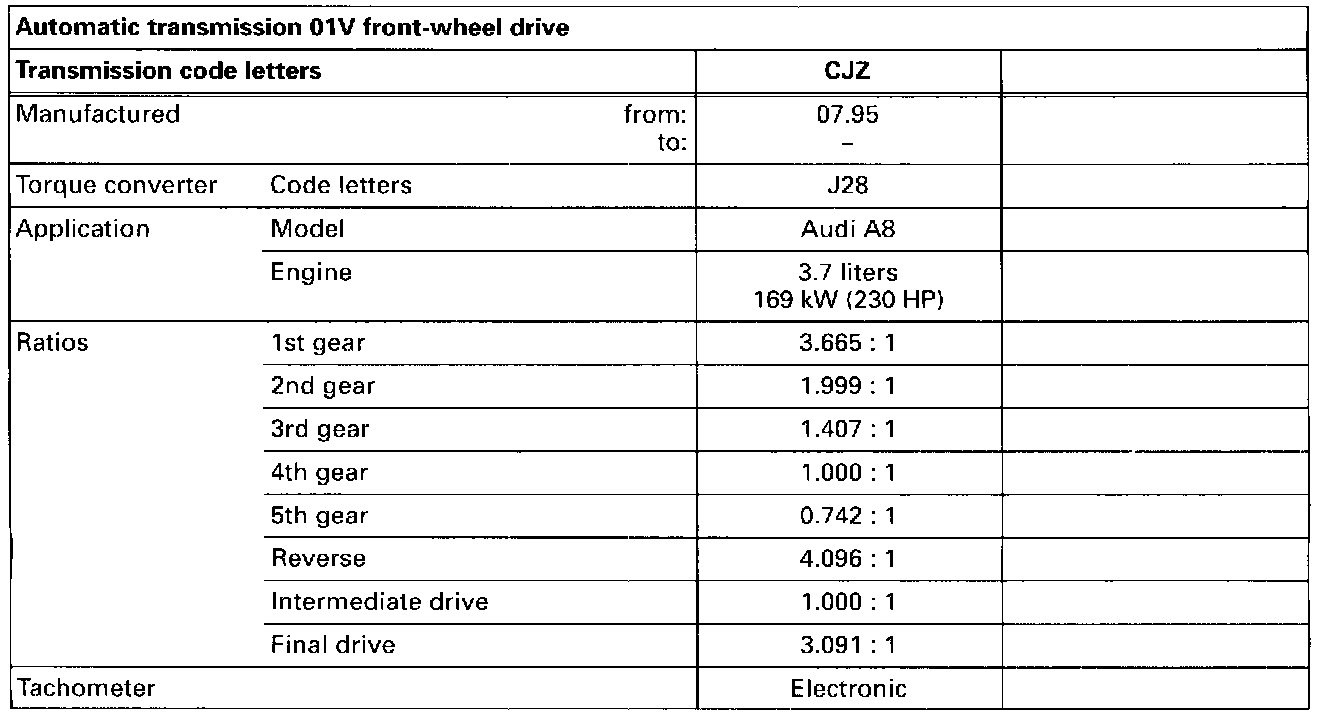

Ratios and Equipment
