Air Injection Pump: Service and Repair

Secondary Air Injection (AIR) pump motor-V101-, removing and installing
Removing

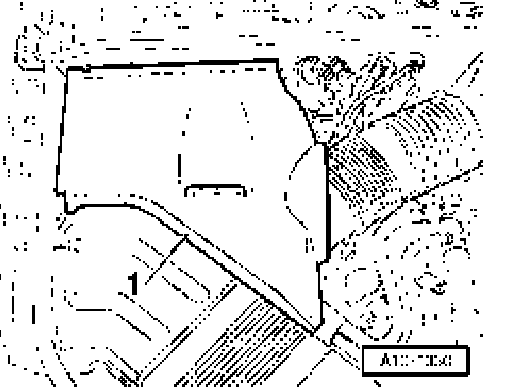

^ Remove cover -1- in engine compartment (right side).

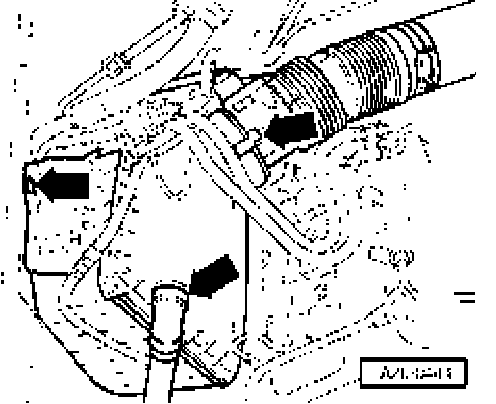

^ Remove bolts (arrows).

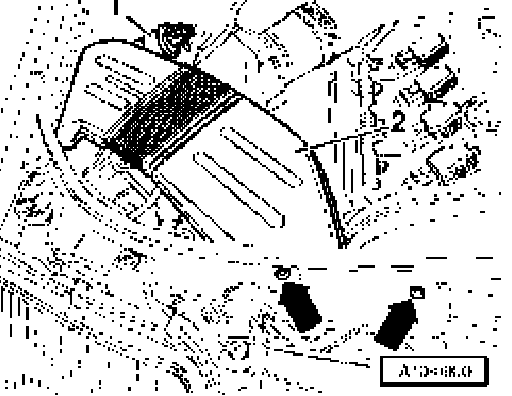

^ Detach Evaporative Emissions (EVAP) Canister Purge Regulator Valve -N80-1- at air guide.
^ Remove air guide -2-.





^ Remove air filter housing (arrows).
^ Remove both bolts on Secondary Air Injection (AIR) pump bracket, which are accessible from top.





^ For vehicles with auxiliary heater, remove bolts (arrows) for exhaust pipe of parking heater/auxiliary heater at noise insulation.

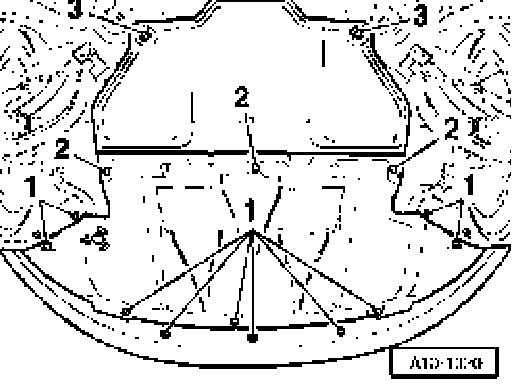

^ Remove bolts or release quick-release screws -1- and -2- and remove front noise insulation.





^ Disconnect electrical harness connector-3-.

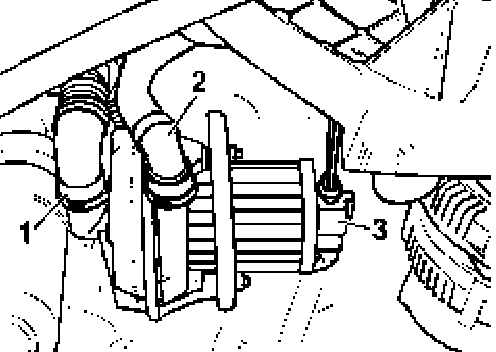

^ Disconnect air hoses -1- and -2-.
^ Remove bolts for secondary Air Injection (AIR) pump bracket, which are accessible from bottom.
^ Remove Secondary Air Injection (AIR) Pump Motor -V101- with bracket.
^ If necessary, separate Secondary Air Injection (AIR) Pump Motor -V101-from bracket.

Installing
Installation is the reverse of removal.

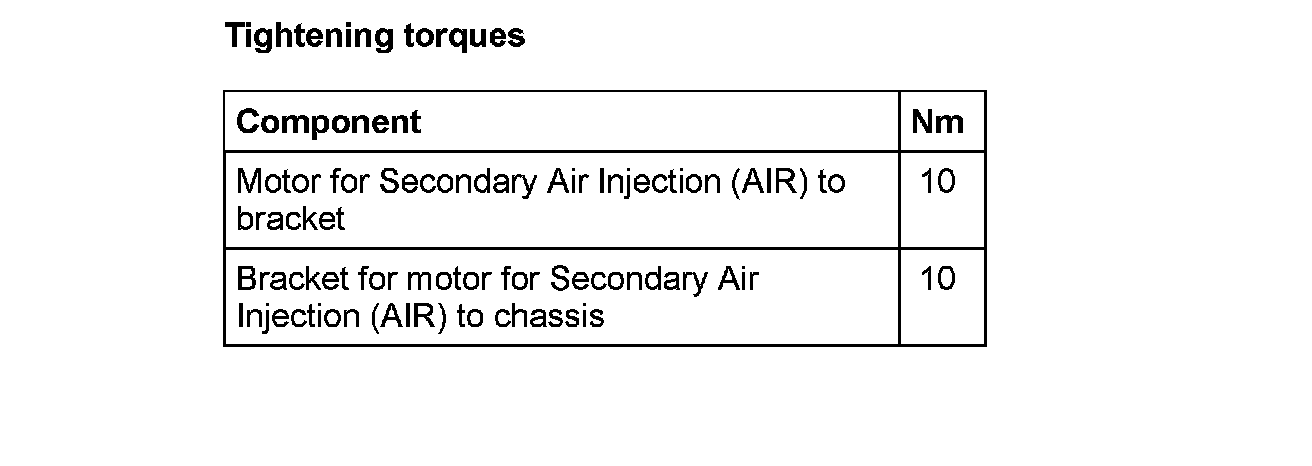

Tightening torques
