Fluid Filter - CVT: Service and Repair

Auxiliary ATF Filter CVT 01J

Special Tools and Equipment
- Drip tray
- Safety goggles

Notes:
^ Always blow compressed air through ATF cooler and ATF lines (max. 10 mbar) before installing a replacement transmission.
^ When installing ATF lines, insert into transmission or cooler by hand until impact first and then tighten bolts.

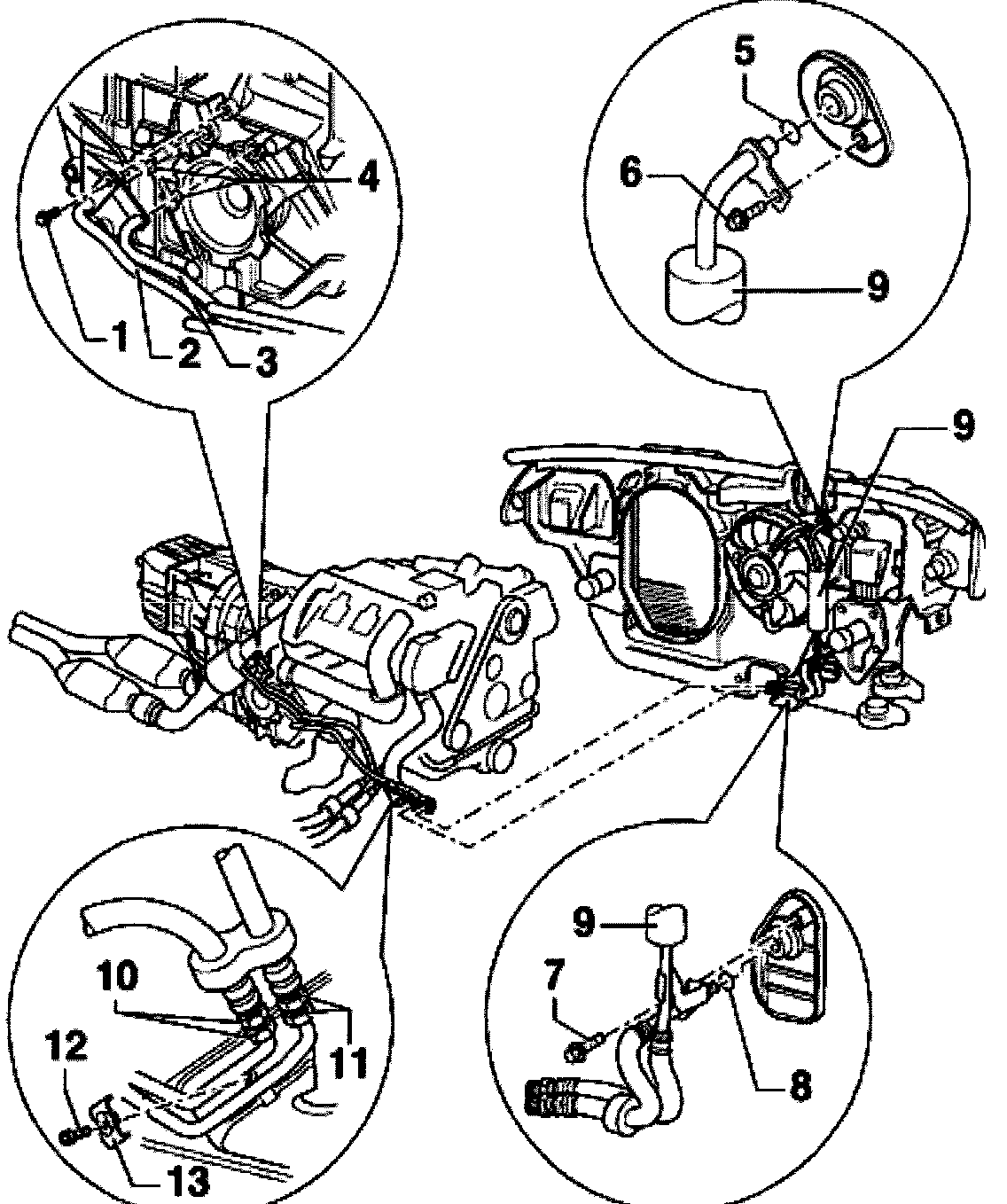

Removing
- Place drip tray beneath transmission.
- Remove union nuts -10- and -11 and disconnect both lines.
- Remove bolt -6-.





- Remove the line from cooler and remove O-ring -5- so it will not remain inserted in cooler.
- Remove bolt -7-.
- Remove the line from cooler and remove O-ring -8- so it will not remain inserted in cooler.

Note: Before installation of a new auxiliary ATF filter, ATF lines and the ATF cooler must be cleaned.

Installing
- Replace auxiliary ATF filter with a new one.
- Re-install auxiliary ATF filter and ATF lines.
- Then check ATF level and top off.
