Procedures

High Pressure Sensor -G65- For Air Conditioner, Removing And Installing
- Remove radiator grille.

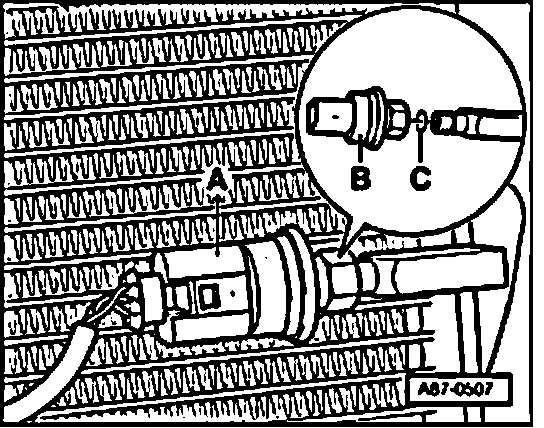

- Unplug connector -A-.
- Remove High Pressure Sensor -G65- -B-.
Tightening torque: 5 Nm
- Replace O-ring seal -C- (10.8 mm; 1.8 mm).

NOTE:
- Cooling output cannot be checked with High Pressure Sensor -G65- removed, as Climatronic Control Module -J255- does not switch on compressor.
- Refrigerant circuit remains closed (connection with valve).
- Checking operation of High Pressure Sensor -G65- and signal emitted.
- Moisten O-ring seal slightly with refrigerant oil before fitting.
