Air Injection: Locations

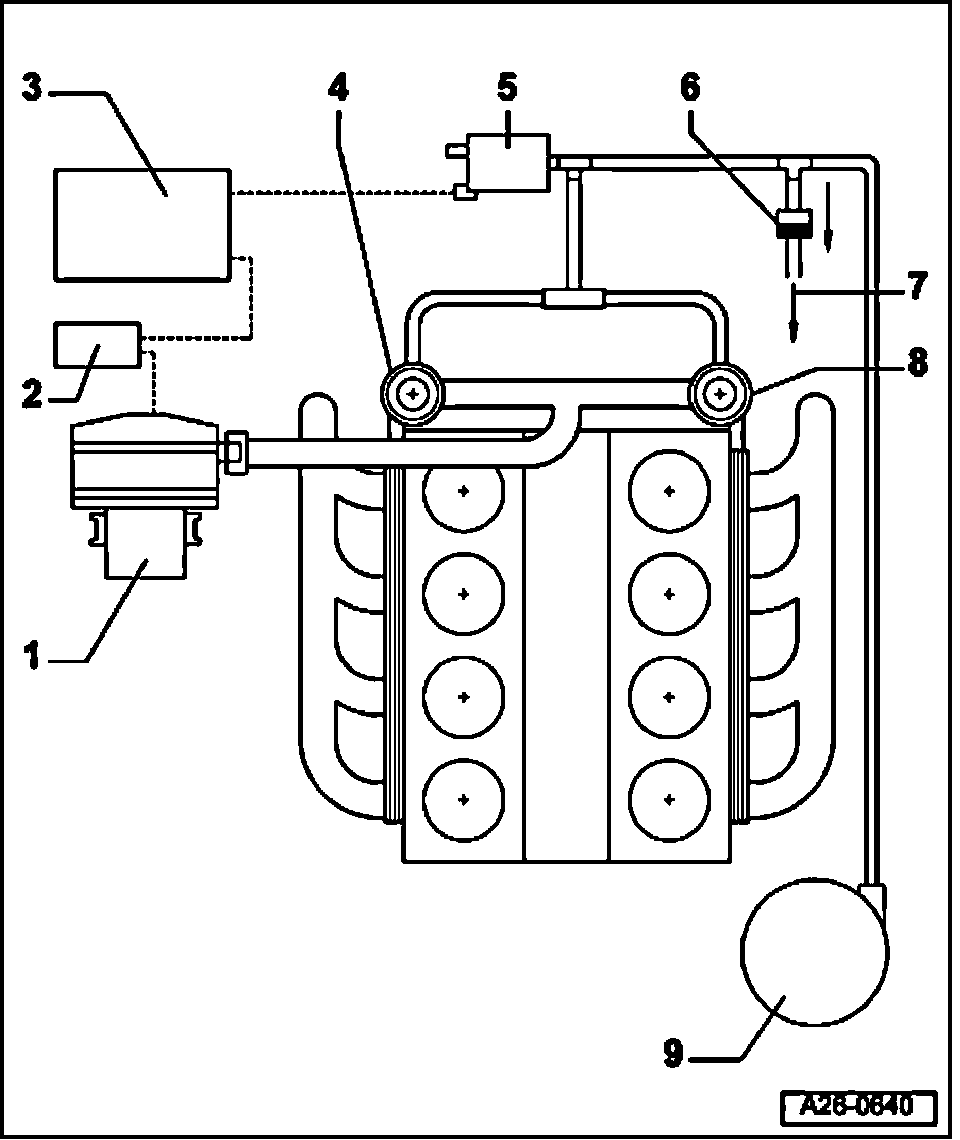

Secondary Air System Components Of Overview







1 Secondary Air Injection (AIR) Pump Motor -V101-
- Component location Fig. 2
2 Secondary Air Injection (AIR) Pump Relay -J299-
- Component location Fig. 3
3 Engine Control Module (ECM) -J623-
4 Combination valve for secondary air injection (right) Component location Fig. 4
5 Secondary Air Injection (AIR) Solenoid Valve -N112- Component location Fig. 1
6 Check-valve Installation position: Arrow points in direction of flow, as shown in figure.
7 To intake manifold
8 Combination valve for secondary air injection (left)
- Component location Fig. 4
9 Vacuum reservoir
- Component location: Under wheel housing liner in front left wheel housing

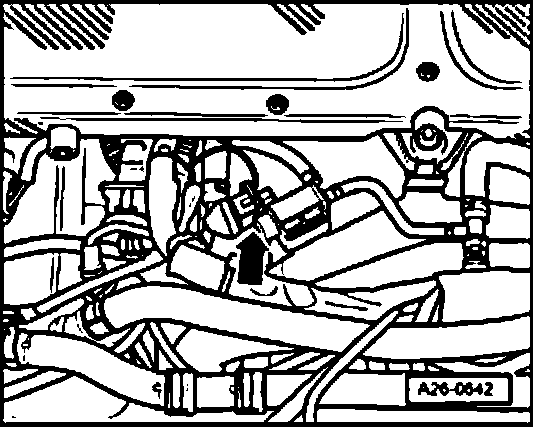

Fig. 1 Installation position of Secondary Air Injection (AIR) Solenoid Valve -N112-







- Front, right, on intake manifold (arrow).

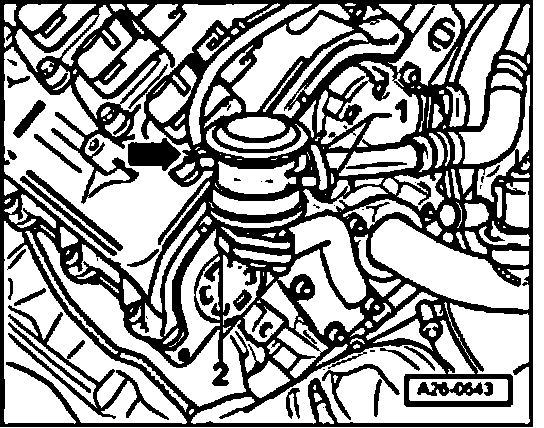

Fig. 2 Installation position of Secondary Air Injection (AIR) Pump Motor -V101-







- At front right in engine compartment below the longmember

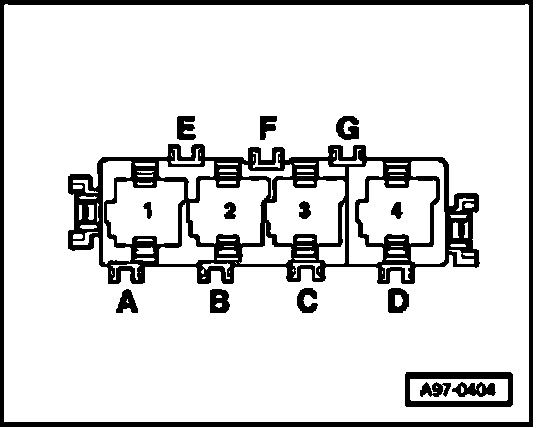

Fig. 3 Installation position of Secondary Air Injection (AIR) Pump Relay -J299-







- At position 1 in E-box, plenum chamber
- Fuse for Secondary Air Injection (AIR) pump -B-

Fig. 4 Combination valve for secondary air injection (AIR)







- At rear of cylinder heads

NOTE: Left valve is displayed in illustration.
