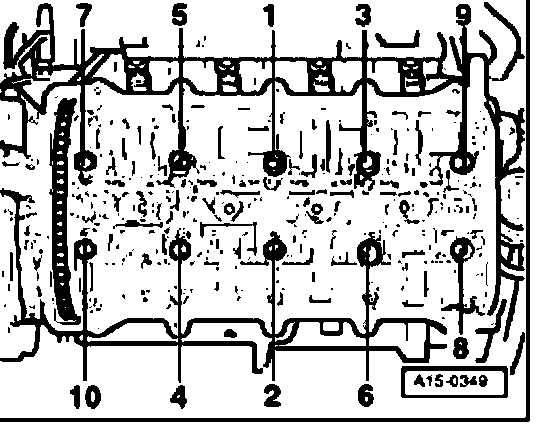

Cylinder Head Torque & Sequence

Cylinder Head Bolt





1st stage 30 Nm
2nd stage 60 Nm
3rd stage 90° (1/4 turn) further
4th stage 90° (1/4 turn) further

Note: It is not necessary to re-tighten cylinder head bolts later repairs have been performed.
