Air Injection: Locations

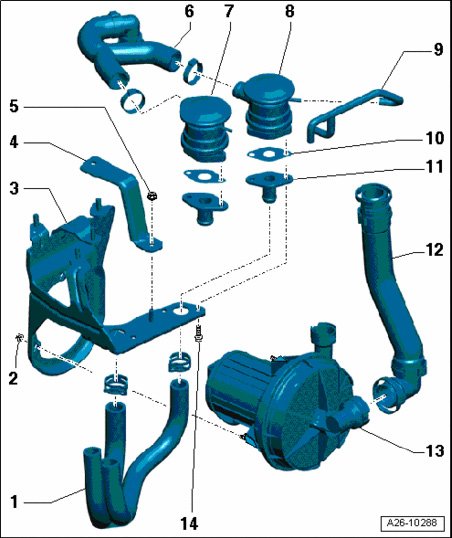

Secondary Air Injection (AIR), Component Overview







1. Air guide hose
- To engine
2. 9 Nm
3. Bracket
4. Angle bracket
5. 9 Nm
6. Air guide hose
- From Secondary Air Injection (AIR) Pump Motor V101 to secondary air injection combi-valves
7. Secondary Air Injection (AIR) combi-valve
- Component location: Right front in engine compartment
- Checking.
- Removing and installing.
8. Secondary Air Injection (AIR) combi-valve
- Component location: Right front in engine compartment
- Checking.
- Removing and installing.
9. Vacuum hoses
10. Gasket
- Replace
11. Connecting piece
12. Air guide hose
- From air filter
13. Secondary Air Injection (AIR) Pump Motor V101
- Component location: At right front in engine compartment below longmember
- Removing and installing.
- Check in "Guided Fault-Finding" operating mode
14. 9 Nm







Secondary Air Injection (AIR) Pump Relay J299 and Secondary Air Injection (AIR) Pump Fuse S130 installation location
- In E-box, plenum chamber, passengers side.
1 - Secondary Air Injection (AIR) Pump Relay J299
B - Secondary Air Injection (AIR) Pump Fuse S130 (50 A)
