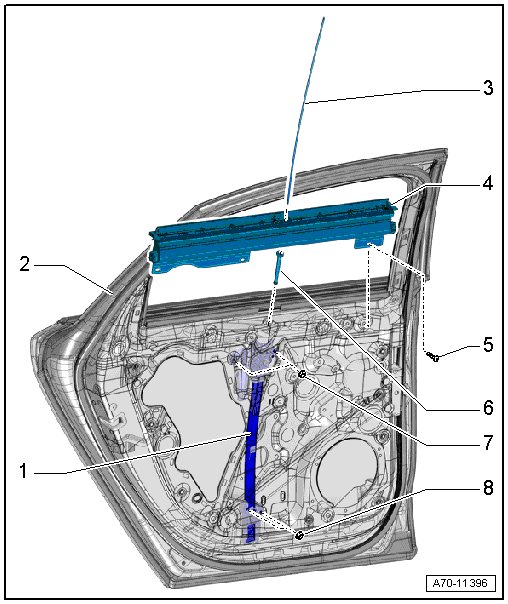

Rear Window Shade Assembly Overview

Rear Window Shade Assembly Overview






1 Left rear window shade motor (V332)

• Right rear window shade motor (V333)

• Removing and Installing, refer to => [ Rear Window Shade Motor V332/V333 ] Rear Window Shade Motor V332/V333

2 Door frame - rear

3 Push rod

• Removing and Installing, refer to => [ Rear Side Shade ] Rear Side Shade

4 Rear window shade

• Removing and Installing, refer to => [ Rear Side Shade ] Rear Side Shade

5 Bolt

• For rear window shade

• Quantity: 3

• 3.3 Nm

6 Guide

• for push rod

• Removing and Installing, refer to => [ Rear Window Shade Motor V332/V333 ] Rear Window Shade Motor V332/V333

7 Nut

• Quantity: 2

• 3.3 Nm

8 Nut

• Quantity: 2

• 3.3 Nm
