The
Power Distribution Box
is located in the engine compartment on the LH wheel well.

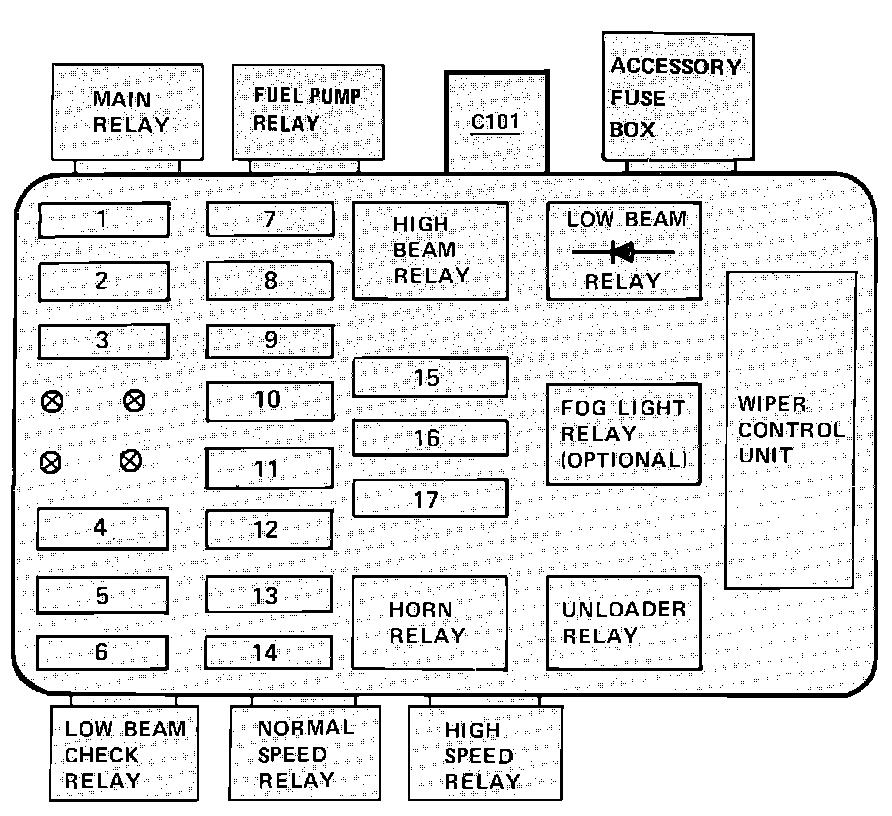

Fuse And Relay Positions In Distribution Box:

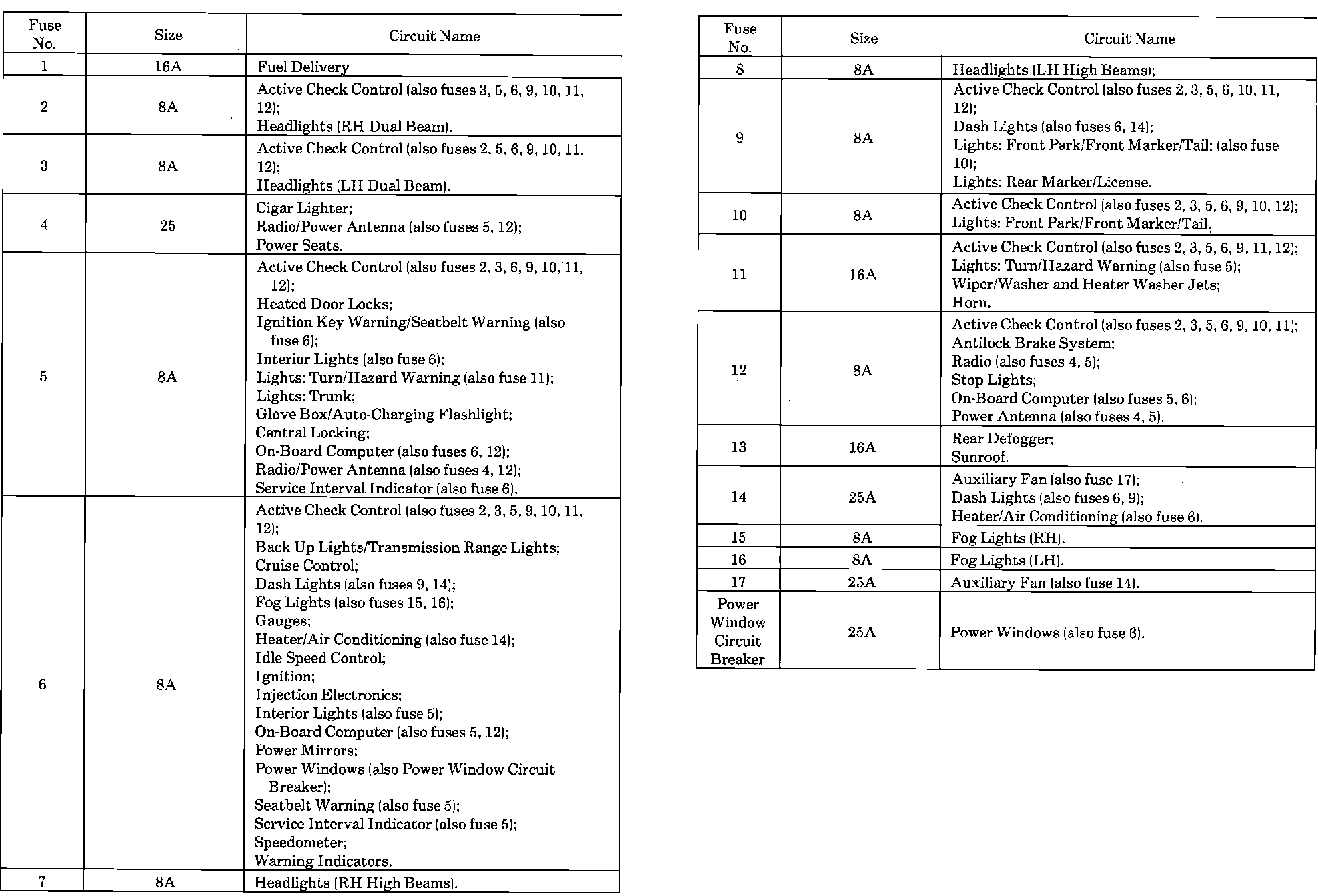

Fuse Assignments:
