Control Assembly Removal

Replacing Heater Controls (Auto A/C)

Remove radio or on-board monitor.

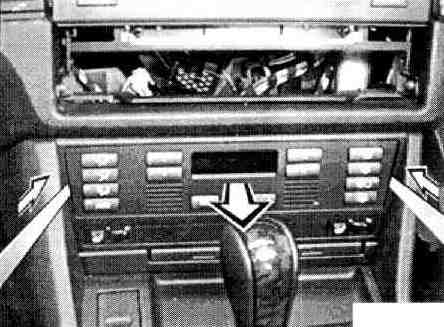

Press out controls through the radio aperture.

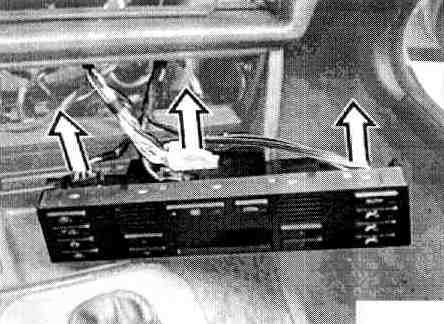

Pull off connectors.

Installation:
After replacing the heater controls, recoding is necessary.
