Home >> BMW >> 2004 >> Z4 (E85) L6-3.0L (M54) >> Repair and Diagnosis >> Heating and Air Conditioning >> Expansion Valve >> Specifications >> Mechanical Specifications

Mechanical Specifications

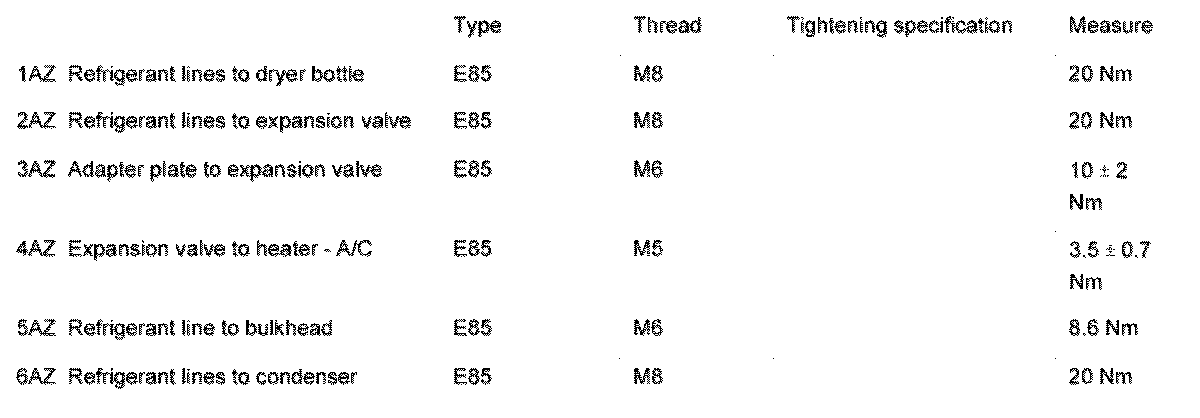

Refrigerant Lines And Expansion Valve
