65 95 ... Removing And Installing/Replacing Intercom System Control Unit (Security)

65 95 ... - Removing and installing/replacing intercom system control unit (Security)





Intercom system control unit is mounted on upper equipment carrier (Security) Overview Of Security Control Units, Luggage Compartment.

Necessary preliminary tasks:
- Remove upper equipment carrier (Security)

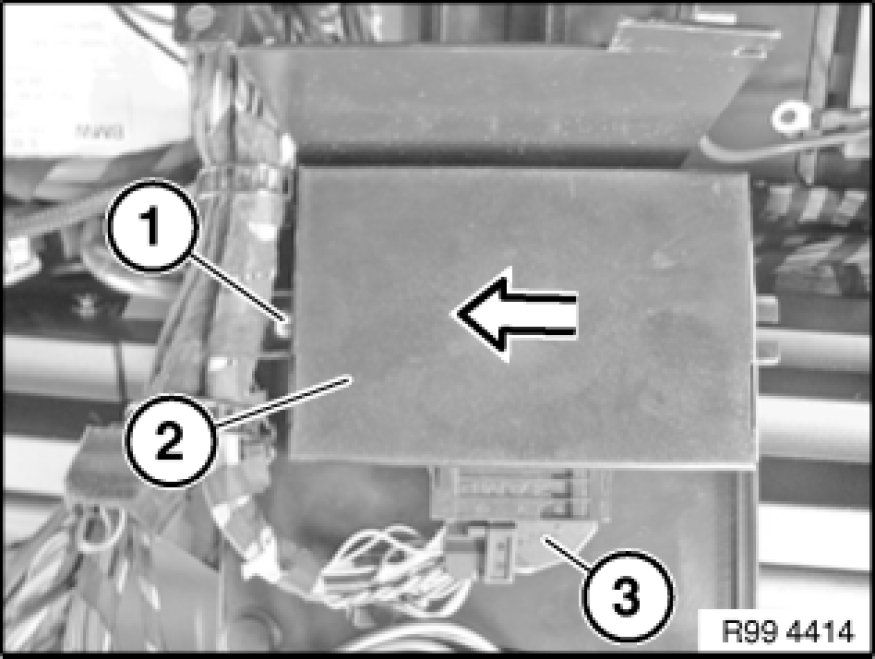

Release screw (1).
Feed out control unit (2) in direction of arrow.
Unfasten plug connection (3) and disconnect.





Installation:
Carry out function check of intercom system.
