Home
>>
Buick
>>
1984
>>
Regal V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Fuel Control
>>
High Altitude Exc. Calif.
High Altitude Exc. Calif.

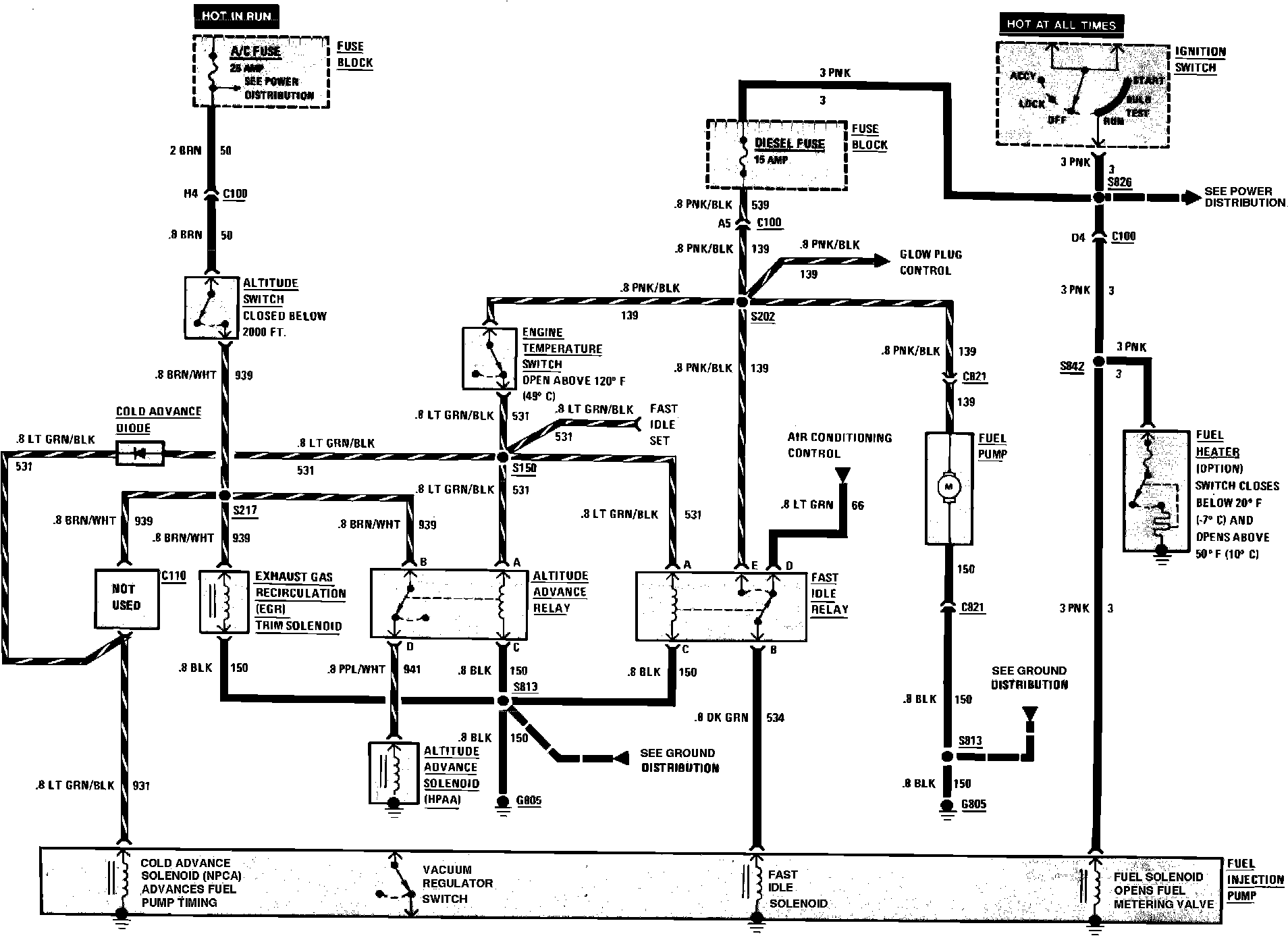

Diesel Engine Fuel Control Wiring Circuit (High Altitude):
