Engine: Specifications

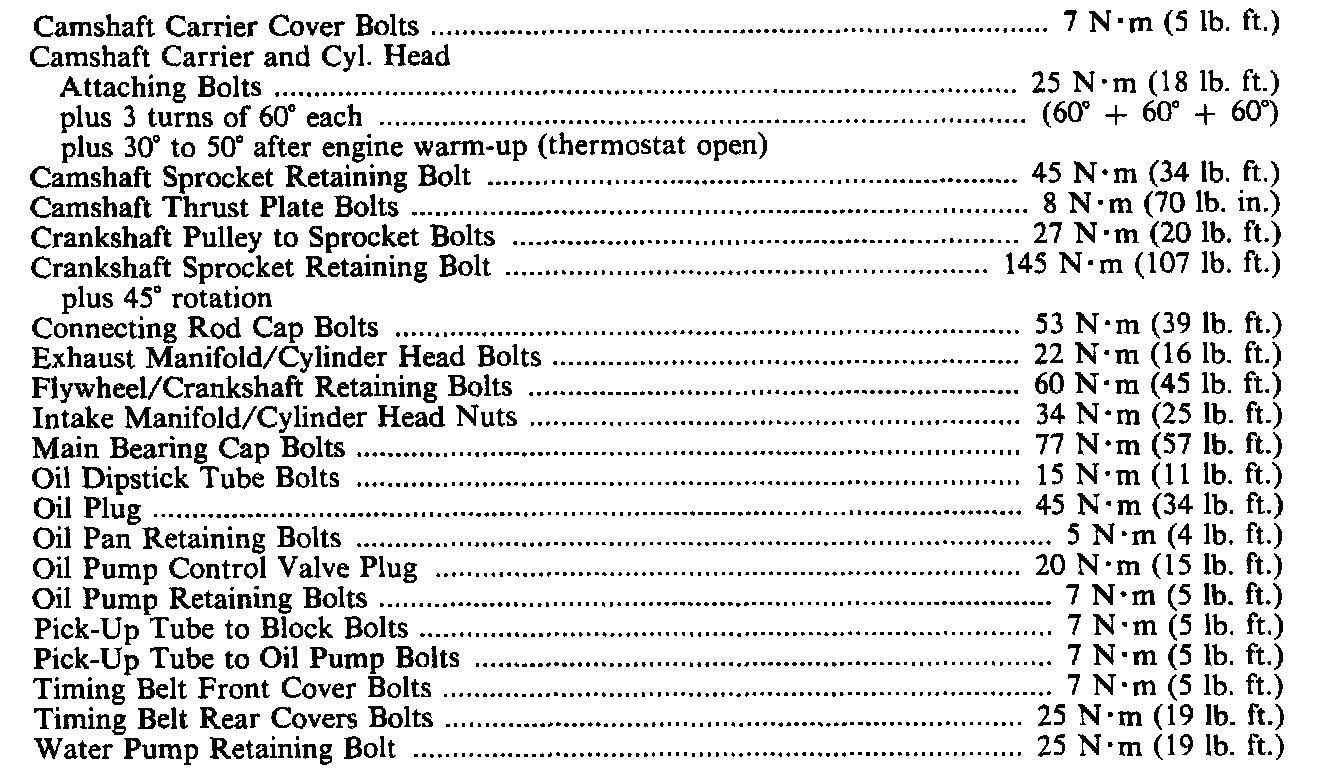

Torque Specifications:

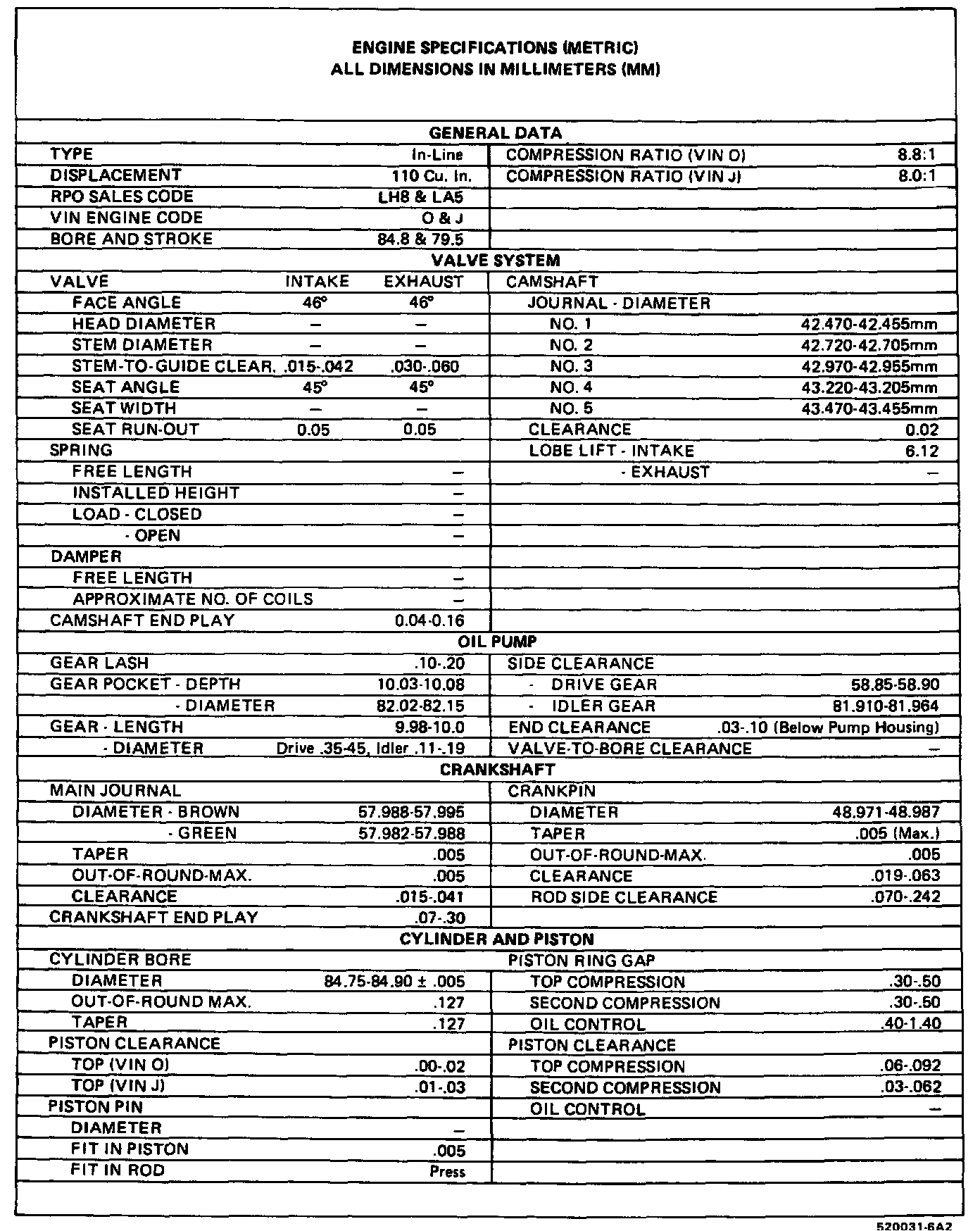

Engine Specifications (METRIC):

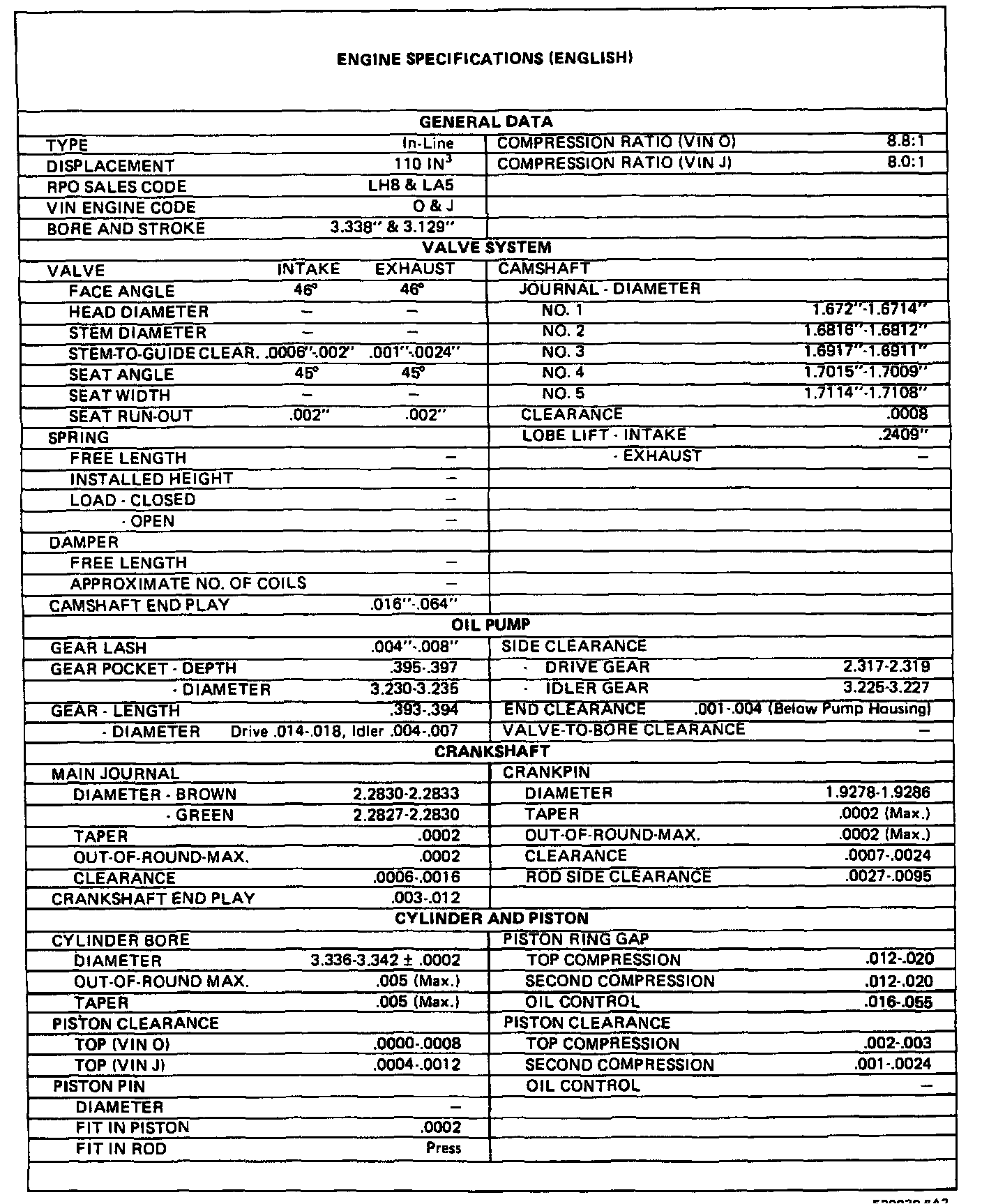

Engine Specifications (INCHES):

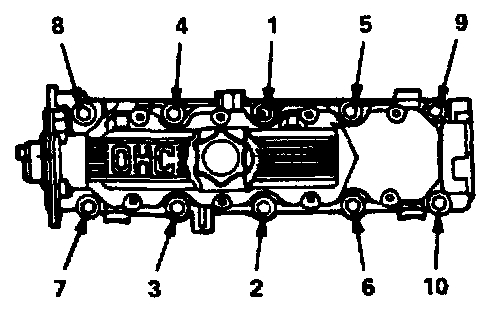

Cylinder Head Torque Sequence:

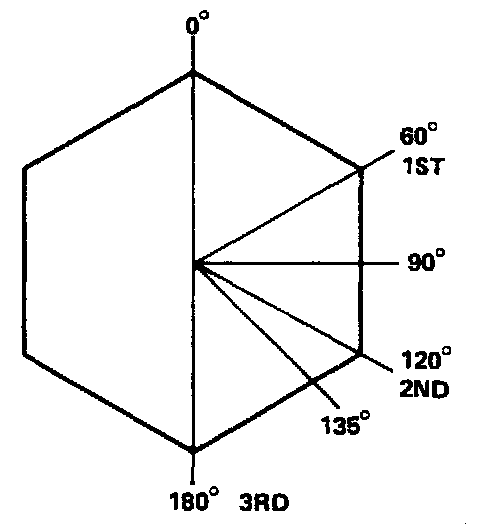

Cylinder Head Torque Degree Chart:
