Buick
>>
1987
>>
Riviera V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
Heated Glass Element

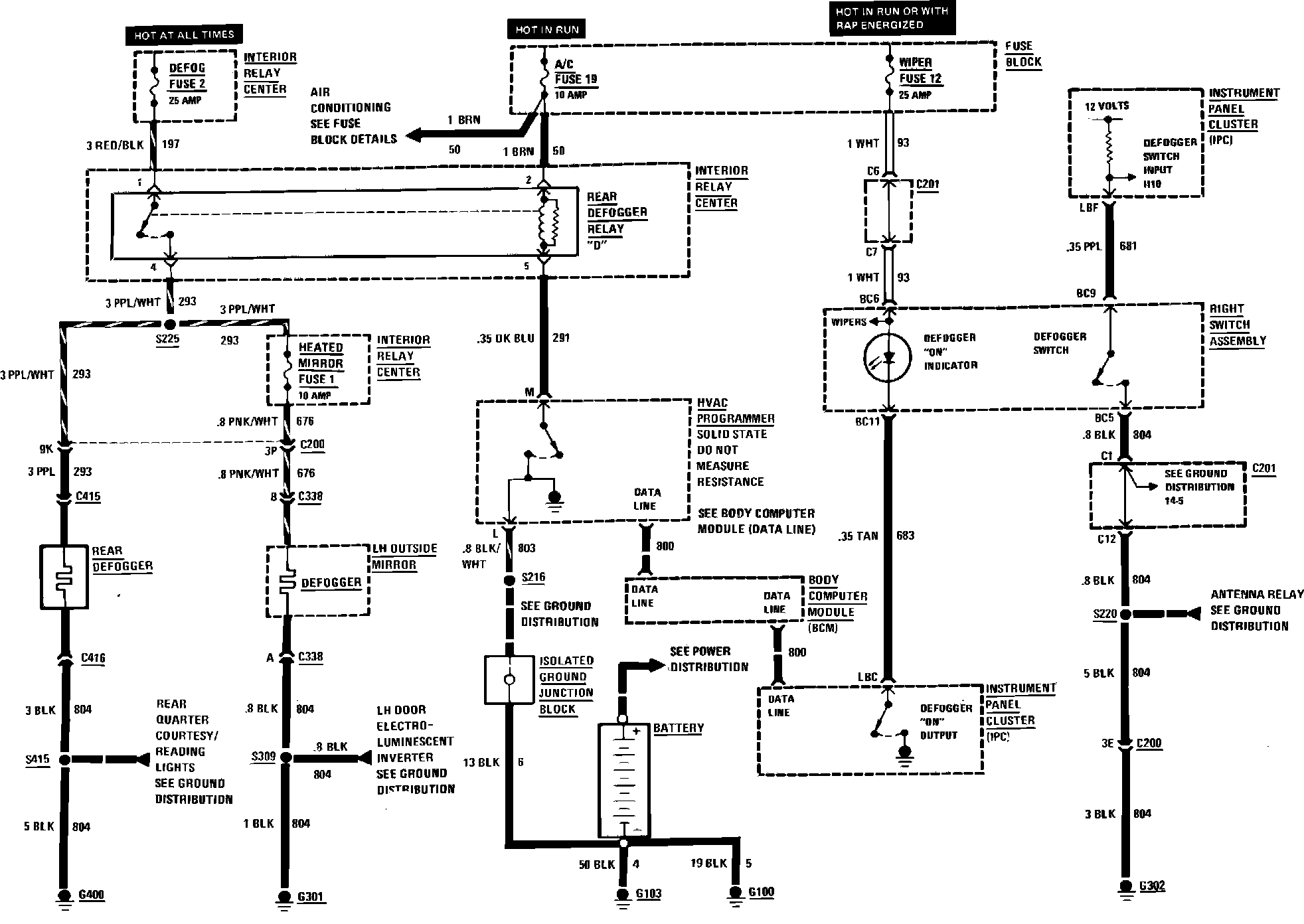

Defogger & LH Power Mirror Wiring Circuit:
