Delco Bose Music System Diode
Delco Bose Music System Diode

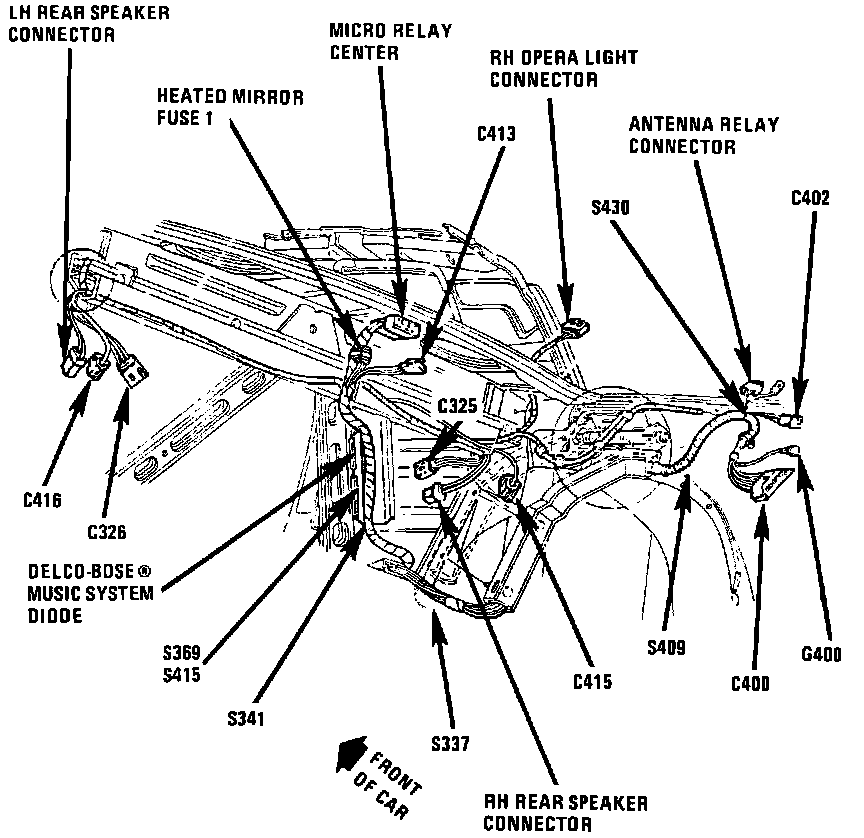

Front Of Luggage Compartment:
In Main Body Harness, At Center Front Of Trunk
Applicable to: 1990 Reatta & Riviera
