Home
>>
Buick
>>
1991
>>
LeSabre V6-231 3.8L VIN C SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>

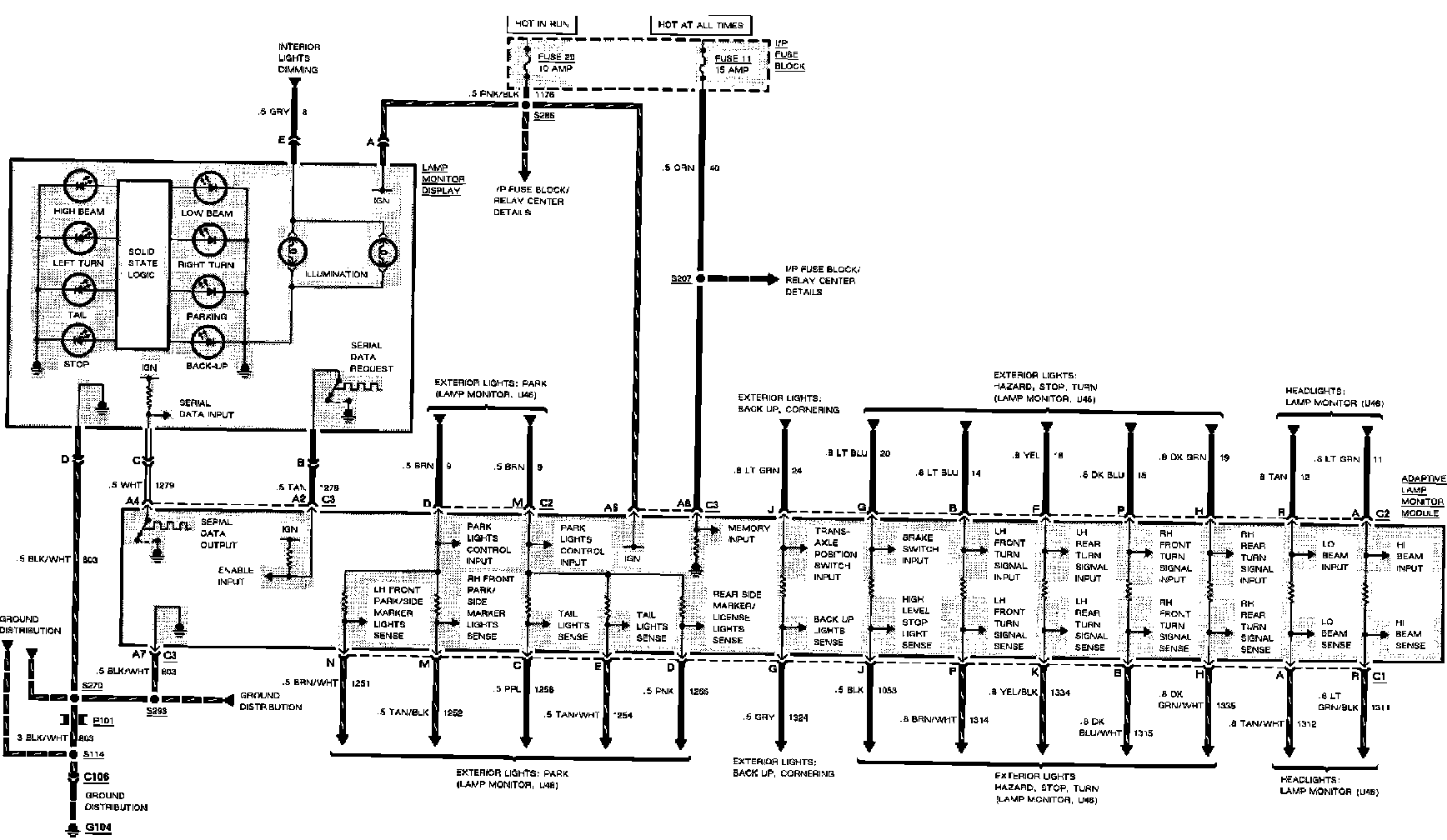

Lamp Control Module
Lamp Control Module
Lamp Monitor:
