4T60 Automatic Transaxle

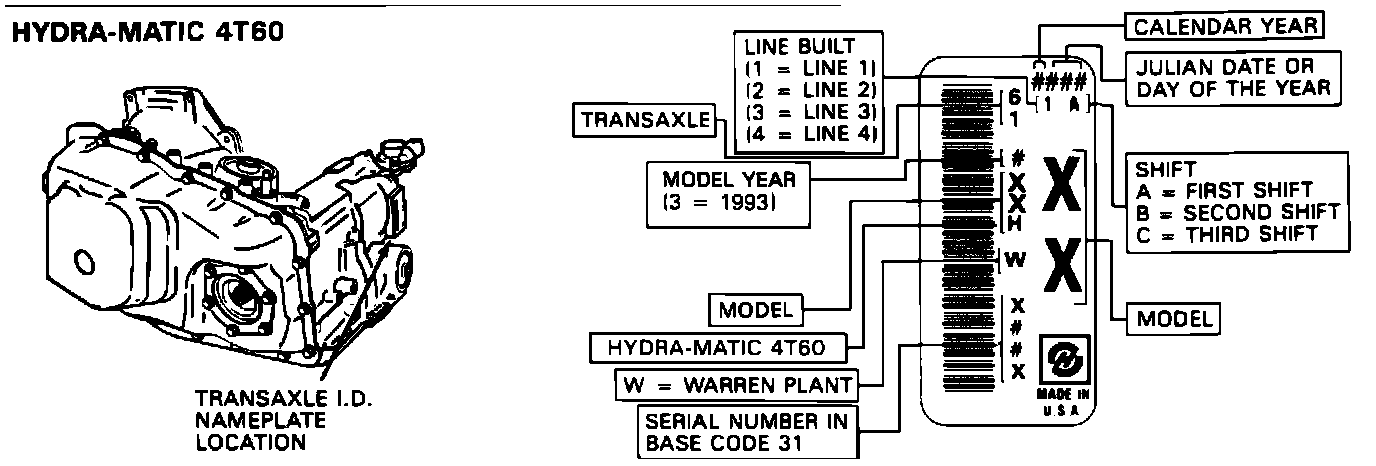

Transmission ID:

Transmission Identification Label: 4T60

Turbo Hydra-Matic 4T60 Automatic Transaxle:

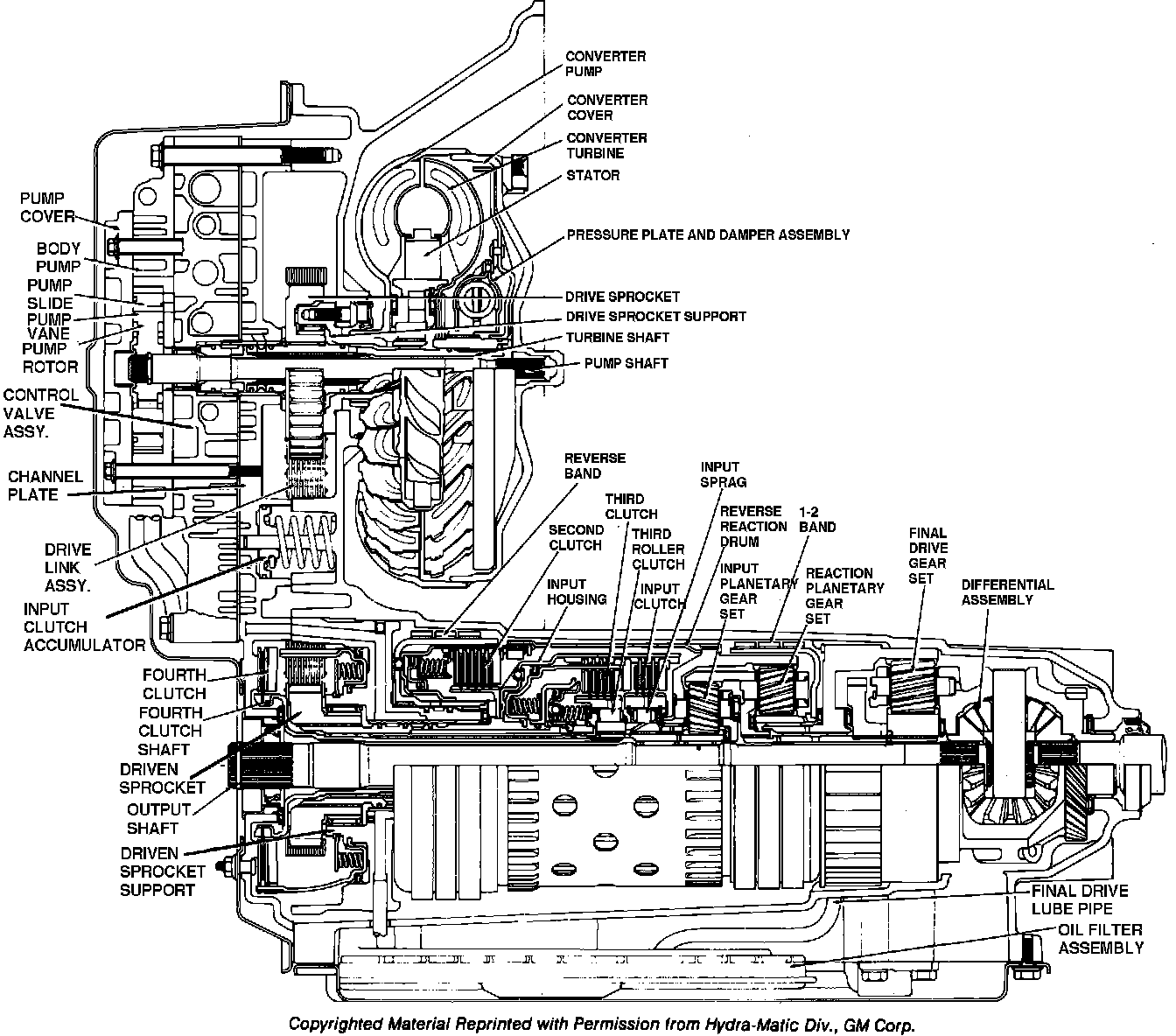

Transmission Cutaway View

Automatic Transmission:


Hydra-Matic 4T60 (ME9)
The Hydra-Matic 4T60 transmission is a fully automatic transmission used in front wheel drive vehicles which provides four forward gear ranges and a reverse.

Shift points are controlled by throttle opening via a throttle cable and a governor circuit.

A Torque converter clutch (TCC) is controlled by a solenoid located inside the transmission assembly. The solenoid is energized by the Electronic Control Module (ECM) through a combination of switches and sensors.

Three oil pressure switches are located inside the transaxle which relay actual gear position to the Engine Control Module (ECM) for use in fuel control and other engine management functions.

Major Components:
^ [1][2]Torque Converter Clutch Assembly
^ Sprocket and drive link assembly
^ 1-2 and reverse band assemblies
^ Input, 3rd, 2nd, and 4th clutches - multiple disc assemblies
^ Input sprag and 3rd roller clutch
^ Compound planetary gear set
^ Differential and final drive assembly
