Ignition Controls

Electronic Ignition System:

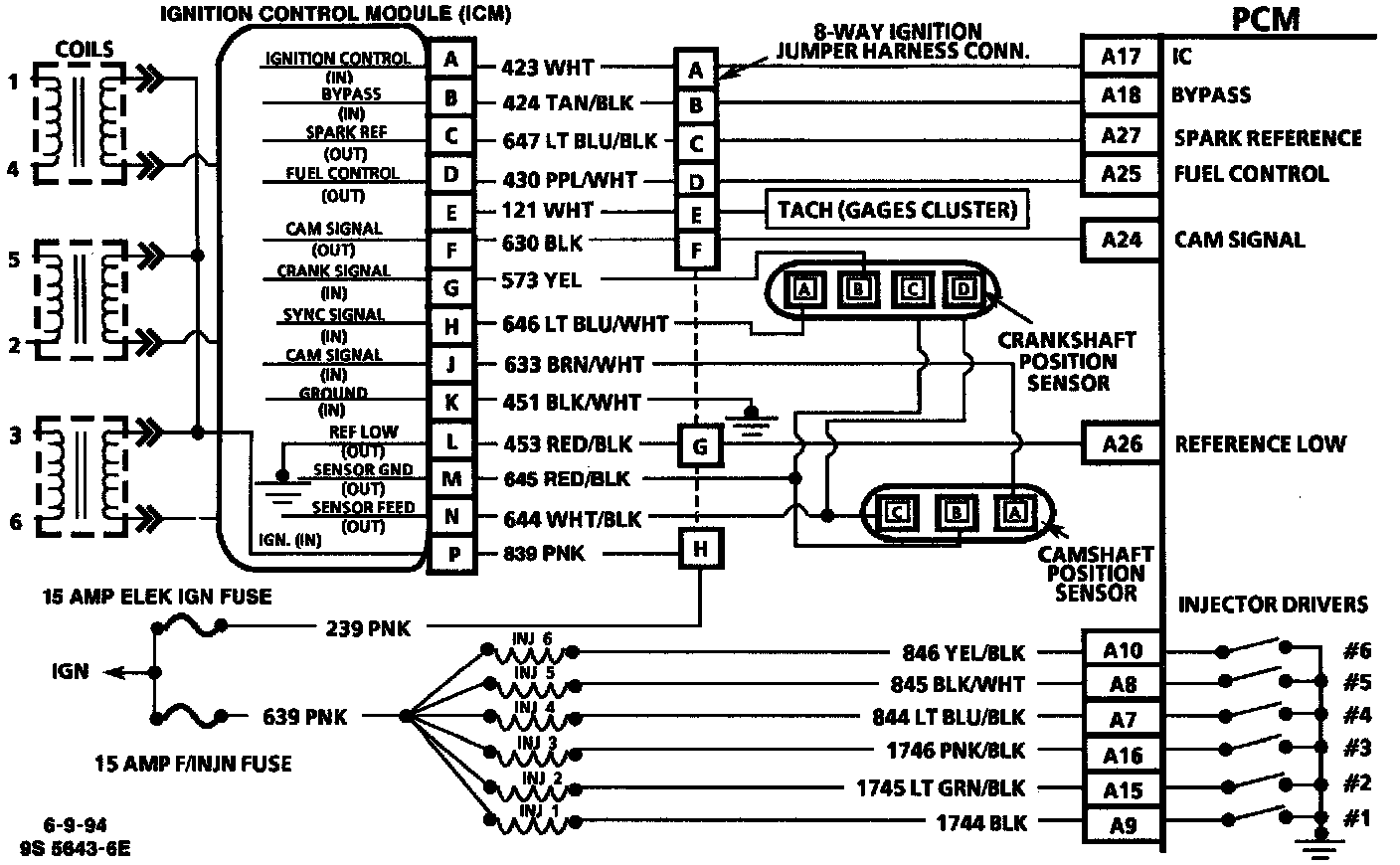

System Schematic:

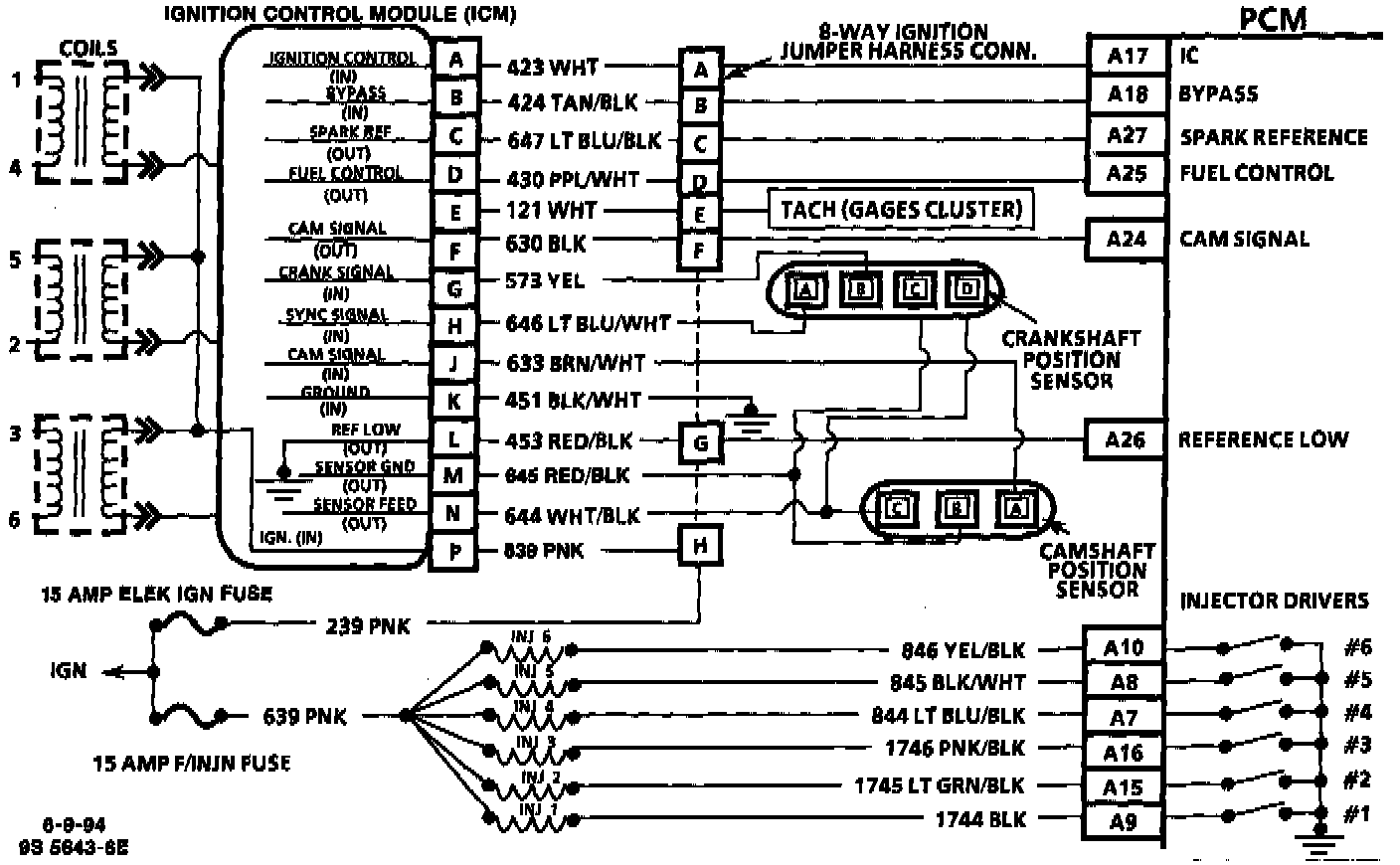

Ignition Control Module Circuit:

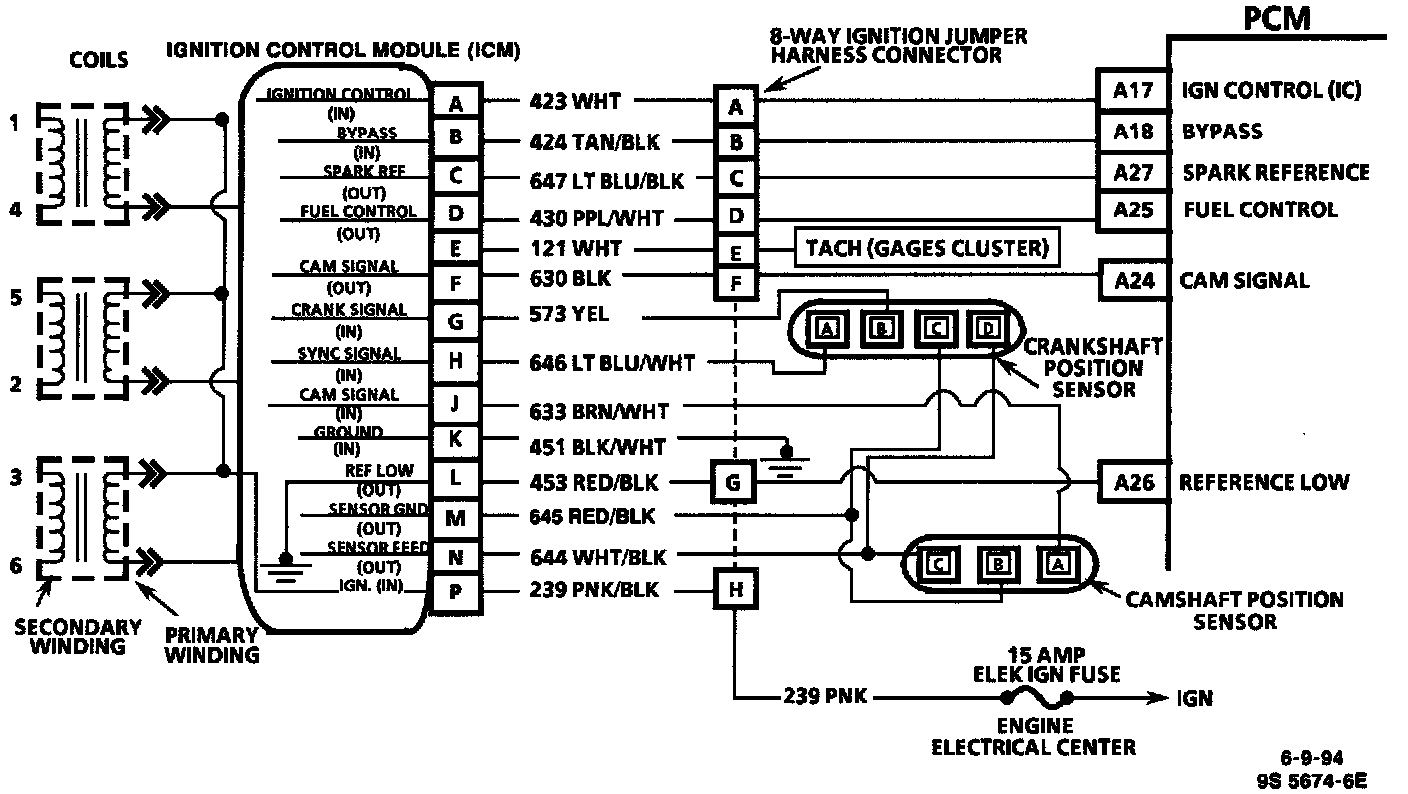

System Schematic:
