Pictoral Views

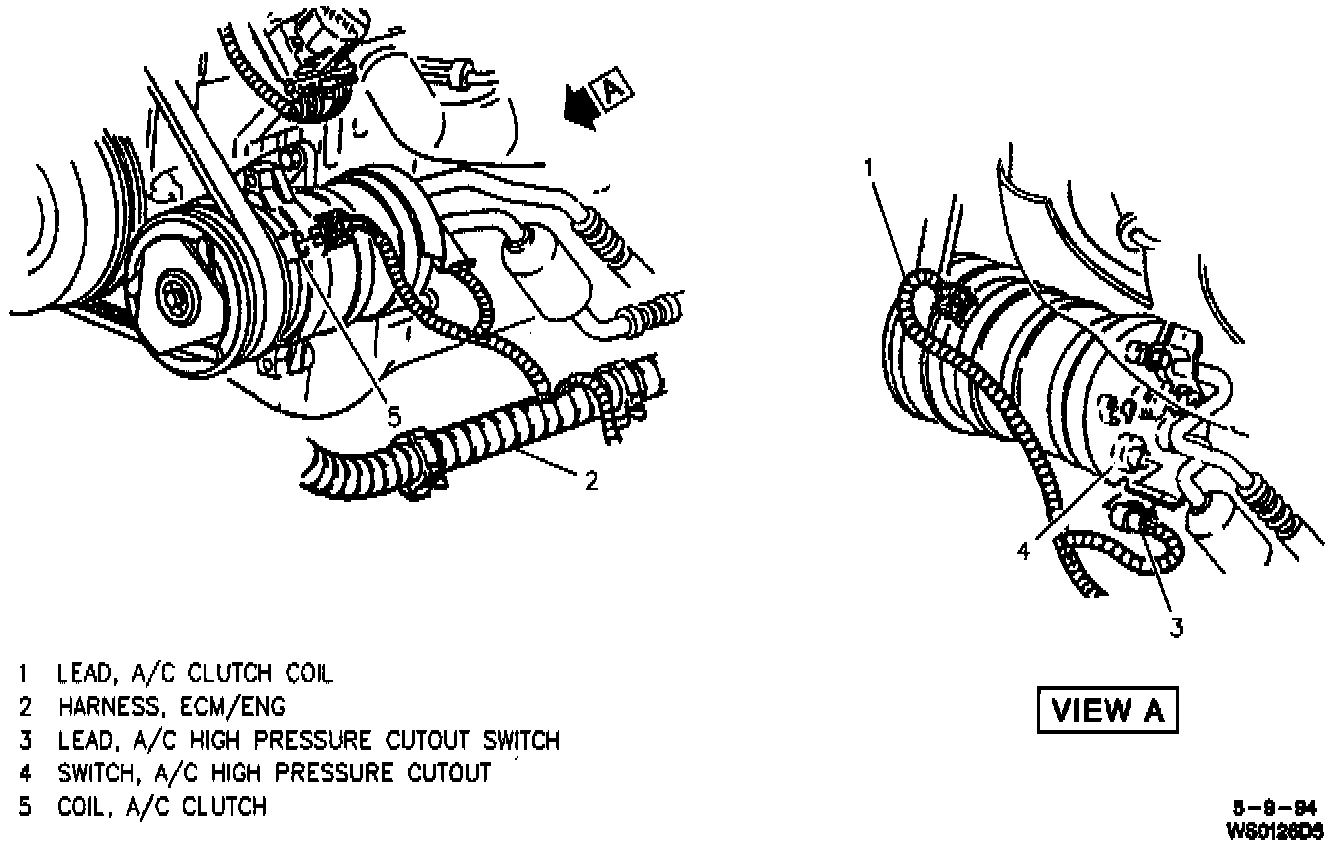

Engine Wiring Harness Assembly:

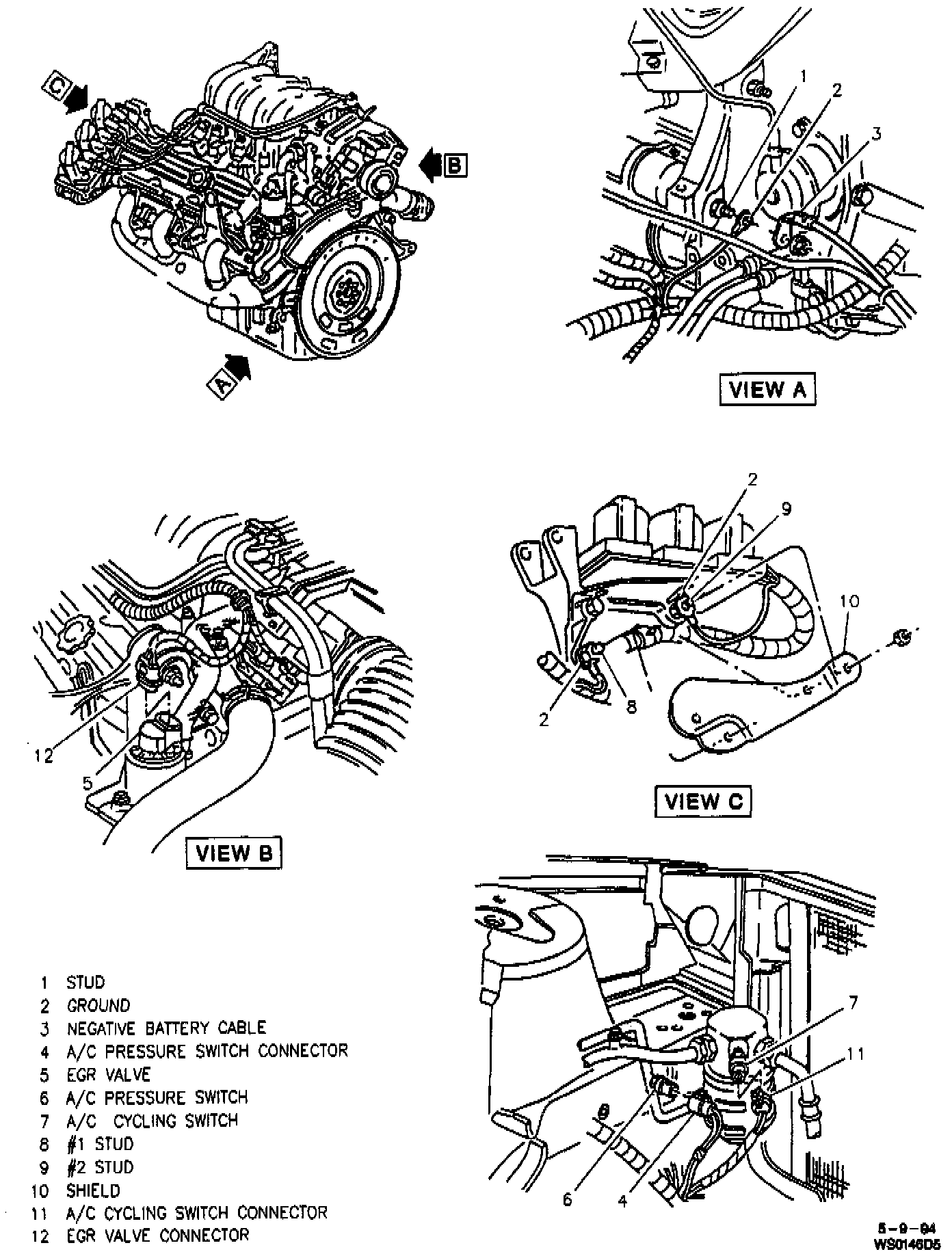

Engine Wiring:

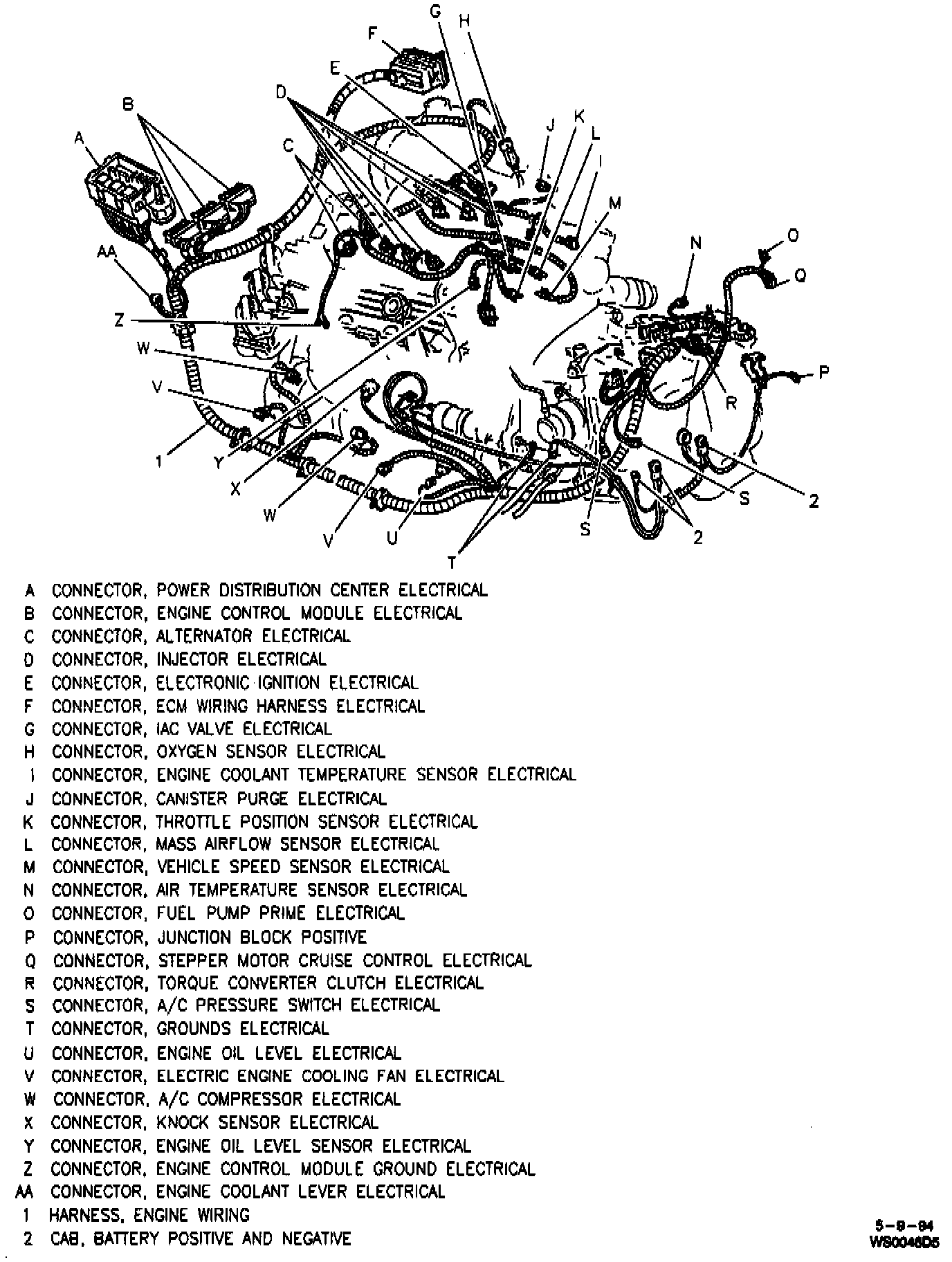

Engine Wiring:

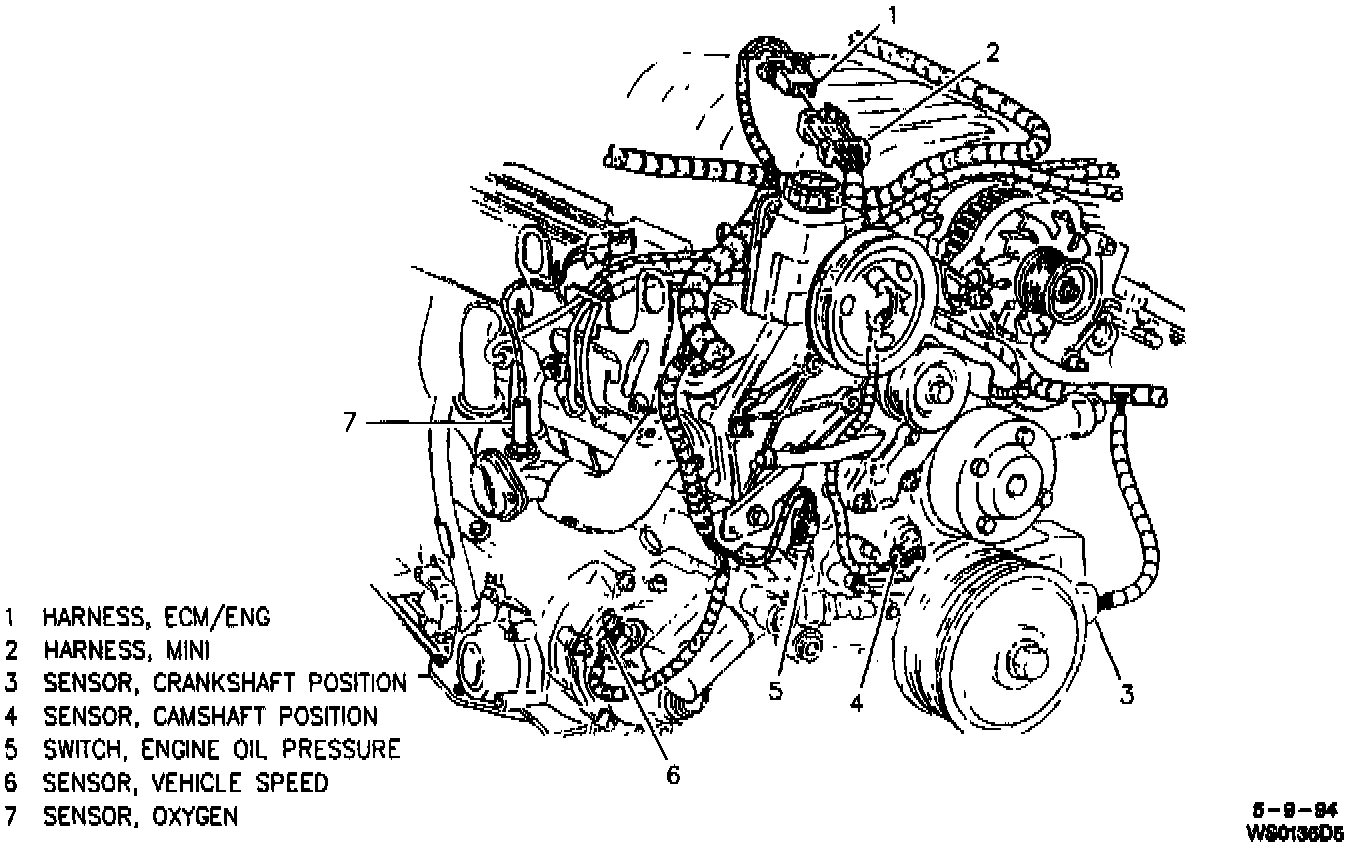

Engine Wiring:

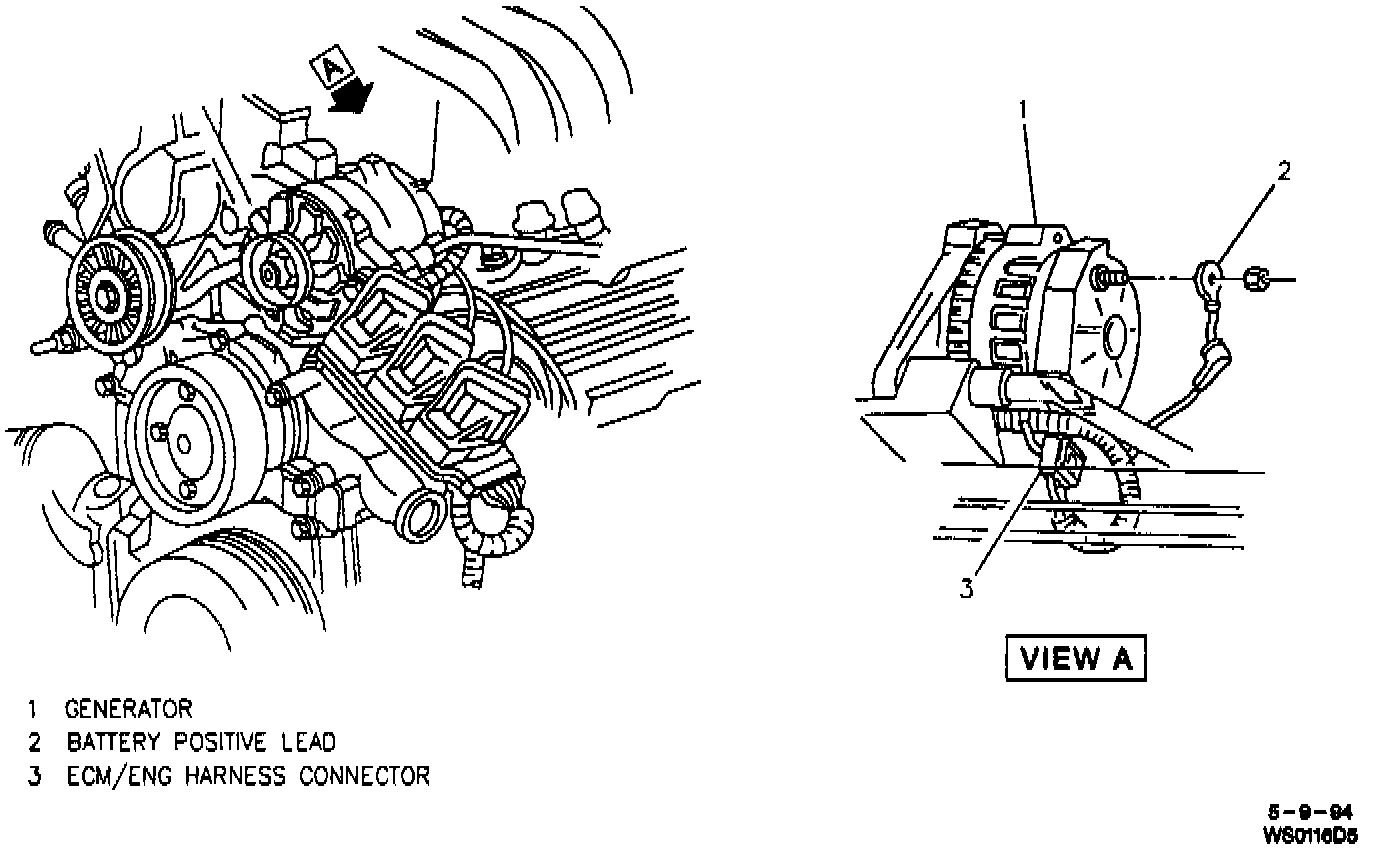

Engine Wiring:
