Electrical Diagrams

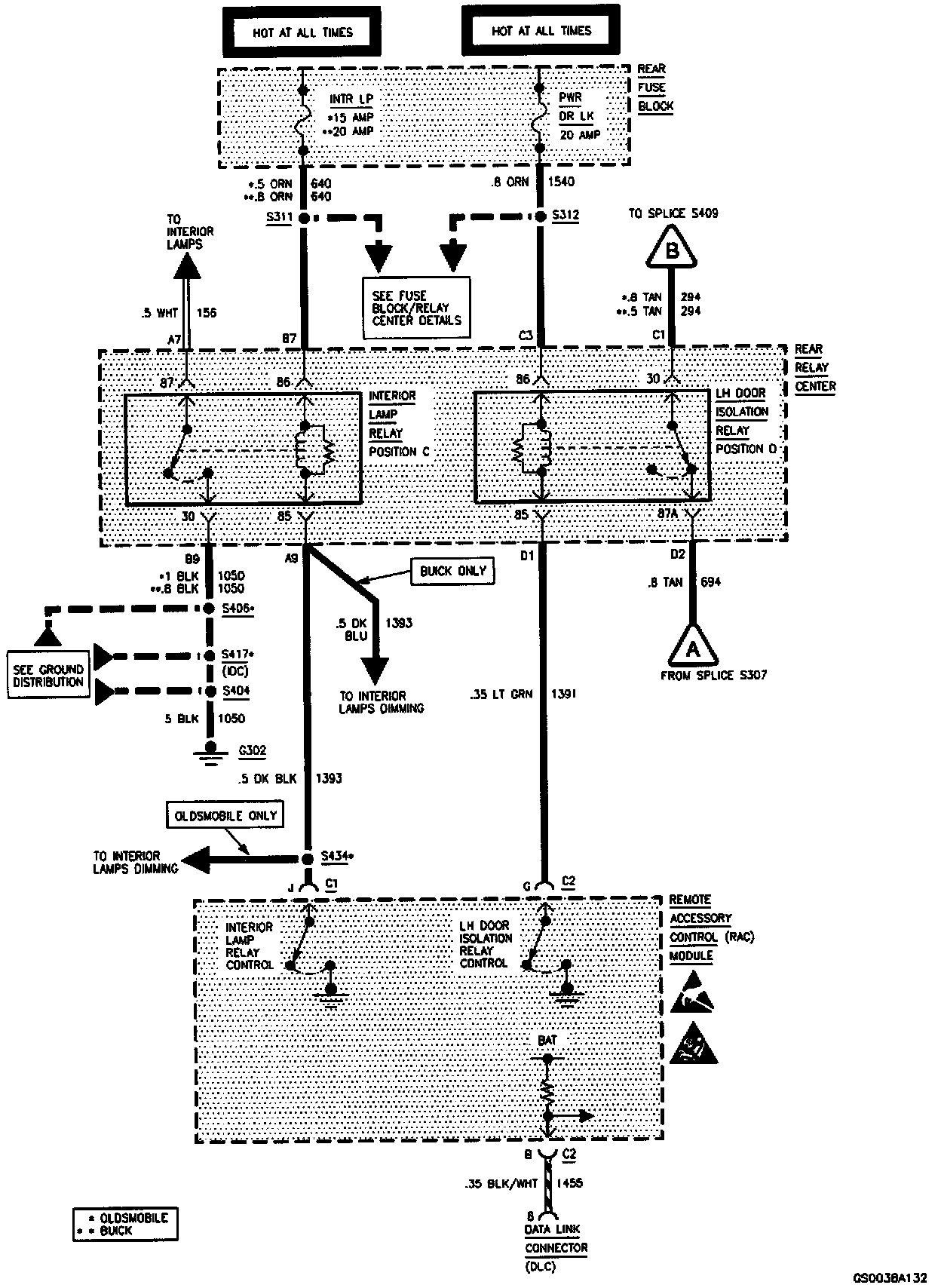

Remote Keyless Entry (T2T):

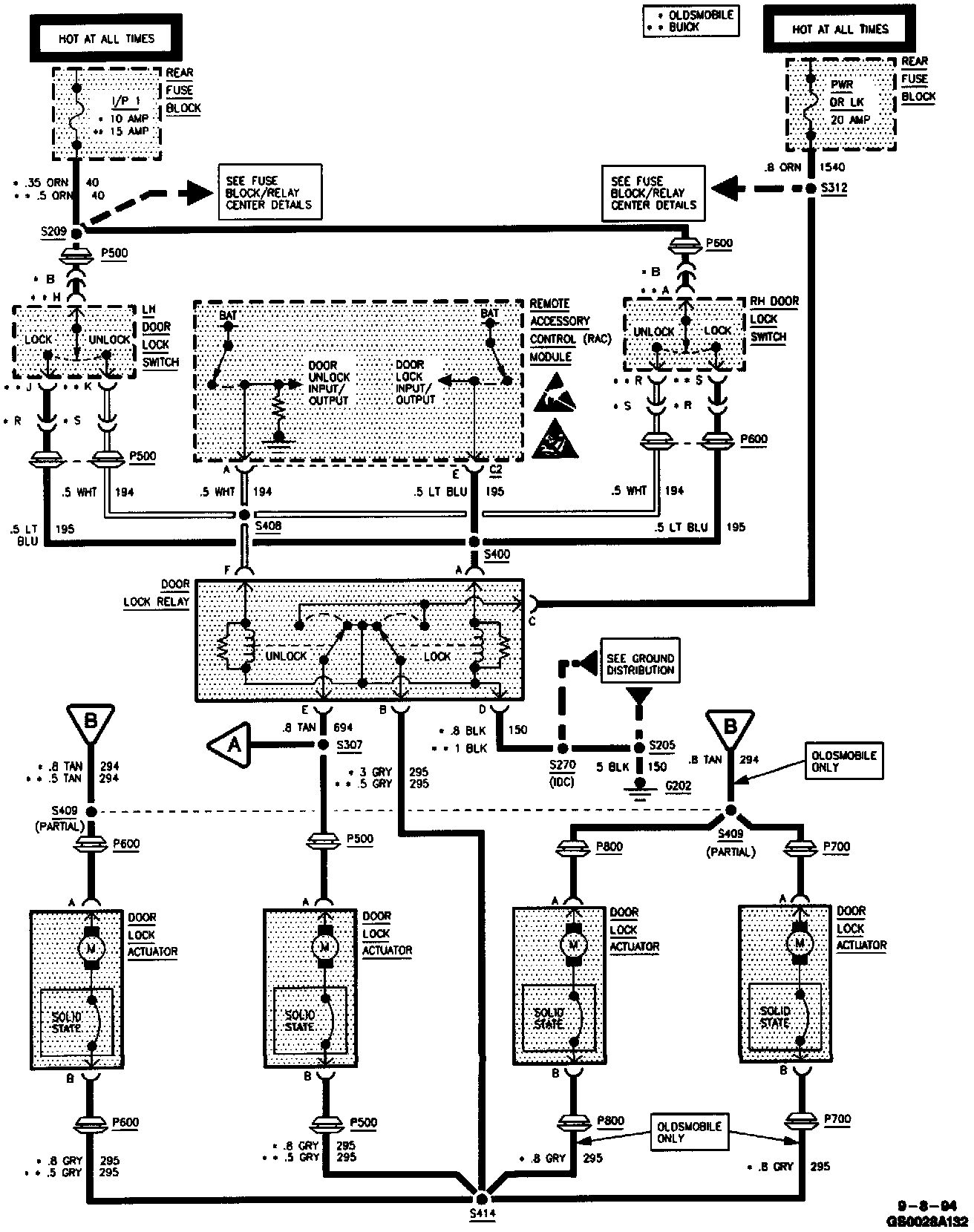

Remote Keyless Entry (T2T):




Remote Keyless Entry (T2T):
