Vehicle Speed Sensor/Transducer - Cruise Control
Vehicle Speed Sensor/Transducer - Cruise Control

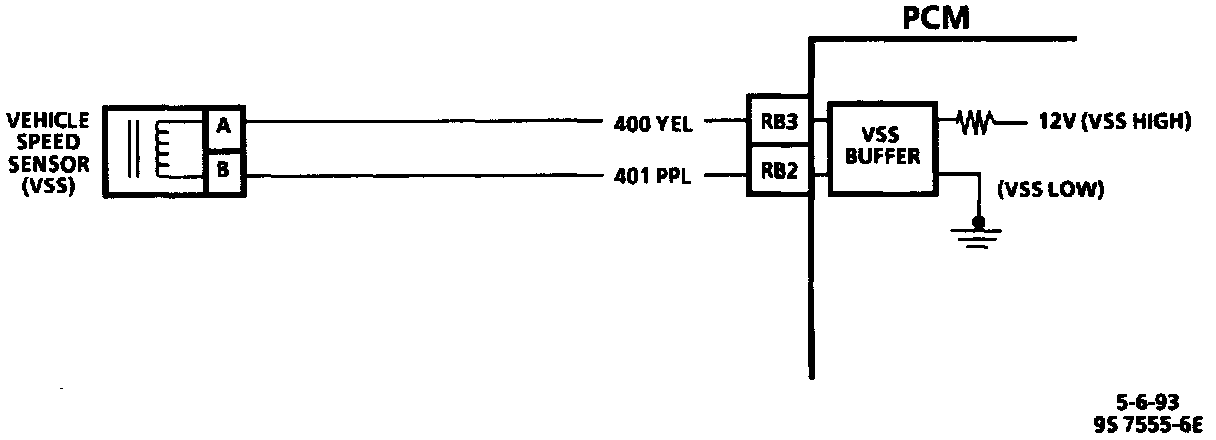

Vehicle Speed Sensor (VSS) Circuit:
