Home >> Buick >> 1996 >> Regal V6-3.8L VIN K >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> IAC Valve, Trans Range

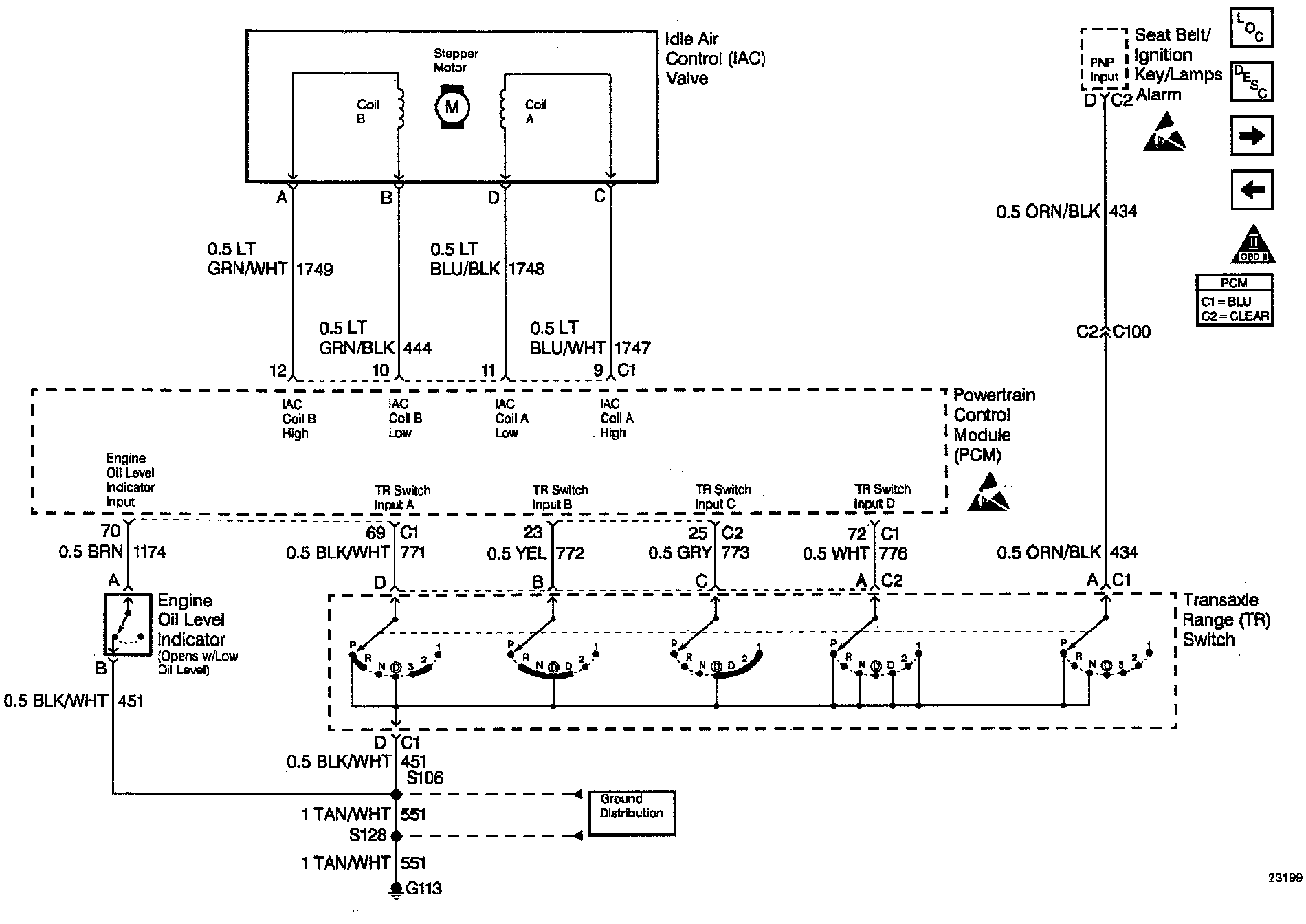

IAC Valve, Trans Range

Engine Controls (IAC Valve, Trans Range):
