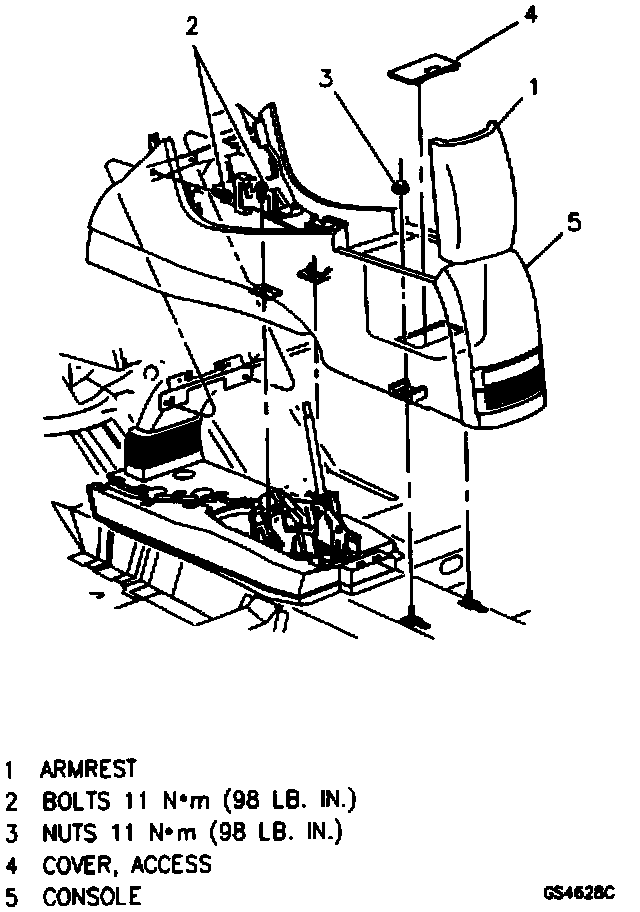

Console Replacement

Description:

Remove or Disconnect
1. Shifter trim plate.
2. Nuts (3), bolts (2).
3. Electrical connectors from console.
4. Console (5)

Install or Connect
1. Console (5) to vehicle.
2. Electrical connectors to console.
3. Nuts (3), bolts (2).
4. Shifter trim plate.
