Operation CHARM
: Car repair manuals for everyone.
Home
>>
Buick
>>
1997
>>
Riviera V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Transmission Control Systems
>>
Diagrams
>>
Connector Views
>>

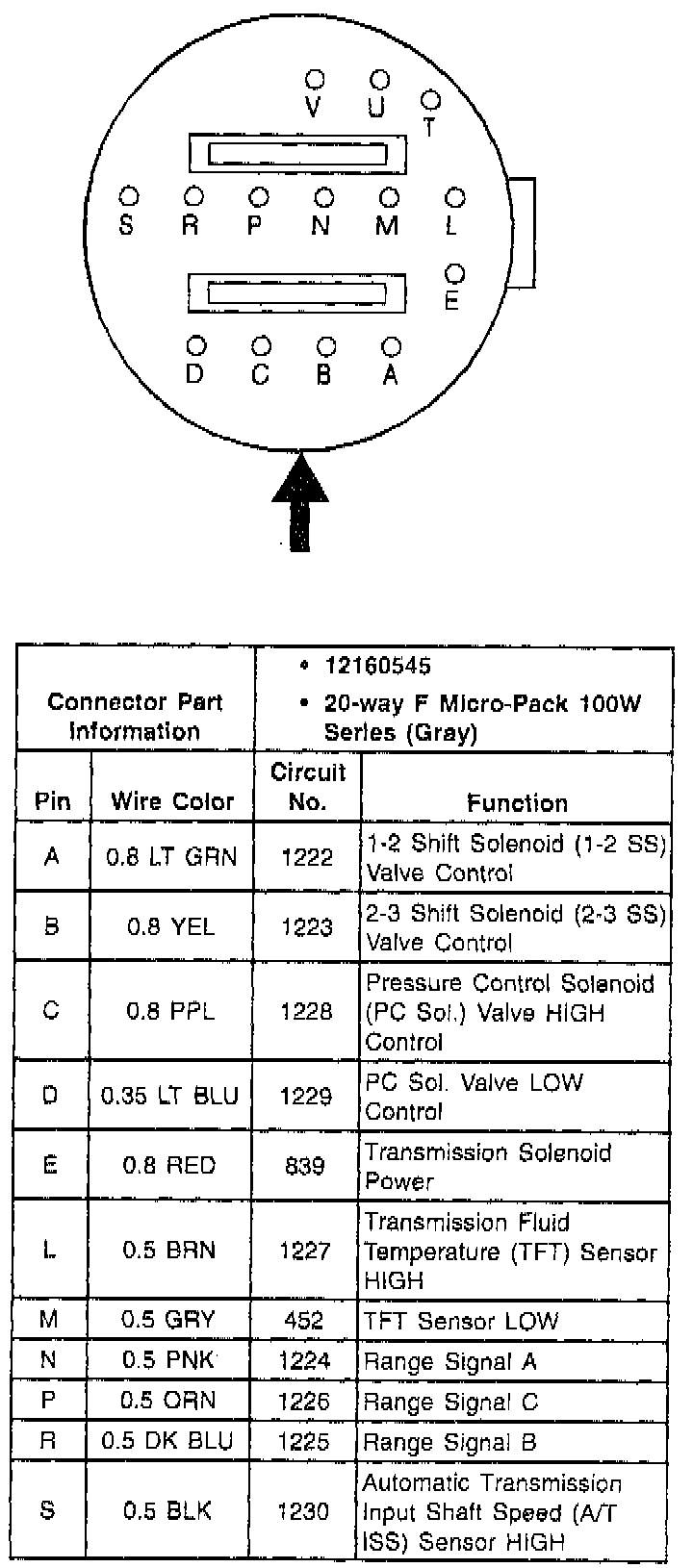

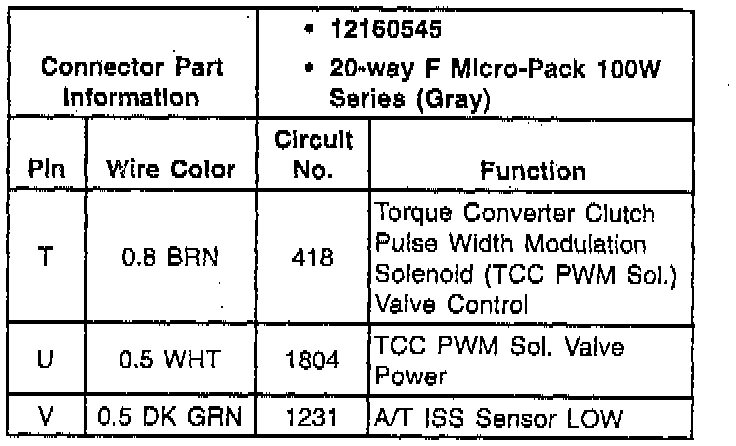

C100 Connector - Transaxle Harness Side
C100 Connector - Transaxle Harness Side
