Home >> Buick >> 1997 >> Riviera V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> Compressor Controls: Automatic

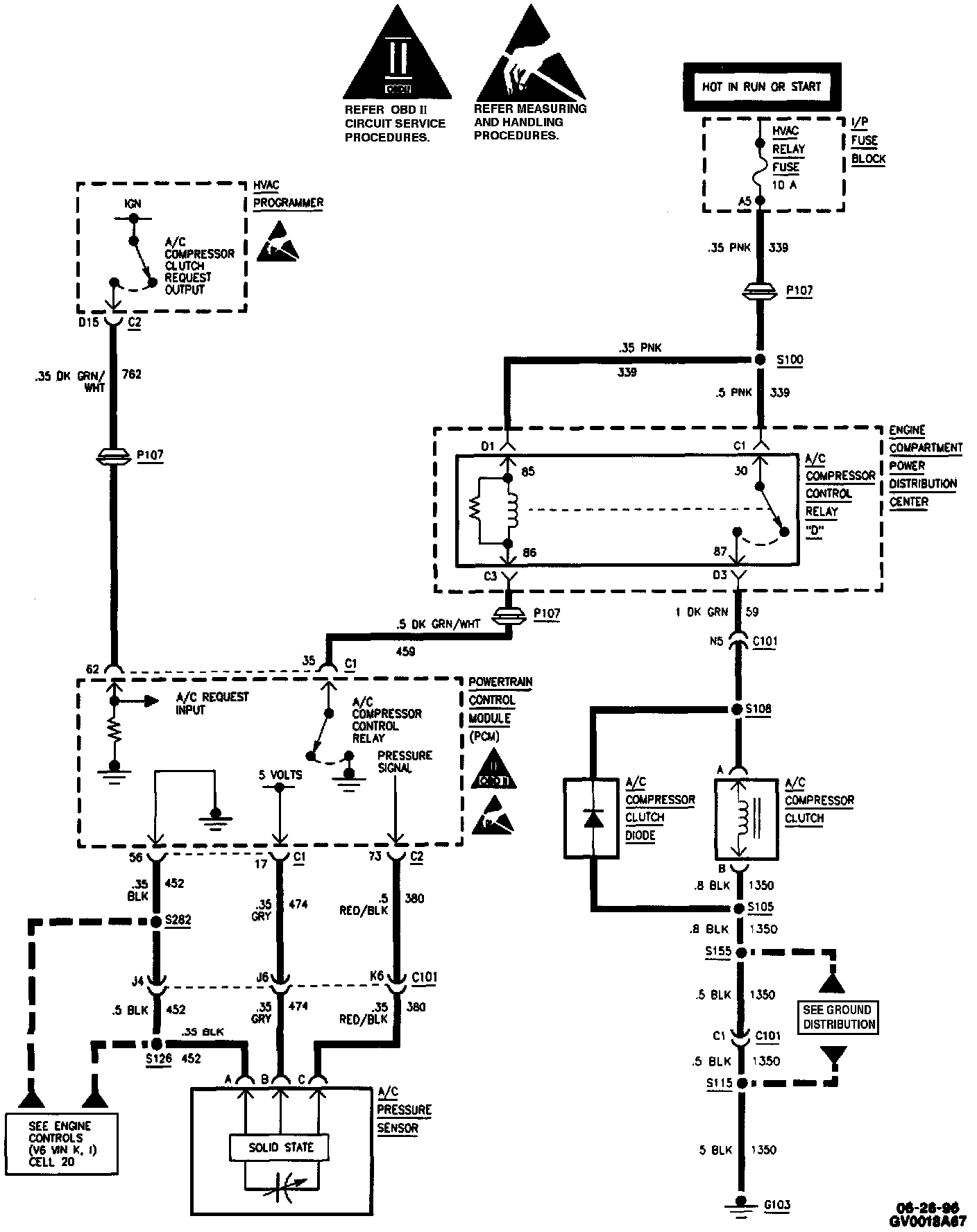

Compressor Controls: Automatic

Compressor Controls: Automatic:
