Installation Procedure

Description:

IMPORTANT: Verify that the release lever at the top of the bracket is in the full up position.

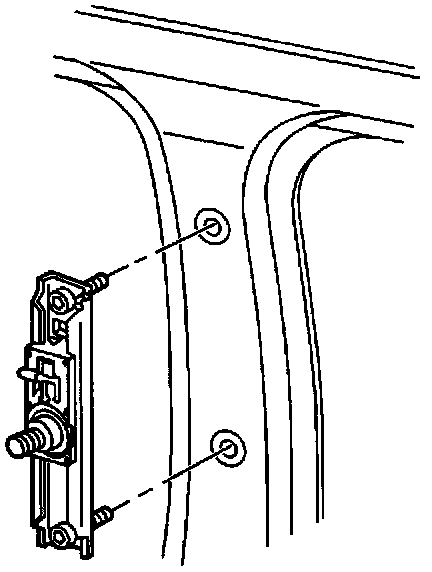

1. Position shoulder belt guide adjuster bracket to the center pillar.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the shoulder belt guide belt adjuster bracket bolts.
Tighten
Tighten the shoulder belt guide adjuster bracket bolts to 42 N.m (31 lb. ft).
3. Install the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel in Doors.
