Heat Shield: Service and Repair

REMOVAL PROCEDURE





1. Raise and suitably support the vehicle.
2. Remove the three way catalytic converter.

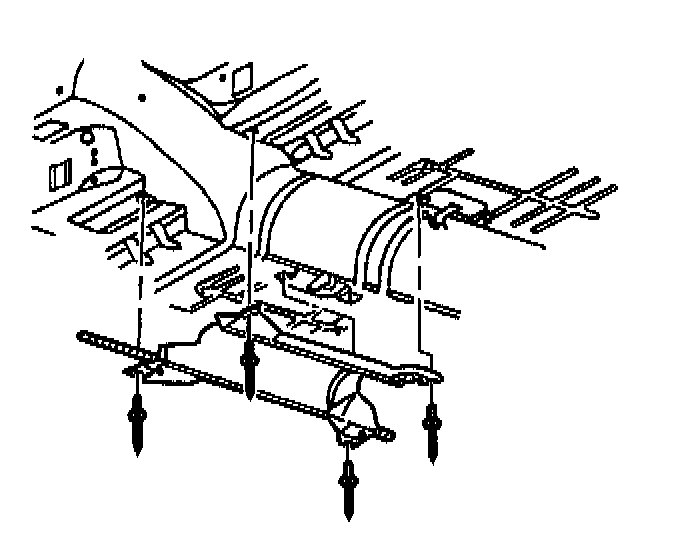

3. Remove the pop rivets and the catalytic converter heat shield.

INSTALLATION PROCEDURE

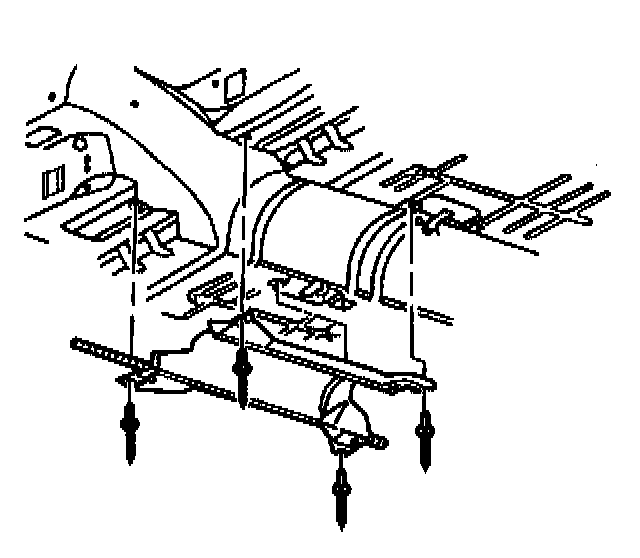

1. Install the catalytic converter heat shield with new rivets.
2. Install the three way catalytic converter.
3. Lower the vehicle.
