Console Replacement

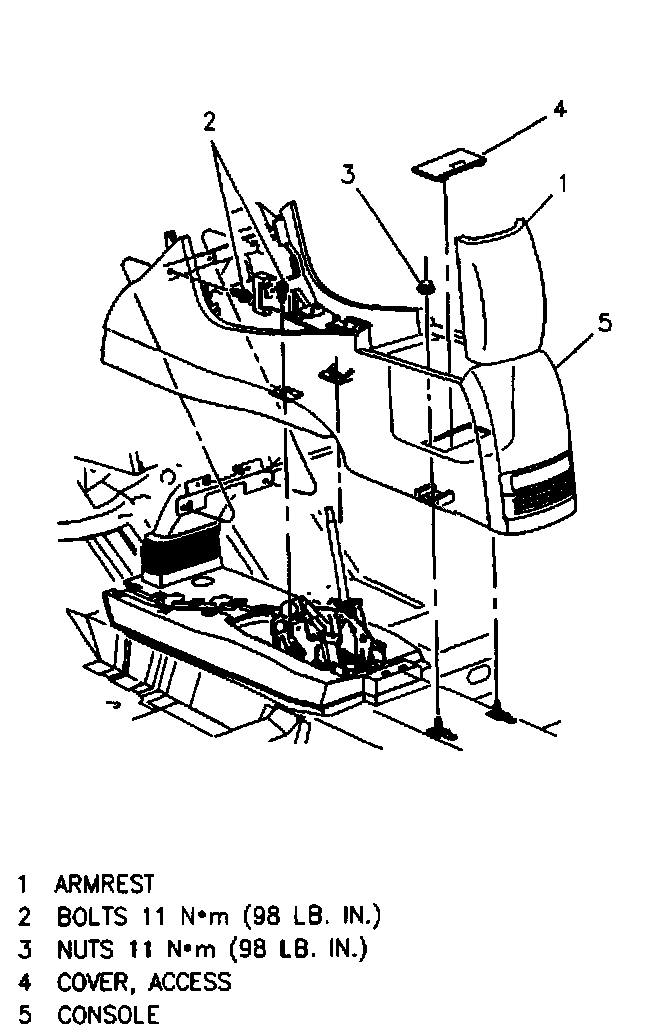

Console Assembly:

REMOVE OR DISCONNECT
1. Shifter trim plate.
2. Nuts (3), bolts (2).
3. Electrical connectors from console.
4. Console (5).

INSTALL OR CONNECT
1. Console (5) to vehicle.
2. Electrical connectors to console.
3. Nuts (3) and bolts (2).
4. Shifter trim plate.
